NLP121

Toyota VERSO · 2010 · 3,478 parts · 222 categories
NLP121 ×

← Back to categories

3,478 items

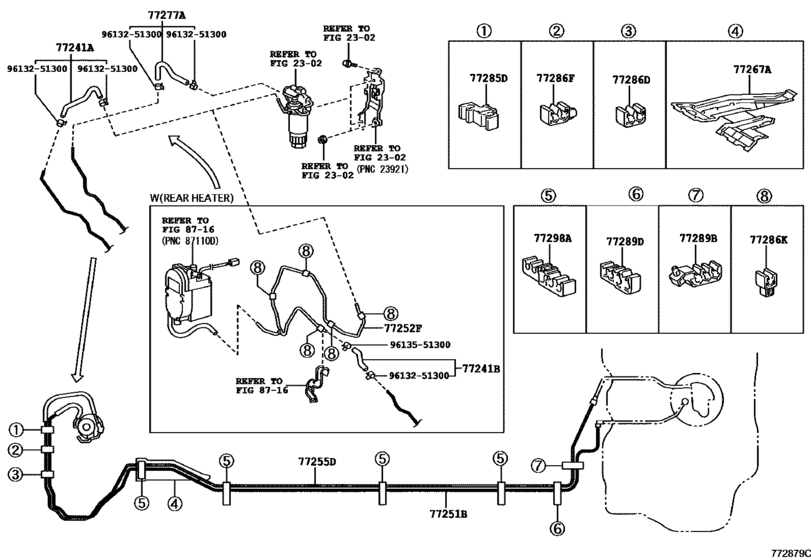

Fuel Tank & Tube ([11.2010 - ] FUEL TUBE (1011- )NLP121) 18
#OEMPart name
77241 77409-52010 Hose, Fuel, No.1 (For Main Tube, No.1)
77241 77049-52020 Hose, Fuel, No.2 (For Main Tube, No.1)
77251 77251-52330 Tube, Fuel Main
77251 77251-52410 Tube, Fuel Main
77252 77252-52050 Tube, Fuel Main, Rear
77255 77255-52080 Tube, Fuel Return
77255 77255-52090 Tube, Fuel Return
77267 77267-52050 Protector, Fuel Tube, No.2
77277 23802-33050 Hose, Fuel, No.1(For Return Tube, No.1)
77285 77285-52120 Clamp, Fuel Tube, No.1
77286 77286-52100 Clamp, Fuel Tube, No.2
77286 77286-52130 Clamp, Fuel Tube, No.2
77286 77286-52110 Clamp, Fuel Tube, No.2
77289 77289-52060 Clamp, Fuel Tube, No.3
77289 77299-52070 Clamp, Fuel Tube, No.5
77298 77298-52070 Clamp, Fuel Tube, No.3
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
9613551300 96135-51300 Clamp, Hose
Source
Public OEM parts-catalog data
Variants
2 / 3
Category
222
Collected
2026-08-04
