NLP115

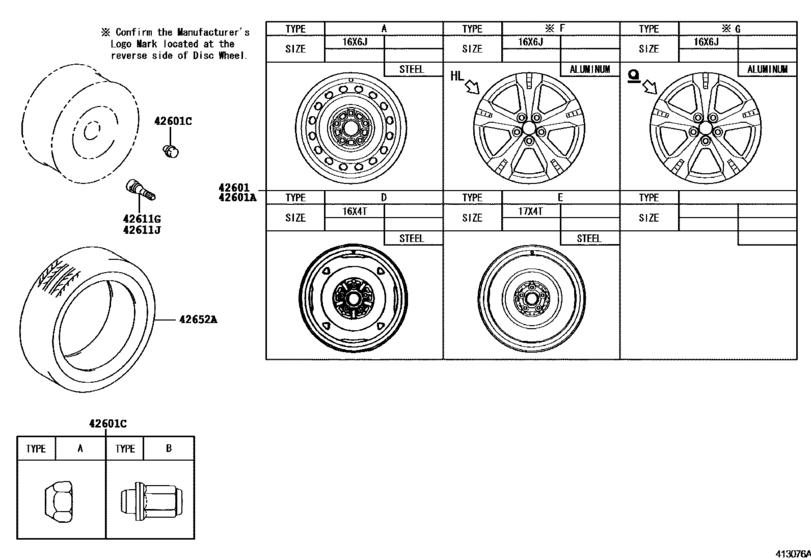

Disc Wheel & Wheel Cap ([01.2009 - ] (0901- )) 11
| # | OEM | Part name |
|---|---|---|
| 42601 | 42611-52620 | Wheel, Disc |
| 42601 | 42611-52660 | Wheel, Disc |
| 42601 | 42611-52670 | Wheel, Disc |
| 42601 | 42611-21150 | Wheel, Disc (For Spare) |
| 42601 | 42611-21290 | Wheel, Disc (For Spare) |
| 42601 | 90942-01007 | Nut, Hub (For Axle) |
| 42601 | 90942-01033 | Nut, Hub (For Axle) |
| 42603 | 42603-52110 | Ornament Sub-Assy, Wheel Hub |
| 42611 | 90942-05009 | Valve (For Tubeless Tire) |
| 42611 | 90080-94031 | Valve (For Tubeless Tire) |
| 42621 | 42602-52360 | Cap, Wheel |
| OEM | Part name | Category |
|---|---|---|
| 42602-52360 | Cap, Wheel | Disc Wheel & Wheel Cap ([01.2009 - ] (0901- )) |
| 42603-52110 | Ornament Sub-Assy, Wheel Hub | Disc Wheel & Wheel Cap ([01.2009 - ] (0901- )) |
| 42611-21150 | Wheel, Disc (For Spare) | Disc Wheel & Wheel Cap ([01.2009 - ] (0901- )) |
| 42611-21290 | Wheel, Disc (For Spare) | Disc Wheel & Wheel Cap ([01.2009 - ] (0901- )) |
| 42611-52620 | Wheel, Disc | Disc Wheel & Wheel Cap ([01.2009 - ] (0901- )) |
| 42611-52660 | Wheel, Disc | Disc Wheel & Wheel Cap ([01.2009 - ] (0901- )) |
| 42611-52670 | Wheel, Disc | Disc Wheel & Wheel Cap ([01.2009 - ] (0901- )) |
| 90080-94031 | Valve (For Tubeless Tire) | Disc Wheel & Wheel Cap ([01.2009 - ] (0901- )) |
| 90942-01007 | Nut, Hub (For Axle) | Disc Wheel & Wheel Cap ([01.2009 - ] (0901- )) |
| 90942-01033 | Nut, Hub (For Axle) | Disc Wheel & Wheel Cap ([01.2009 - ] (0901- )) |
| 90942-05009 | Valve (For Tubeless Tire) | Disc Wheel & Wheel Cap ([01.2009 - ] (0901- )) |
