NLP110

Toyota URBAN-CRUISER · 2009 · 3,395 parts · 179 categories

3,395 items

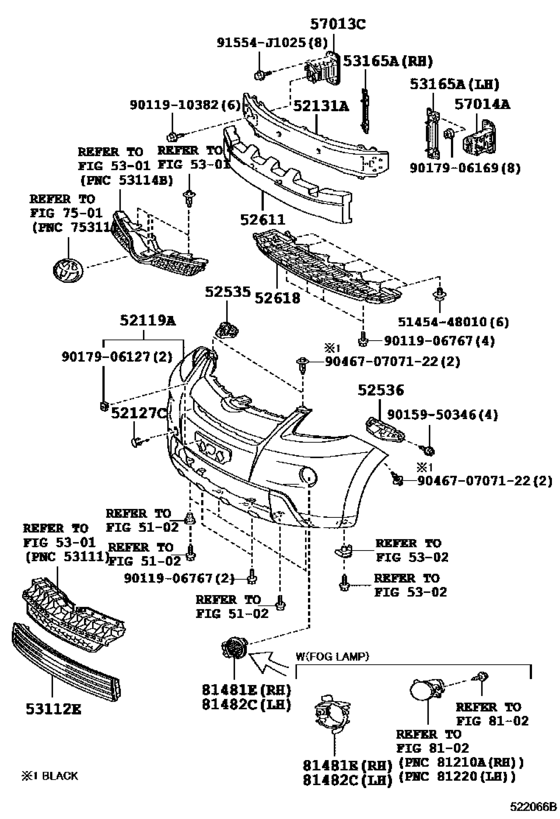

Front Bumper & Bumper Stay ([01.2009 - ] (0901- )) 24

#	OEM	Part name
52119	52119-52953	Cover, Front Bumper (Unpainted)
52127	52127-52924	Cover, Front Bumper Hole
52131	52131-52250	Reinforcement, Front Bumper
52535	52535-52140	Retainer, Front Bumper Side, Rh
52536	52536-52150	Retainer, Front Bumper Side, Lh
52611	52611-52170	Absorber, Front Bumper Energy
52618	52618-52020	Absorber, Front Bumper, Lower
53112	53112-52340	Grille, Radiator, Lower No.1
53165	53164-52030	Bracket, Front Bumper Stone Deflector, No.1
57013	57013-52020	Bracket Sub-Assy, Front Side Member, Rh
57013	57013-52021	Bracket Sub-Assy, Front Side Member, Rh
57014	57014-52020	Bracket Sub-Assy, Front Side Member, Lh
81481	81481-52290	Cover, Fog Lamp, Rh
81481	81481-52280	Cover, Fog Lamp, Rh
81482	81482-52220	Cover, Fog Lamp, Lh
81482	81482-52210	Cover, Fog Lamp, Lh
91554	91554-J1025	New Genuine Part
5145448010	51454-48010	Silencer, Engine Under Cover, Rear
9011906767	90119-06767	Bolt, W/washer(For Engine Under Cover)
9011910382	90119-10382	BOLT WWASHER
9015950346	90159-50346	SCREW
9017906127	90179-06127	Bracket, Front Licence Plate Mounting
9017906169	90179-06169	Nut
904670707122	90467-07071-22	Clip, Instrument Panel

OEM	Part name	Category
51454-48010	Silencer, Engine Under Cover, Rear	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
52119-52953	Cover, Front Bumper (Unpainted)	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
52127-52924	Cover, Front Bumper Hole	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
52131-52250	Reinforcement, Front Bumper	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
52535-52140	Retainer, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
52536-52150	Retainer, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
52611-52170	Absorber, Front Bumper Energy	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
52618-52020	Absorber, Front Bumper, Lower	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
53112-52340	Grille, Radiator, Lower No.1	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
53164-52030	Bracket, Front Bumper Stone Deflector, No.1	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
57013-52020	Bracket Sub-Assy, Front Side Member, Rh	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
57013-52021	Bracket Sub-Assy, Front Side Member, Rh	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
57014-52020	Bracket Sub-Assy, Front Side Member, Lh	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
81481-52280	Cover, Fog Lamp, Rh	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
81481-52290	Cover, Fog Lamp, Rh	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
81482-52210	Cover, Fog Lamp, Lh	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
81482-52220	Cover, Fog Lamp, Lh	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
90119-06767	Bolt, W/washer(For Engine Under Cover)	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
90119-10382	BOLT WWASHER	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
90159-50346	SCREW	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
90179-06127	Bracket, Front Licence Plate Mounting	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
90179-06169	Nut	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
90467-07071-22	Clip, Instrument Panel	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
91554-J1025	New Genuine Part	Front Bumper & Bumper Stay ([01.2009 - ] (0901- ))
