NLP10

Toyota YARIS-ECHO-VIOS-LIMO · 2001 · 2,873 parts · 171 categories

← Back to categories

2,873 items

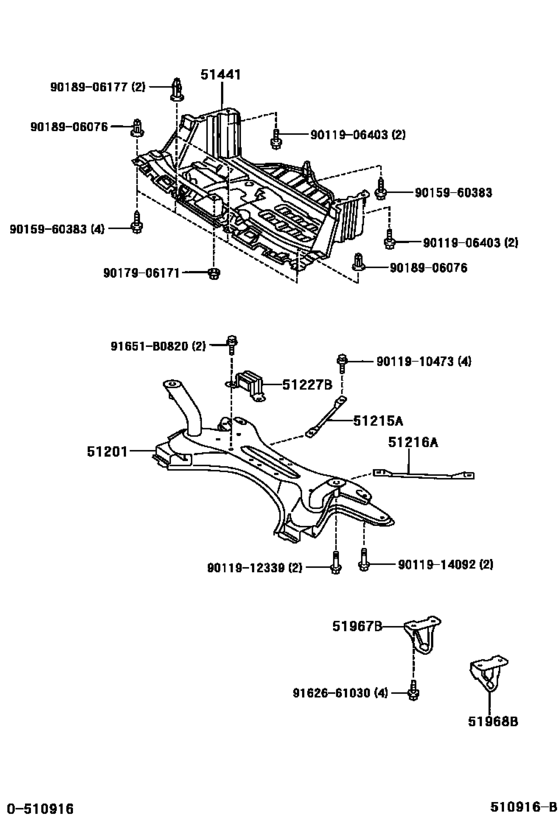

Suspension Crossmember & Under Cover ([02.2003 - ] (0302- )NLP10..FRP) 19

#	OEM	Part name
51201	51201-0D051	Crossmember Sub-Assy, Front Suspension
51215	51215-0D010	Reinforcement, Front Suspension Member, Rh
51227	51227-0D020	Damper, Front Suspension Member Dynamic
51441	51410-0D020	Cover, Engine Under, No.1
51967	51967-0D040	Hook, Transport, Rear Rh
51968	51967-0D030	Hook, Transport, Rear Lh
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
9011906403	90119-06403	BOLT W-WASHER
9011910473	90119-10473	New Genuine Part
9011912339	90119-12339	New Genuine Part
9011914092	90119-14092	BOLT
9011914092	90119-A0014	New Genuine Part
9015960383	90159-60383	SCREW WWASHER
9015960383	90159-A0010	SCREW WWASHER TAPP
9017906171	90179-06171	Nut, Cap(For Cylinder Head Cover)
9018906076	90189-06076	GROMMET
9018906177	90189-06177	GROMMET SCREW
9162661030	91626-61030	BOLT WWASHER

OEM	Part name	Category
51201-0D051	Crossmember Sub-Assy, Front Suspension	Suspension Crossmember & Under Cover ([02.2003 - ] (0302- )NLP10..FRP)
51215-0D010	Reinforcement, Front Suspension Member, Rh	Suspension Crossmember & Under Cover ([02.2003 - ] (0302- )NLP10..FRP)
51227-0D020	Damper, Front Suspension Member Dynamic	Suspension Crossmember & Under Cover ([02.2003 - ] (0302- )NLP10..FRP)
51410-0D020	Cover, Engine Under, No.1	Suspension Crossmember & Under Cover ([02.2003 - ] (0302- )NLP10..FRP)
51967-0D030	Hook, Transport, Rear Lh	Suspension Crossmember & Under Cover ([02.2003 - ] (0302- )NLP10..FRP)
51967-0D040	Hook, Transport, Rear Rh	Suspension Crossmember & Under Cover ([02.2003 - ] (0302- )NLP10..FRP)
90080-11347	New Genuine Part	Suspension Crossmember & Under Cover ([02.2003 - ] (0302- )NLP10..FRP)
90119-06403	BOLT W-WASHER	Suspension Crossmember & Under Cover ([02.2003 - ] (0302- )NLP10..FRP)
90119-10473	New Genuine Part	Suspension Crossmember & Under Cover ([02.2003 - ] (0302- )NLP10..FRP)
90119-12339	New Genuine Part	Suspension Crossmember & Under Cover ([02.2003 - ] (0302- )NLP10..FRP)
90119-14092	BOLT	Suspension Crossmember & Under Cover ([02.2003 - ] (0302- )NLP10..FRP)
90119-A0014	New Genuine Part	Suspension Crossmember & Under Cover ([02.2003 - ] (0302- )NLP10..FRP)
90159-60383	SCREW WWASHER	Suspension Crossmember & Under Cover ([02.2003 - ] (0302- )NLP10..FRP)
90159-A0010	SCREW WWASHER TAPP	Suspension Crossmember & Under Cover ([02.2003 - ] (0302- )NLP10..FRP)
90179-06171	Nut, Cap(For Cylinder Head Cover)	Suspension Crossmember & Under Cover ([02.2003 - ] (0302- )NLP10..FRP)
90189-06076	GROMMET	Suspension Crossmember & Under Cover ([02.2003 - ] (0302- )NLP10..FRP)
90189-06177	GROMMET SCREW	Suspension Crossmember & Under Cover ([02.2003 - ] (0302- )NLP10..FRP)
91626-61030	BOLT WWASHER	Suspension Crossmember & Under Cover ([02.2003 - ] (0302- )NLP10..FRP)
91651-B0820	Bolt, Radiator Side Support Plate	Suspension Crossmember & Under Cover ([02.2003 - ] (0302- )NLP10..FRP)

Source: Public OEM parts-catalog data
Variants: 2 / 28
Category: 171
Collected: 2026-08-04
