NLP10

Toyota YARIS-ECHO-VIOS-LIMO · 2001 · 2,873 parts · 171 categories

← Back to categories

2,873 items

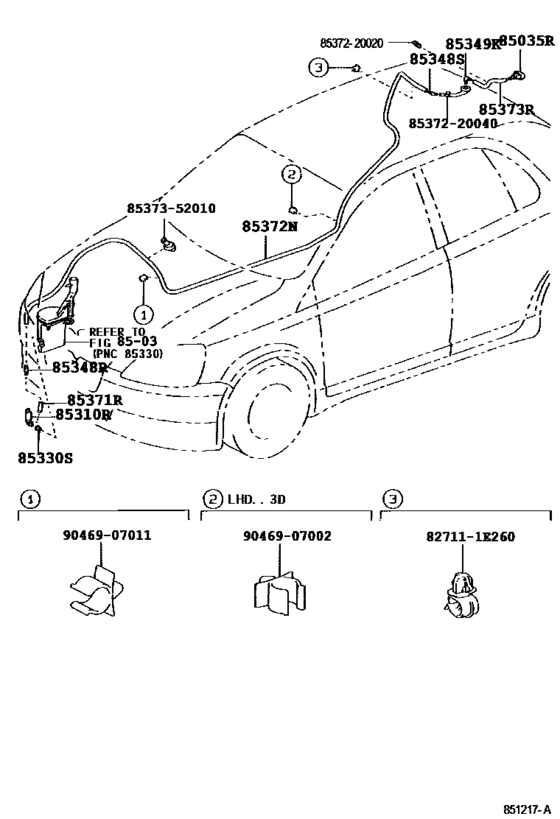

Rear Washer ([02.2003 - ] (0302- )FRP) 16

#	OEM	Part name
85035	85391-0D010	Nozzle Sub-Assy, Rear Washer
85310	85340-05010	Motor Assy, Rear Washer
85310	85340-05011	Motor Assy, Rear Washer
85330	90069-20005	Bush, Windshield Washer Jar
85348	85375-05050	Joint, Windshield Washer Hose, No.1
85348	85395-05020	Joint, Rear Washer Elbow, No.1
85349	85395-0D010	Joint, Rear Washer Elbow, No.2
85371	90069-16009	Hose, Windshield Washer (From Joint To Joint), No.2
85372	90069-16013	Hose, Rear Washer (From Joint To Joint), No.1
85372	90069-16010	Hose, Windshield Washer (From Joint To Joint), No.1
8537220020	85372-20020	Grommet, Rear Washer Hose
8537220040	85372-20040	Grommet, Rear Washer Hose
8537352010	85373-52010	Hose, Windshield Washer (from Joint To Nozzle)
9046907002	90469-07002	Clamp No.2 (For Windseield Washer)
9046907011	90469-07011	Clamp No.1 (For Windseield Washer)
9223372036854775807	82711-1E260	Clamp (For Fuel Lid Lock Control Cable)

OEM	Part name	Category
82711-1E260	Clamp (For Fuel Lid Lock Control Cable)	Rear Washer ([02.2003 - ] (0302- )FRP)
85340-05010	Motor Assy, Rear Washer	Rear Washer ([02.2003 - ] (0302- )FRP)
85340-05011	Motor Assy, Rear Washer	Rear Washer ([02.2003 - ] (0302- )FRP)
85372-20020	Grommet, Rear Washer Hose	Rear Washer ([02.2003 - ] (0302- )FRP)
85372-20040	Grommet, Rear Washer Hose	Rear Washer ([02.2003 - ] (0302- )FRP)
85373-52010	Hose, Windshield Washer (from Joint To Nozzle)	Rear Washer ([02.2003 - ] (0302- )FRP)
85375-05050	Joint, Windshield Washer Hose, No.1	Rear Washer ([02.2003 - ] (0302- )FRP)
85391-0D010	Nozzle Sub-Assy, Rear Washer	Rear Washer ([02.2003 - ] (0302- )FRP)
85395-05020	Joint, Rear Washer Elbow, No.1	Rear Washer ([02.2003 - ] (0302- )FRP)
85395-0D010	Joint, Rear Washer Elbow, No.2	Rear Washer ([02.2003 - ] (0302- )FRP)
90069-16009	Hose, Windshield Washer (From Joint To Joint), No.2	Rear Washer ([02.2003 - ] (0302- )FRP)
90069-16010	Hose, Windshield Washer (From Joint To Joint), No.1	Rear Washer ([02.2003 - ] (0302- )FRP)
90069-16013	Hose, Rear Washer (From Joint To Joint), No.1	Rear Washer ([02.2003 - ] (0302- )FRP)
90069-20005	Bush, Windshield Washer Jar	Rear Washer ([02.2003 - ] (0302- )FRP)
90469-07002	Clamp No.2 (For Windseield Washer)	Rear Washer ([02.2003 - ] (0302- )FRP)
90469-07011	Clamp No.1 (For Windseield Washer)	Rear Washer ([02.2003 - ] (0302- )FRP)
