NLP10

Toyota YARIS-ECHO-VIOS-LIMO · 2001 · 2,873 parts · 171 categories

2,873 items

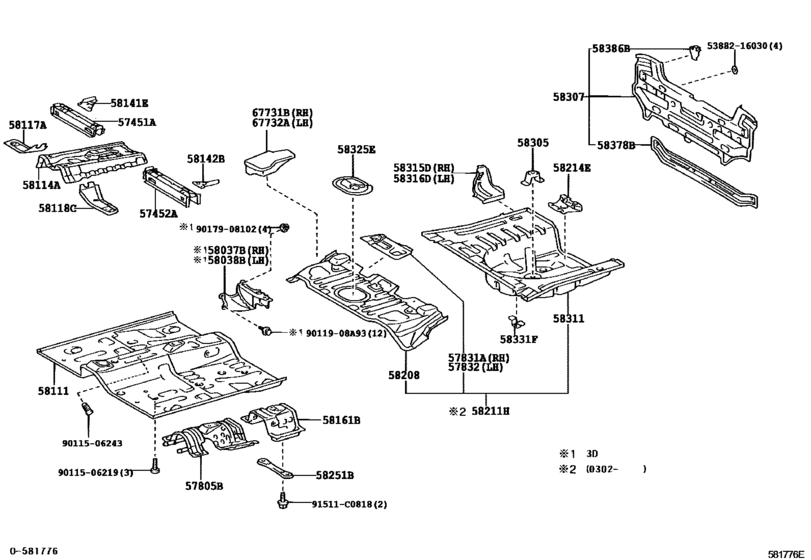

Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP) 33

#	OEM	Part name
57451	57508-0D010	Member, Front Floor Cross, Rh
57452	57509-0D010	Member, Front Floor Cross, No.2
57805	57805-0D042	Reinforcement Sub-Assy, Belt Anchor, Rh
57831	57803-0D010	Reinforcement, Rear No.1 Seat Leg, Front No.1
57832	57804-0D010	Reinforcement, Rear No.1 Seat Leg, Front No.2
58111	58111-0D903	Pan, Front Floor
58111	58111-52906	Pan, Front Floor
58114	58114-0D010	Reinforcement, Front Floor Panel
58117	58117-52040	Reinforcement, Front Floor Side, Rh
58118	58118-52030	Reinforcement, Front Floor Side, Lh
58141	58141-52010	Reinforcement, Front Side Member To Floor Pan, Rh
58142	58142-52010	Reinforcemnt, Front Side Member To Floor Pan, Lh
58161	58161-0D010	Reinforcement, Belt Anchor To Floor Pan
58161	58161-52010	Reinforcement, Belt Anchor To Floor Pan
58208	58211-0D050	Pan, Center Floor
58211	58211-0D901	Pan, Center Floor
58214	58214-52010	Bracket, Jack Support
58251	58251-52010	Brace, Floor Panel, Front
58305	58351-33010	Bracket Sub-Assy, Spare Wheel Clamp
58307	58307-0D010	Panel Sub-Assy, Body Lower Back
58311	58311-0D030	Pan, Rear Floor
58315	58315-0D030	Extension, Rear Floor Pan, Rh
58316	58316-0D030	Extension, Rear Floor Pan, Lh
58325	58325-52010	Cover, Rear Floor Service Hole
58331	58331-10010	Bracket, Rear Floor Heat Insulator, No.3
58378	58378-0D010	Reinforcement, Body Lower Back Panel
58386	58386-52010	Bracket, Rear Bumper Cover, No.2
91511	91511-C0818	BOLTFLANGE
9011908	90119-08A93	New Genuine Part
5388216030	53882-16030	Pad, Rear Bumper, Center
9011506219	90115-06219	Bolt, Weld(For Front Floor Pan, Lh)
9011506243	90115-06243	Bolt, Weld(For Front Floor Panel, Center)
9017908102	90179-08102	NUT

OEM	Part name	Category
53882-16030	Pad, Rear Bumper, Center	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
57508-0D010	Member, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
57509-0D010	Member, Front Floor Cross, No.2	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
57803-0D010	Reinforcement, Rear No.1 Seat Leg, Front No.1	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
57804-0D010	Reinforcement, Rear No.1 Seat Leg, Front No.2	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
57805-0D042	Reinforcement Sub-Assy, Belt Anchor, Rh	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
58111-0D903	Pan, Front Floor	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
58111-52906	Pan, Front Floor	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
58114-0D010	Reinforcement, Front Floor Panel	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
58117-52040	Reinforcement, Front Floor Side, Rh	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
58118-52030	Reinforcement, Front Floor Side, Lh	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
58141-52010	Reinforcement, Front Side Member To Floor Pan, Rh	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
58142-52010	Reinforcemnt, Front Side Member To Floor Pan, Lh	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
58161-0D010	Reinforcement, Belt Anchor To Floor Pan	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
58161-52010	Reinforcement, Belt Anchor To Floor Pan	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
58211-0D050	Pan, Center Floor	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
58211-0D901	Pan, Center Floor	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
58214-52010	Bracket, Jack Support	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
58251-52010	Brace, Floor Panel, Front	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
58307-0D010	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
58311-0D030	Pan, Rear Floor	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
58315-0D030	Extension, Rear Floor Pan, Rh	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
58316-0D030	Extension, Rear Floor Pan, Lh	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
58325-52010	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
58331-10010	Bracket, Rear Floor Heat Insulator, No.3	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
58351-33010	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
58378-0D010	Reinforcement, Body Lower Back Panel	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
58386-52010	Bracket, Rear Bumper Cover, No.2	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
90115-06219	Bolt, Weld(For Front Floor Pan, Lh)	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
90115-06243	Bolt, Weld(For Front Floor Panel, Center)	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
90119-08A93	New Genuine Part	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
90179-08102	NUT	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
91511-C0818	BOLTFLANGE	Floor Pan & Lower Back Panel ([02.2003 - ] (0302- )FRP)
