NLP10

Toyota YARIS-ECHO-VIOS-LIMO · 2001 · 2,873 parts · 171 categories

2,873 items

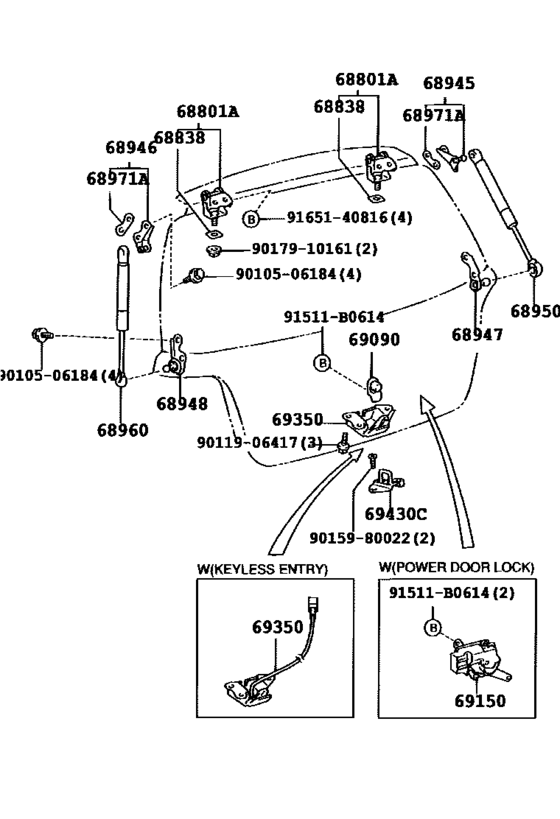

Back Door Lock & Handle ([01.2001 - ] (0101- )FRP) 28

#	OEM	Part name
68801	68801-0D010	Hinge Sub-Assy, Back Door, Upper
68838	68838-0D010	Pad, Back Door Hinge, No.1
68838	68838-0D020	Pad, Back Door Hinge, No.1
68945	68945-52010	Bracket, Back Door Damper Stay, Upper Rh
68945	68945-52071	Bracket, Back Door Damper Stay, Upper Rh
68946	68946-52010	Bracket, Back Door Damper Stay, Upper Lh
68946	68946-52031	Bracket, Back Door Damper Stay, Upper Lh
68947	68947-52010	Bracket, Back Door Damper Stay, Lower Rh
68948	68948-52010	Bracket, Back Door Damper Stay, Lower Lh
68950	68950-09110	Stay Assy, Back Door, Rh
68950	68950-09111	Stay Assy, Back Door, Rh
68960	68950-09120	Stay Assy, Back Door, Lh
68960	68950-09121	Stay Assy, Back Door, Lh
68971	68971-52010	Packing, Back Door Stay, No.1
68971	68971-52020	Packing, Back Door Stay, No.1
69090	69090-0D020	Handle Assy, Back Door, Outside
69150	69150-0D010	Actuator Assy, Back Door Lock
69150	69150-0D011	Actuator Assy, Back Door Lock
69350	69350-0D030	Lock Assy, Back Door
69350	69350-0D031	Lock Assy, Back Door
69430	69430-0D010	Striker Assy, Back Door Lock
91511	91511-B0614	BOLT, FLANGE
9010506184	90105-06184	BOLT WASHER BASED
9011906417	90119-06417	New Genuine Part
9011906417	90119-06297	BOLT
9015980022	90159-80022	New Genuine Part
9017910161	90179-10161	Nut (For Front Wiper Arm Setting)
9165140816	91651-40816	BOLT

OEM	Part name	Category
68801-0D010	Hinge Sub-Assy, Back Door, Upper	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
68838-0D010	Pad, Back Door Hinge, No.1	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
68838-0D020	Pad, Back Door Hinge, No.1	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
68945-52010	Bracket, Back Door Damper Stay, Upper Rh	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
68945-52071	Bracket, Back Door Damper Stay, Upper Rh	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
68946-52010	Bracket, Back Door Damper Stay, Upper Lh	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
68946-52031	Bracket, Back Door Damper Stay, Upper Lh	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
68947-52010	Bracket, Back Door Damper Stay, Lower Rh	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
68948-52010	Bracket, Back Door Damper Stay, Lower Lh	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
68950-09110	Stay Assy, Back Door, Rh	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
68950-09111	Stay Assy, Back Door, Rh	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
68950-09120	Stay Assy, Back Door, Lh	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
68950-09121	Stay Assy, Back Door, Lh	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
68971-52010	Packing, Back Door Stay, No.1	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
68971-52020	Packing, Back Door Stay, No.1	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
69090-0D020	Handle Assy, Back Door, Outside	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
69150-0D010	Actuator Assy, Back Door Lock	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
69150-0D011	Actuator Assy, Back Door Lock	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
69350-0D030	Lock Assy, Back Door	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
69350-0D031	Lock Assy, Back Door	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
69430-0D010	Striker Assy, Back Door Lock	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
90105-06184	BOLT WASHER BASED	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
90119-06297	BOLT	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
90119-06417	New Genuine Part	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
90159-80022	New Genuine Part	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
90179-10161	Nut (For Front Wiper Arm Setting)	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
91511-B0614	BOLT, FLANGE	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
91651-40816	BOLT	Back Door Lock & Handle ([01.2001 - ] (0101- )FRP)
