NLP10

Toyota YARIS-ECHO-VIOS-LIMO · 2001 · 2,873 parts · 171 categories

2,873 items

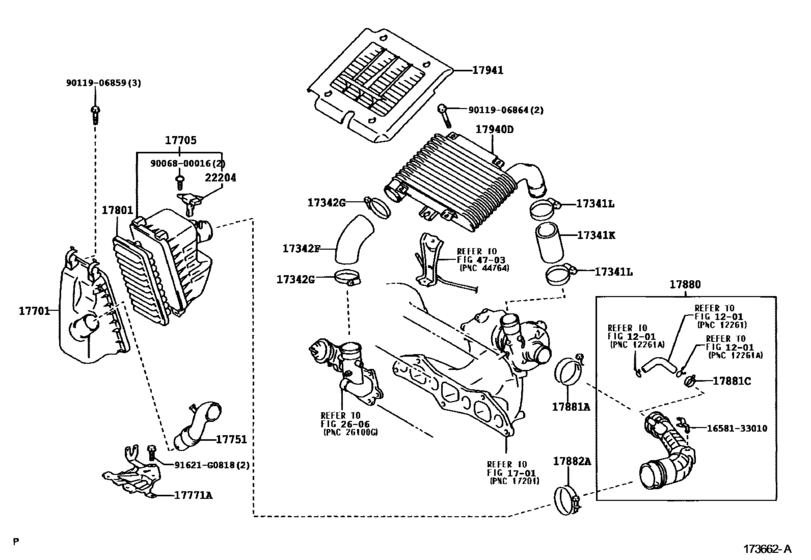

Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP) 24

#	OEM	Part name
17341	17341-33010	Hose, Air, No.1(For Intercooler)
17341	17341-33030	Hose, Air, No.1(For Intercooler)
17341	90466-41005	Clamp Or Clip, Hose(For Radiator Inlet)
17342	17342-33010	Hose, Air, No.2(For Intercooler)
17342	90460-60006	Clamp, Hose, No.2(For Intercooler)
17701	17701-0N010	Case Sub-Assy, Air Cleaner
17705	17705-0N010	Cap Sub-Assy, Air Cleaner
17751	17751-33060	Inlet, Air Cleaner, No.1
17771	17771-33020	Bracket, Air Cleaner
17801	17801-0N010	Element Sub-Assy, Air Cleaner Filter
17801	17801-33040	Element Sub-Assy, Air Cleaner Filter
17880	17880-0N010	Hose Assy, Air Cleaner
17881	96111-10580	Clamp Or Clip, Hose(For Radiator Outlet No.1)
17881	96134-52600	Clip Or Clamp(For Ventilation Hose)
17882	96111-10690	Clamp, Hose
17940	17940-33010	Intercooler Assy
17941	17941-33010	Guide, Intercooler Air, No.1
22204	22204-0N010	Meter Sub-Assy, Intake Air Flow
22204	22204-0L010	Meter Sub-Assy, Intake Air Flow
91621	91621-G0818	Bolt(For Automatic Transmission Case Protector)
1658133010	16581-33010	Clamp, Hose(for Water Hose)
9006800016	90068-00016	New Genuine Part
9011906859	90119-06859	BOLT WWASHER
9011906864	90119-06864	BOLT W-WASHER

OEM	Part name	Category
16581-33010	Clamp, Hose(for Water Hose)	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
17341-33010	Hose, Air, No.1(For Intercooler)	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
17341-33030	Hose, Air, No.1(For Intercooler)	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
17342-33010	Hose, Air, No.2(For Intercooler)	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
17701-0N010	Case Sub-Assy, Air Cleaner	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
17705-0N010	Cap Sub-Assy, Air Cleaner	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
17751-33060	Inlet, Air Cleaner, No.1	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
17771-33020	Bracket, Air Cleaner	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
17801-0N010	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
17801-33040	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
17880-0N010	Hose Assy, Air Cleaner	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
17940-33010	Intercooler Assy	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
17941-33010	Guide, Intercooler Air, No.1	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
22204-0L010	Meter Sub-Assy, Intake Air Flow	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
22204-0N010	Meter Sub-Assy, Intake Air Flow	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
90068-00016	New Genuine Part	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
90119-06859	BOLT WWASHER	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
90119-06864	BOLT W-WASHER	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
90460-60006	Clamp, Hose, No.2(For Intercooler)	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
90466-41005	Clamp Or Clip, Hose(For Radiator Inlet)	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
91621-G0818	Bolt(For Automatic Transmission Case Protector)	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
96111-10580	Clamp Or Clip, Hose(For Radiator Outlet No.1)	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
96111-10690	Clamp, Hose	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
96134-52600	Clip Or Clamp(For Ventilation Hose)	Air Cleaner ([02.2003 - ] (0302- )1NDTV..FRP)
