NL50

Toyota COROLLA · 1994 · 4,684 parts · 206 categories
NL50 ×

← Back to categories

4,684 items

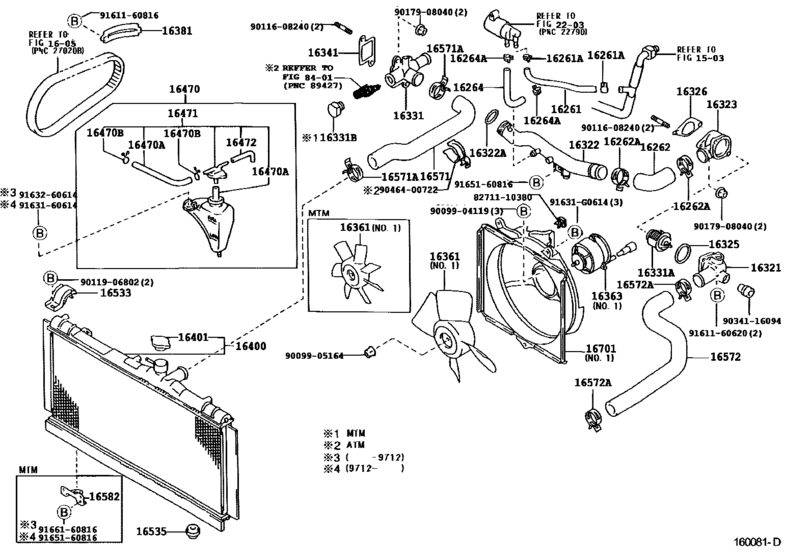

Radiator & Water Outlet ([09.1994 - ] (9409- )1NT) 108
#OEMPart name
16261 16261-55040 Hose, Water By-Pass
16261 16261-55060 Hose, Water By-Pass
16261 90467-15022 Clip Or Clamp(For Ventilation Hose)
16262 16262-55010 Hose, Water Inlet
16262 90467-37001 Clip(For Water Inlet Hose)
16262 90467-37003 Clamp Or Clip, Hose(For Radiator Inlet)
16264 16264-55010 Hose, Water By-Pass, No.2
16321 16321-55010 Inlet, Water
16322 16322-55110 Pipe, Water Inlet
16322 90301-31008 Ring, O(For Water Inlet)
16322 16322-55120 Pipe, Water Inlet
16323 16032-55010 Housing, Water Inlet
16325 16325-63011 Gasket, Water Inlet Housing, No.1
16326 16325-55011 Gasket, Water Inlet Housing, No.2
16331 16304-55020 Outlet, Water
16331 90916-03046 Thermostat
16331 90345-53001 Plug, Water Drain Cock(For Cylinder Block)
16341 16341-55011 Gasket, Water Outlet
16361 16361-55040 Fan
16361 16361-55050 Fan
16361 16361-55010 Fan
16363 16363-55050 Motor, Cooling Fan
16363 16363-74200 Motor, Cooling Fan, Rh
16363 16363-74060 Motor, Cooling Fan
16368 16368-55030 Bracket, Cooling Motor
16368 16368-55040 Bracket, Cooling Motor
16381 16381-55010 Bar, Fan Belt Adjusting
16400 16400-55120 Radiator Assy
16400 16400-55170 Radiator Assy
16400 16400-55121 Radiator Assy
16400 23322-54010 Plug,air(For Oil Cooler Drain Cock)
16400 16492-21050 Ring, O(For Oil Cooler Drain Cock)
16400 96711-19007 Packing(For Radiator Drain Cock)
16400 16400-55110 Radiator Assy
16400 16400-55160 Radiator Assy
16400 90916-04007 Support, Radiator, Lower
16401 16401-62100 Cap Sub-Assy, Radiator
16401 16401-31520 Radiator Cap Sub-Assy (108kPa)
16401 16401-36020 Cap Sub-Assy, Radiator
16401 16401-72090 Cap Sub-Assy, Radiator
16401 16401-20353 Cap Sub-Assy, Radiator
16401 16401-36030 Cap Sub-Assy, Radiator
16403 16403-16740 Core Sub-Assy, Radiator
16403 16403-64640 Core Sub-Assy, Radiator
16403 16403-55110 Core Sub-Assy, Radiator
16403 16403-55160 Core Sub-Assy, Radiator
16406 16406-74520 Support(For Oil Cooler)
16442 16462-62050 Ring, O(For Radiator Upper Tank)
16451 16452-62050 Plate, Radiator Core, Upper
16470 16470-55050 Tank Assy, Radiator Reserve
16470 90445-12078 Hose(For Radiator Breather)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16471 16405-55071 Cap Sub-Assy, Reserve Tank
16472 85338-68010 Hose, Breather
16491 16491-55100 Cooler, Oil(For Atm)
16491 16492-62060 Ring, O(For Atm Oil Cooler)
16491 16493-74520 Washer, Plate(For Atm Oil Cooler)
16533 16533-55050 Support, Radiator, Upper
16535 90916-04005 Support, Radiator, Lower
16535 16535-55040 Support, Radiator, Lower
16571 16571-55050 Hose, Radiator, Inlet
16571 90467-31003 Clip(For Ventilation Hose)
16571 90467-34003 Clip(For Oil Return Hose)
16571 90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)
16572 16572-55090 Hose, Radiator, Outlet
16572 16572-55070 Hose, Radiator, Outlet
16582 16582-55010 Bracket, Radiator, No.1
16701 16711-55111 Shroud Sub-Assy, Fan
16701 16711-55130 Shroud Sub-Assy, Fan
16701 16711-55120 Shroud Sub-Assy, Fan
16715 16715-55030 Bracket, Fan Shroud
16715 16715-55040 Bracket, Fan Shroud
16715 16715-55050 Bracket, Fan Shroud
16715 88688-16850 Bracket, Fan Shroud, No.2
88467 88467-30270 Cushion, Cooler Condenser, No.1
91631 91631-G0614 BOT WWASHER
827112 82711-2B640 Wire, Fuse To Fuse(for Combustion Heater)
8271110380 82711-10380 Wire, Fuse To Fuse(for Combustion Heater)
8868818030 88688-18030 Bracket, Fan Shroud
8889116040 88891-16040 Cover, Cooler, No.1
9009900192 90099-00192 New Genuine Part
9009904119 90099-04119 BOLT WASHER HEAD
9009904371 90099-04371 New Genuine Part
9009905164 90099-05164 Nut
9011608240 90116-08240 New Genuine Part
9011906802 90119-06802 BOLT WWASHER
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9034116094 90341-16094 Plug, W/head Taper Screw, No.1
9046400722 90464-00722 New Genuine Part
9161160620 91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9163160614 91631-60614 BOLT
9163160614 91661-60616 BOLT
9163260614 91632-60614 New Genuine Part
9163260614 91631-B0614 BOLT WWASHER
9163260630 91632-60630 New Genuine Part
9163260630 91631-B0630 BOLT WWASHER
9163560616 91635-60616 BOLT WWASHER
9163560616 91631-J0612 BRACKET
9163560630 91635-60630 New Genuine Part
9163560630 90119-06775 BOLT WWASHER
9165160616 91651-60616 BOLT
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9166160816 91661-60816 Bolt
