NL50

Toyota COROLLA · 1994 · 4,684 parts · 206 categories
NL50 ×

← Back to categories

4,684 items

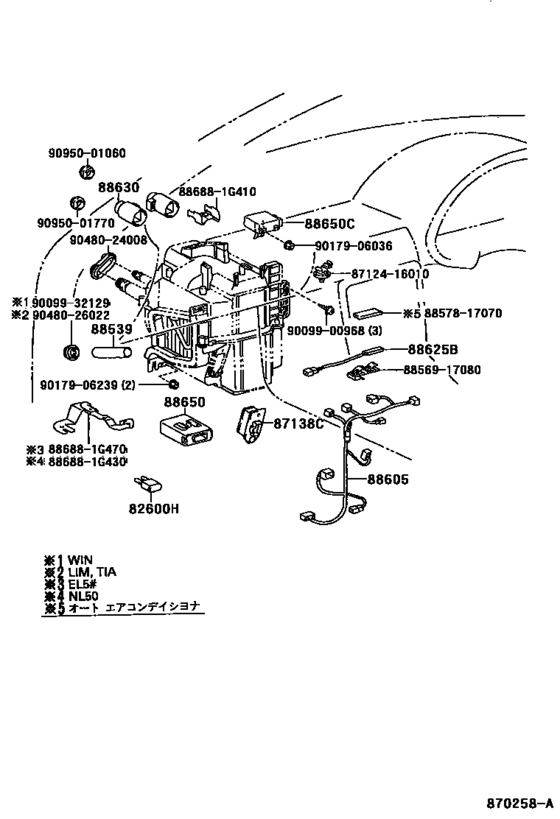

Heating & Air Conditioning - Cooler Unit ([09.1994 - 08.1996] (9409-9608)) 54
#OEMPart name
82600 90982-09009 Fusible Link
87138 87138-16150 Resistor, Blower
88501 88501-10140 Evaporator Sub-Assy, Cooler, No.1
88501 88501-16130 Evaporator Sub-Assy, Cooler, No.1
88501 88501-16111 Evaporator Sub-Assy, Cooler, No.1
88501 88501-16131 Evaporator Sub-Assy, Cooler, No.1
88502 88502-16170 Case Sub-Assy, Cooling Unit
88502 88502-16180 Case Sub-Assy, Cooling Unit
88510 88510-16650 Unit Assy, Cooler
88510 88510-1G040 Unit Assy, Cooler
88515 88515-20100 Valve, Cooler Expansion
88515 88515-22240 Valve, Cooler Expansion
88539 88539-16040 Hose, Cooler Unit Drain, No.1
88539 88539-08010 Hose, Cooler Unit Drain, No.1
88605 88605-1S030 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-1S120 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-1S300 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-1S330 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-1S020 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-1S130 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-1S290 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-1S340 Harness Sub-Assy, Cooler Wiring, No.1
88625 88625-16180 Thermistor, Cooler No.3
88625 88625-12230 Thermistor, Cooler, No.1
88630 88630-95702 Relay, Heater Radiator
88650 88650-16580 Amplifier Assy, Cooler Stabilizer
88650 88650-16700 Amplifier Assy, Cooler Stabilizer
88650 88650-16610 Amplifier Sub-Assy, Airconditioner
88650 88650-10430 Amplifier Assy, Cooler Stabilizer
88650 88650-16570 Amplifier Assy, Cooler Stabilizer
88710 88710-16250 Tube Assy, Air Conditioner
886881 88688-1G410 Bracket, Cooler Diaphragm
886881 88688-1G430 Bracket, Cooler Diaphragm
886881 88688-1G470 Bracket, Cooler Diaphragm
8711614010 87116-14010 Spring, Heater Case Fastening
8712416010 87124-16010 Clamp, Heater
8856917080 88569-17080 Clamp (for Cooler Relay)
8857816280 88578-16280 Paking, Cooler Air Duct
8857816290 88578-16290 Paking, Cooler Air Duct
8857817070 88578-17070 Paking, Cooler Air Duct
8862628010 88626-28010 Holder, Thermistor
9009900968 90099-00968 Screw(For Air Conditioner Unit)
9009904381 90099-04381 BOLT
9009932129 90099-32129 Grommet (For Cooler Unit Drain Hose)
9017906036 90179-06036 Nut, Cap(For Cylinder Head Cover)
9017906036 90179-06299 Nut, Wire Adjusting, No.1
9017906239 90179-06239 New Genuine Part
9017906239 90179-06314 NUT
9048024008 90480-24008 Grommet (For Cooler Unit)
9048024008 90099-32137 Grommet (For Cooler Unit)
9048026022 90480-26022 Grommet (For Cooler Unit)
9095001060 90950-01060 Plug, Hole, No.1(For Dash Panel)
9095001060 90950-01866 Plug, Hole(For Front Door Panel)
9095001770 90950-01770 New Genuine Part
