NL50

Toyota COROLLA · 1994 · 4,684 parts · 206 categories
NL50 ×

← Back to categories

4,684 items

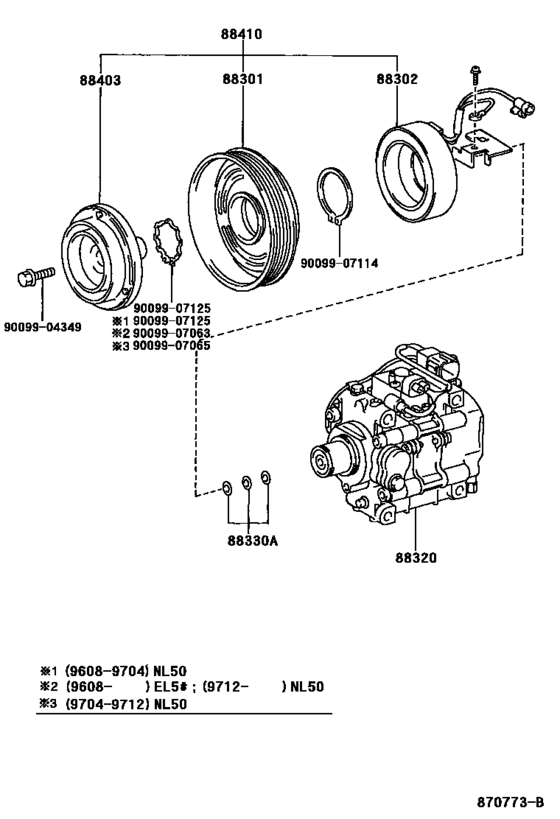

Heating & Air Conditioning - Compressor ([09.1994 - ] (9409- )) 17
#OEMPart name
88301 88412-10180 Rotor Sub-Assy, Magnet Clutch
88301 88412-1A010 Rotor Sub-Assy, Magnet Clutch
88302 88411-16070 Stator Sub-Assy, Magnet Clutch
88302 88411-1A040 Stator Sub-Assy, Magnet Clutch
88320 88320-10511 Compressor Assy, Cooler
88320 88320-16430 Compressor Assy, Cooler
88320 88320-16390 Compressor Assy, Cooler
88330 88335-14020 Washer
88403 88403-16020 Hub Sub-Assy, Magnet Clutch
88403 88403-1A010 Hub Sub-Assy, Magnet Clutch
88410 88410-10290 Clutch Assy, Magnet
88410 88410-16240 Clutch Assy, Magnet
9009904349 90099-04349 Bolt, Magnet Clutch Setting
9009907063 90099-07063 RING SNAP
9009907065 90099-07065 SNAP RING
9009907114 90099-07114 Ring, Snap (For Magnet Clutch)
9009907125 90099-07125 Ring, Snap
