Search › Model › NL50

NL50

Toyota COROLLA · 1994 · 4,684 parts · 206 categories

4,684 items

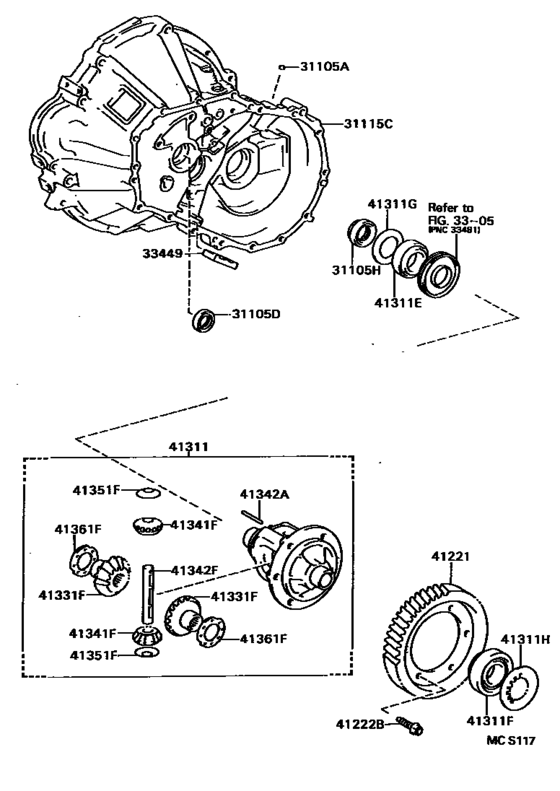

Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM) 65

#	OEM	Part name
31105	90331-08002	Plug, Tight(For Front Transaxle Case)
31105	90311-25016	Seal, Oil, No.1(For Front Transaxle Case)
31105	90311-34016	Seal, Oil, No.2(For Transaxle Case)
31115	31115-16040	Case, Front Transaxle(Mtm)
31115	31115-16042	Case, Front Transaxle(Mtm)
31115	31115-16041	Case, Front Transaxle(Mtm)
33449	33449-12020	Magnet, Transmission
41221	41221-10181	Gear, Front Differential Ring
41221	41221-52290	Gear, Front Differential Ring
41222	90105-12100	Bolt (For Front Differential Ring Gear Set)
41311	41301-10060	Case, Front Differential
41311	41301-10061	Case, Front Differential
41311	90366-38004	Bearing(For Counter Driven Gear)
41311	90368-38010	Bearing(For Rear Differential Case)
41311	90201-41012	Washer, Plate (For Front Differential Case Front)
41311	90560-41002	Washer, Plate (For Front Differential Case Front)
41311	90201-41046	Washer, Plate (For Front Differential Case Rear)
41311	90564-41014	Washer, Plate (For Front Differential Case Rear)
41311	90201-41047	Washer, Plate (For Front Differential Case Rear)
41311	90564-41015	Washer, Plate (For Front Differential Case Rear)
41311	90201-41048	Washer, Plate (For Front Differential Case Rear)
41311	90564-41016	Washer, Plate (For Front Differential Case Rear)
41311	90201-41049	Washer, Plate (For Front Differential Case Rear)
41311	90564-41017	Washer, Plate (For Front Differential Case Rear)
41311	90201-41050	Washer, Plate (For Front Differential Case Rear)
41311	90564-41018	Washer, Plate (For Front Differential Case Rear)
41311	90201-41051	Washer, Plate (For Front Differential Case Rear)
41311	90564-41019	Washer, Plate (For Front Differential Case Rear)
41311	90201-41052	Washer, Plate (For Front Differential Case Rear)
41311	90564-41020	Washer, Plate (For Front Differential Case Rear)
41311	90201-41053	Washer, Plate (For Front Differential Case Rear)
41311	90564-41021	Washer, Plate (For Front Differential Case Rear)
41311	90201-41054	Washer, Plate (For Front Differential Case Rear)
41311	90564-41022	Washer, Plate (For Front Differential Case Rear)
41311	90201-41055	Washer, Plate (For Front Differential Case Rear)
41311	90564-41023	Washer, Plate (For Front Differential Case Rear)
41311	90201-41056	Washer, Plate (For Front Differential Case Rear)
41311	90564-41024	Washer, Plate (For Front Differential Case Rear)
41311	90201-41057	Washer, Plate (For Front Differential Case Rear)
41311	90564-41025	Washer, Plate (For Front Differential Case Rear)
41311	90201-41058	Washer, Plate (For Front Differential Case Rear)
41311	90564-41026	Washer, Plate (For Front Differential Case Rear)
41311	90201-41059	Washer, Plate (For Front Differential Case Rear)
41311	90564-41027	Washer, Plate (For Front Differential Case Rear)
41311	90201-41060	Washer, Plate (For Front Differential Case Rear)
41311	90564-41028	Washer, Plate (For Front Differential Case Rear)
41311	90201-41061	Washer, Plate (For Front Differential Case Rear)
41311	90564-41029	Washer, Plate (For Front Differential Case Rear)
41311	90201-41062	Washer, Plate (For Front Differential Case Rear)
41311	90564-41030	Washer, Plate (For Front Differential Case Rear)
41311	90201-41063	Washer, Plate (For Front Differential Case Rear)
41311	90564-41031	Washer, Plate (For Front Differential Case Rear)
41311	90201-41064	Washer, Plate (For Front Differential Case Rear)
41311	90564-41032	Washer, Plate (For Front Differential Case Rear)
41331	41331-10042	Gear, Rear Differential Side
41341	41341-10030	Pinion, Rear Differential
41342	90250-04053	Pin, Straight (For Front Differential Pinion Shaft)
41342	41342-10041	Shaft, Front Differential Pinion, No.1
41351	41351-10030	Washer, Rear Differential Pinion Thrust
41361	41361-10070	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-10080	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-10090	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-10100	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-10110	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-10120	Washer, Rear Differential Side Gear Thrust, No.1

OEM	Part name	Category
31115-16040	Case, Front Transaxle(Mtm)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
31115-16041	Case, Front Transaxle(Mtm)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
31115-16042	Case, Front Transaxle(Mtm)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
33449-12020	Magnet, Transmission	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
41221-10181	Gear, Front Differential Ring	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
41221-52290	Gear, Front Differential Ring	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
41301-10060	Case, Front Differential	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
41301-10061	Case, Front Differential	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
41331-10042	Gear, Rear Differential Side	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
41341-10030	Pinion, Rear Differential	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
41342-10041	Shaft, Front Differential Pinion, No.1	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
41351-10030	Washer, Rear Differential Pinion Thrust	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
41361-10070	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
41361-10080	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
41361-10090	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
41361-10100	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
41361-10110	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
41361-10120	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90105-12100	Bolt (For Front Differential Ring Gear Set)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90201-41012	Washer, Plate (For Front Differential Case Front)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90201-41046	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90201-41047	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90201-41048	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90201-41049	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90201-41050	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90201-41051	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90201-41052	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90201-41053	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90201-41054	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90201-41055	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90201-41056	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90201-41057	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90201-41058	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90201-41059	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90201-41060	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90201-41061	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90201-41062	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90201-41063	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90201-41064	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90250-04053	Pin, Straight (For Front Differential Pinion Shaft)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90311-25016	Seal, Oil, No.1(For Front Transaxle Case)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90311-34016	Seal, Oil, No.2(For Transaxle Case)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90331-08002	Plug, Tight(For Front Transaxle Case)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90366-38004	Bearing(For Counter Driven Gear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90368-38010	Bearing(For Rear Differential Case)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90560-41002	Washer, Plate (For Front Differential Case Front)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90564-41014	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90564-41015	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90564-41016	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90564-41017	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90564-41018	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90564-41019	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90564-41020	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90564-41021	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90564-41022	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90564-41023	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90564-41024	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90564-41025	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90564-41026	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90564-41027	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90564-41028	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90564-41029	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90564-41030	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90564-41031	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
90564-41032	Washer, Plate (For Front Differential Case Rear)	Front Axle Housing & Differential ([09.1994 - ] C140,C150,C153 (9409- )EL51,53,NL50..MTM)
