Search › Model › NL50

NL50

Toyota COROLLA · 1994 · 4,684 parts · 206 categories

4,684 items

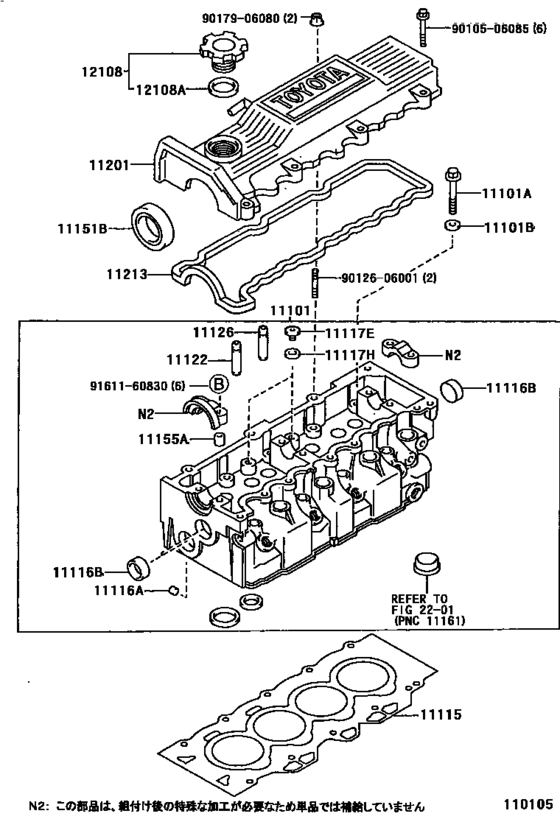

Cylinder Head ([09.1994 - ] (9409- )1NT) 26

#	OEM	Part name
11101	11101-55041	Head Sub-Assy, Cylinder
11101	90910-02105	Bolt(For Cylinder Head Set)
11101	90201-11016	Washer, Plate(For Cylinder Head Set)
11115	11115-55030-01	Gasket, Cylinder Head
11115	11115-55030-02	Gasket, Cylinder Head
11115	11115-55030-03	Gasket, Cylinder Head
11116	90331-08004	Plug, Tight, No.1
11116	96411-12800	Plug, Tight, No.2
11116	96411-42800	Plug, Tight, No.1
11117	90341-18023	Plug, W/head Straight Screw, No.1
11117	90430-18008	Gasket
11117	90430-T0021	Gasket(For Manual Transmission Filler Plug)
11122	11122-16020	Bush, Intake Valve Guide
11122	11123-16020	Bush, Intake Valve Guide
11151	90311-38041	Seal, Oil(For Camshaft Setting)
11151	90311-38069	Seal, Oil(For Camshaft Setting)
11155	90253-11021	Pin, Ring
11201	11201-55040	Cover Sub-Assy, Cylinder Head
11213	11213-55010	Gasket, Cylinder Head Cover
11213	11213-55011	Gasket, Cylinder Head Cover
12108	12180-55010	Cap Sub-Assy, Oil Filler
12108	90430-37004	Gasket(For Oil Filler Cap)
9010506085	90105-06085	New Genuine Part
9012606001	90126-06001	STUD HEX LOBULAR
9017906080	90179-06080	NUT
9161160830	91611-60830	Bolt(For Clutch Release Cylinder Setting)

OEM	Part name	Category
11101-55041	Head Sub-Assy, Cylinder	Cylinder Head ([09.1994 - ] (9409- )1NT)
11115-55030-01	Gasket, Cylinder Head	Cylinder Head ([09.1994 - ] (9409- )1NT)
11115-55030-02	Gasket, Cylinder Head	Cylinder Head ([09.1994 - ] (9409- )1NT)
11115-55030-03	Gasket, Cylinder Head	Cylinder Head ([09.1994 - ] (9409- )1NT)
11122-16020	Bush, Intake Valve Guide	Cylinder Head ([09.1994 - ] (9409- )1NT)
11123-16020	Bush, Intake Valve Guide	Cylinder Head ([09.1994 - ] (9409- )1NT)
11201-55040	Cover Sub-Assy, Cylinder Head	Cylinder Head ([09.1994 - ] (9409- )1NT)
11213-55010	Gasket, Cylinder Head Cover	Cylinder Head ([09.1994 - ] (9409- )1NT)
11213-55011	Gasket, Cylinder Head Cover	Cylinder Head ([09.1994 - ] (9409- )1NT)
12180-55010	Cap Sub-Assy, Oil Filler	Cylinder Head ([09.1994 - ] (9409- )1NT)
90105-06085	New Genuine Part	Cylinder Head ([09.1994 - ] (9409- )1NT)
90126-06001	STUD HEX LOBULAR	Cylinder Head ([09.1994 - ] (9409- )1NT)
90179-06080	NUT	Cylinder Head ([09.1994 - ] (9409- )1NT)
90201-11016	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([09.1994 - ] (9409- )1NT)
90253-11021	Pin, Ring	Cylinder Head ([09.1994 - ] (9409- )1NT)
90311-38041	Seal, Oil(For Camshaft Setting)	Cylinder Head ([09.1994 - ] (9409- )1NT)
90311-38069	Seal, Oil(For Camshaft Setting)	Cylinder Head ([09.1994 - ] (9409- )1NT)
90331-08004	Plug, Tight, No.1	Cylinder Head ([09.1994 - ] (9409- )1NT)
90341-18023	Plug, W/head Straight Screw, No.1	Cylinder Head ([09.1994 - ] (9409- )1NT)
90430-18008	Gasket	Cylinder Head ([09.1994 - ] (9409- )1NT)
90430-37004	Gasket(For Oil Filler Cap)	Cylinder Head ([09.1994 - ] (9409- )1NT)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Cylinder Head ([09.1994 - ] (9409- )1NT)
90910-02105	Bolt(For Cylinder Head Set)	Cylinder Head ([09.1994 - ] (9409- )1NT)
91611-60830	Bolt(For Clutch Release Cylinder Setting)	Cylinder Head ([09.1994 - ] (9409- )1NT)
96411-12800	Plug, Tight, No.2	Cylinder Head ([09.1994 - ] (9409- )1NT)
96411-42800	Plug, Tight, No.1	Cylinder Head ([09.1994 - ] (9409- )1NT)
