Search › Model › NL50

NL50

Toyota COROLLA · 1994 · 4,684 parts · 206 categories

4,684 items

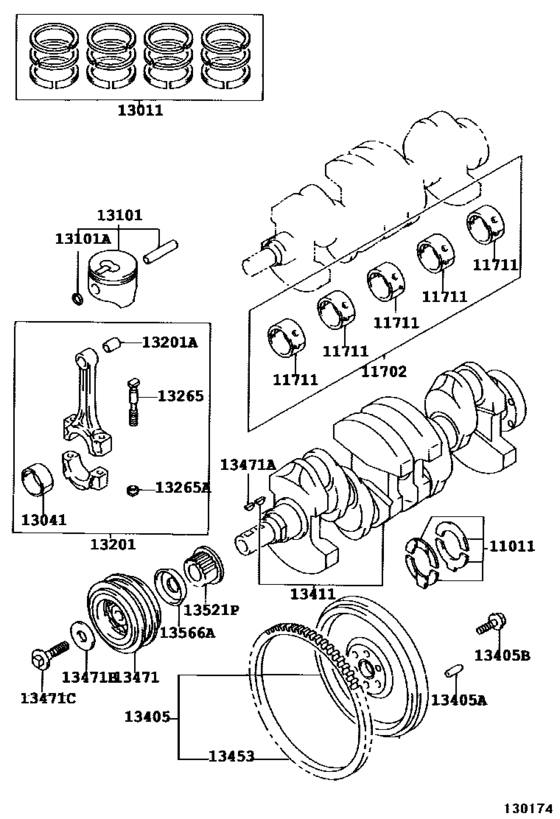

Crankshaft & Piston ([09.1994 - ] (9409- )1NT) 39

#	OEM	Part name
11011	11011-22011	Washer Set, Crankshaft Thrust
11011	11012-22011	Washer Set, Crankshaft Thrust
11011	11013-22011	Washer Set, Crankshaft Thrust
11702	11704-55020	Bearing Set, Crankshaft
11702	11705-55020	Bearing Set, Crankshaft
11711	11701-55020-01	Bearing, Crankshaft
11711	11701-55020-02	Bearing, Crankshaft
11711	11701-55020-03	Bearing, Crankshaft
13011	13011-55011	Ring Set, Piston
13011	13011-55012	Ring Set, Piston
13011	13013-55011	Ring Set, Piston
13011	13013-55012	Ring Set, Piston
13041	13041-55020-01	Bearing, Connecting Rod
13041	13041-55020-02	Bearing, Connecting Rod
13041	13041-55020-03	Bearing, Connecting Rod
13101	13101-55031-01	Piston Sub-Assy, W/pin
13101	13101-55031-02	Piston Sub-Assy, W/pin
13101	13101-55031-03	Piston Sub-Assy, W/pin
13101	13101-55032-01	Piston Sub-Assy, W/pin
13101	13101-55032-02	Piston Sub-Assy, W/pin
13101	13101-55032-03	Piston Sub-Assy, W/pin
13101	13103-55031	Piston Sub-Assy, W/pin
13101	13103-55032	Piston Sub-Assy, W/pin
13101	90521-25003	Ring, Hole Snap(For Piston Pin)
13201	13201-59075	Rod Sub-Assy, Connecting
13201	90999-73109	Bush(For Connecting Rod Small End)
13265	13265-55011	Bolt, Connecting Rod
13265	90179-08118	Nut, Hexagon(For Connecting Rod Bolt)
13405	13405-55011	Flywheel Sub-Assy
13405	90250-08120	Pin, Straight, No.1
13405	90105-10071	Bolt, Flywheel Setting
13411	13411-55900	Crankshaft
13453	13453-55010	Gear, Flywheel Ring
13471	13408-55010	Pulley, Crankshaft
13471	90280-05005	Key(For Oil Pump Drive Spline)
13471	90201-13019	Washer, Plate(For Crankshaft Pulley Set)
13471	90105-12060	Bolt(For Crankshaft Pulley Set)
13521	13521-55010	Pulley, Crankshaft Timing
13566	13566-55010	Guide, Timing Belt

OEM	Part name	Category
11011-22011	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
11012-22011	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
11013-22011	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
11701-55020-01	Bearing, Crankshaft	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
11701-55020-02	Bearing, Crankshaft	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
11701-55020-03	Bearing, Crankshaft	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
11704-55020	Bearing Set, Crankshaft	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
11705-55020	Bearing Set, Crankshaft	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13011-55011	Ring Set, Piston	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13011-55012	Ring Set, Piston	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13013-55011	Ring Set, Piston	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13013-55012	Ring Set, Piston	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13041-55020-01	Bearing, Connecting Rod	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13041-55020-02	Bearing, Connecting Rod	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13041-55020-03	Bearing, Connecting Rod	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13101-55031-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13101-55031-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13101-55031-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13101-55032-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13101-55032-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13101-55032-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13103-55031	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13103-55032	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13201-59075	Rod Sub-Assy, Connecting	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13265-55011	Bolt, Connecting Rod	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13405-55011	Flywheel Sub-Assy	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13408-55010	Pulley, Crankshaft	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13411-55900	Crankshaft	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13453-55010	Gear, Flywheel Ring	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13521-55010	Pulley, Crankshaft Timing	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
13566-55010	Guide, Timing Belt	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
90105-10071	Bolt, Flywheel Setting	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
90105-12060	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
90179-08118	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
90201-13019	Washer, Plate(For Crankshaft Pulley Set)	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
90250-08120	Pin, Straight, No.1	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
90280-05005	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
90521-25003	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
90999-73109	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([09.1994 - ] (9409- )1NT)
