NL50

Toyota COROLLA · 1994 · 4,684 parts · 206 categories

4,684 items

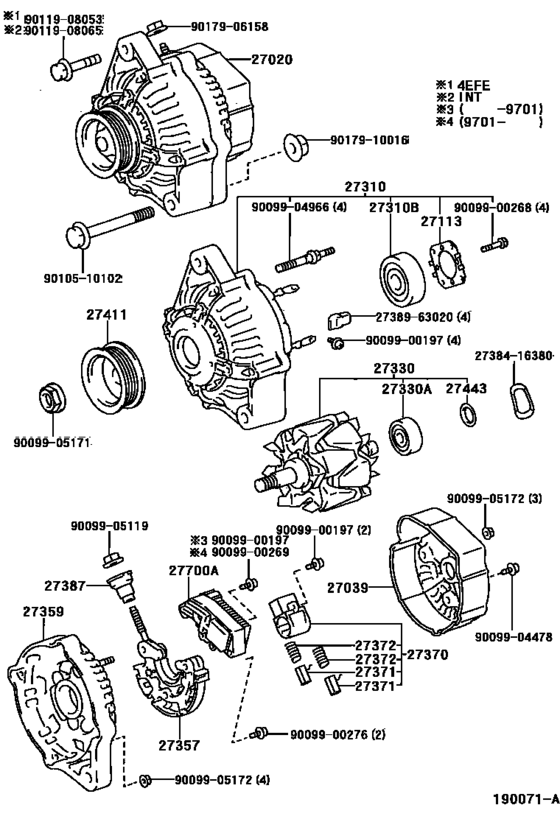

Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F) 65

#	OEM	Part name
27020	27060-55070	Alternator Assy
27020	27060-55100	Alternator Assy
27020	27060-55080	Alternator Assy
27039	27039-16380	Cover, Alternator Rear End
27039	27039-67100	Cover, Alternator Rear End
27039	27039-73020	Cover, Alternator Rear End
27039	27039-55080	Cover, Alternator Rear End
27039	27039-70470	Cover, Alternator Rear End
27113	27312-72100	Plate, Bearing Retainer, Alternator
27113	27312-42010	Plate, Bearing Retainer, Alternator
27310	27310-55050	Frame Assy, Drive End, Alternator
27310	27310-55090	Frame Assy, Drive End, Alternator
27310	90099-10199	Bearing(For Alternator Drive End Frame)
27310	27310-55040	Frame Assy, Drive End, Alternator
27310	90099-10192	Bearing(For Alternator Drive End Frame)
27330	27330-64570	Rotor Assy, Alternator
27330	27330-67100	Rotor Assy, Alternator
27330	27330-72101	Rotor Assy, Alternator
27330	90099-10140	Bearing(For Alternator Rotor)
27330	90099-10216	Bearing(For Alternator Rotor)
27330	27330-76030	Rotor Assy, Alternator
27330	27330-16390	Rotor Assy, Alternator
27357	27357-16380	Holder, Alternator, W/rectifier
27357	27357-63020	Holder, Alternator, W/rectifier
27357	27357-67100	Holder, Alternator, W/rectifier
27357	27357-55080	Holder, Alternator, W/rectifier
27359	27359-16011	Frame, Alternator Rectifier End
27359	27359-16012	Frame, Alternator Rectifier End
27359	27384-16380	Washer
27359	27359-16013	Frame, Alternator Rectifier End
27359	27359-75160	Frame, Alternator Rectifier End
27359	27359-16270	Frame, Alternator Rectifier End
27370	27370-35060	Holder Assy, Alternator Brush
27370	27370-58320	Holder Assy, Alternator Brush
27370	27370-75060	Holder Assy, Alternator Brush
27371	27371-70300	Brush, Alternator
27372	27372-63020	Spring, Alternator Brush
27372	27372-87501	Spring, Alternator Brush
27387	27387-70170	Insulator, Terminal
27387	27387-70171	Insulator, Terminal
27387	27387-42020	Insulator, Terminal
27387	27387-42021	Insulator, Terminal
27411	27411-55010	Pulley, Alternator
27411	27411-55040	Pulley, Alternator
27443	27443-63020	Cover, Alternator Bearing
27700	27700-35040	Regulator Assy, Generator
27700	27700-65010	Regulator Assy, Generator
2738963020	27389-63020	Insulator, Terminal
9009900197	90099-00197	Screw
9009900268	90099-00268	Screw(For Alternator Drive End Frame)
9009900269	90099-00269	New Genuine Part
9009900276	90099-00276	New Genuine Part
9009904478	90099-04478	New Genuine Part
9009904966	90099-04966	Bearing(for Alternator Rotor)
9009905119	90099-05119	New Genuine Part
9009905171	90099-05171	Nut(For Alternator Pulley)
9009905172	90099-05172	New Genuine Part
9010510102	90105-10102	BOLT
9011908053	90119-08053	New Genuine Part
9011908053	91661-40825	New Genuine Part
9011908065	90119-08065	New Genuine Part
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9017910016	90179-10016	Nut(For Counter Gear Shaft)
9017910016	90179-10132	Nut
9331914025	93319-14025	Screw W Washer

OEM	Part name	Category
27039-16380	Cover, Alternator Rear End	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27039-55080	Cover, Alternator Rear End	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27039-67100	Cover, Alternator Rear End	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27039-70470	Cover, Alternator Rear End	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27039-73020	Cover, Alternator Rear End	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27060-55070	Alternator Assy	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27060-55080	Alternator Assy	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27060-55100	Alternator Assy	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27310-55040	Frame Assy, Drive End, Alternator	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27310-55050	Frame Assy, Drive End, Alternator	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27310-55090	Frame Assy, Drive End, Alternator	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27312-42010	Plate, Bearing Retainer, Alternator	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27312-72100	Plate, Bearing Retainer, Alternator	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27330-16390	Rotor Assy, Alternator	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27330-64570	Rotor Assy, Alternator	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27330-67100	Rotor Assy, Alternator	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27330-72101	Rotor Assy, Alternator	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27330-76030	Rotor Assy, Alternator	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27357-16380	Holder, Alternator, W/rectifier	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27357-55080	Holder, Alternator, W/rectifier	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27357-63020	Holder, Alternator, W/rectifier	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27357-67100	Holder, Alternator, W/rectifier	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27359-16011	Frame, Alternator Rectifier End	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27359-16012	Frame, Alternator Rectifier End	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27359-16013	Frame, Alternator Rectifier End	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27359-16270	Frame, Alternator Rectifier End	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27359-75160	Frame, Alternator Rectifier End	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27370-35060	Holder Assy, Alternator Brush	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27370-58320	Holder Assy, Alternator Brush	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27370-75060	Holder Assy, Alternator Brush	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27371-70300	Brush, Alternator	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27372-63020	Spring, Alternator Brush	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27372-87501	Spring, Alternator Brush	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27384-16380	Washer	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27387-42020	Insulator, Terminal	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27387-42021	Insulator, Terminal	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27387-70170	Insulator, Terminal	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27387-70171	Insulator, Terminal	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27389-63020	Insulator, Terminal	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27411-55010	Pulley, Alternator	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27411-55040	Pulley, Alternator	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27443-63020	Cover, Alternator Bearing	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27700-35040	Regulator Assy, Generator	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
27700-65010	Regulator Assy, Generator	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
90099-00197	Screw	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
90099-00268	Screw(For Alternator Drive End Frame)	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
90099-00269	New Genuine Part	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
90099-00276	New Genuine Part	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
90099-04478	New Genuine Part	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
90099-04966	Bearing(for Alternator Rotor)	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
90099-05119	New Genuine Part	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
90099-05171	Nut(For Alternator Pulley)	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
90099-05172	New Genuine Part	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
90099-10140	Bearing(For Alternator Rotor)	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
90099-10192	Bearing(For Alternator Drive End Frame)	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
90099-10199	Bearing(For Alternator Drive End Frame)	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
90099-10216	Bearing(For Alternator Rotor)	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
90105-10102	BOLT	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
90119-08053	New Genuine Part	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
90119-08065	New Genuine Part	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
90179-10016	Nut(For Counter Gear Shaft)	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
90179-10132	Nut	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
91661-40825	New Genuine Part	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
93319-14025	Screw W Washer	Alternator ([09.1994 - ] 12V 70A (9409- )4EFE,1NT..3FC,4FC,5F)
