Search › Model › NL40

NL40

Toyota COROLLA · 1990 · 5,343 parts · 201 categories

5,343 items

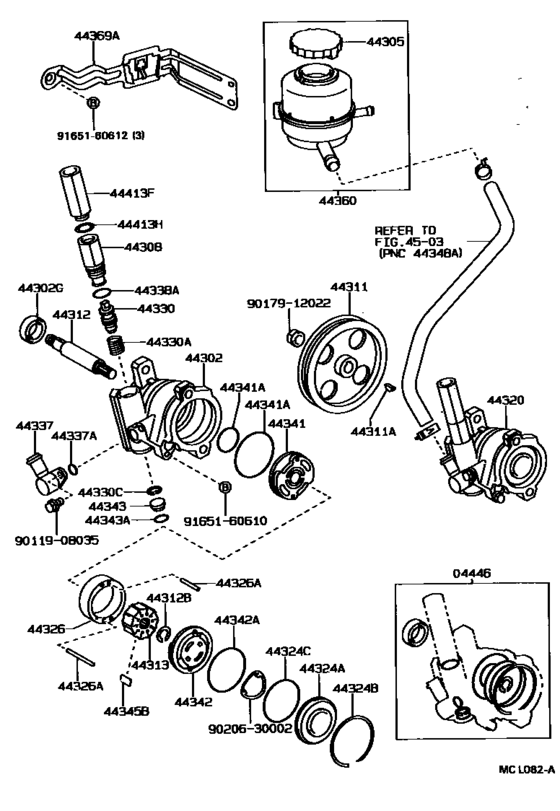

Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40) 67

#	OEM	Part name
4446	04446-16060	Gasket Kit, Power Steering Pump
4446	04446-16061	Gasket Kit, Power Steering Pump
44302	44302-16030	Housing Sub-Assy, Vane Pump, Front
44302	90311-18007	Seal, Oil, No.2(For Vane Pump Housing)
44305	44305-22030	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-22050	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-20050	Union Sub-Assy, Pressure Port
44311	44311-12030	Pulley, Vane Pump
44311	90280-05008	Key, Woodruff(For Distributor Drive Gear)
44312	44312-12030	Shaft, Vane Pump
44312	90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)
44313	44313-22040	Rotor, Vane Pump
44313	44313-22050	Rotor, Vane Pump
44313	44313-22060	Rotor, Vane Pump
44313	44313-22070	Rotor, Vane Pump
44313	44313-22080	Rotor, Vane Pump
44320	44320-16180	Pump Assy, Vane
44324	44324-12031	Housing Sub-Assy, Vane Pump, Rear
44324	90521-62002	Ring, Snap, No.1(For Vane Pump Housing)
44324	90301-52001	Ring, O(For Pump Housing Rear)
44326	44325-12110	Ring, Fixed(For Vane Pump)
44326	44325-12120	Ring, Fixed(For Vane Pump)
44326	44325-12130	Ring, Fixed(For Vane Pump)
44326	44325-12140	Ring, Fixed(For Vane Pump)
44326	44325-12150	Ring, Fixed(For Vane Pump)
44326	90250-04047	Pin, Straight(For Vane Pump Cam Ring)
44326	90250-04049	Pin, Straight(For Vane Pump Cam Ring)
44330	44330-20010	Valve Assy, Flow Control
44330	44330-35191	Valve Assy, Flow Control
44330	44330-20020	Valve Assy, Flow Control
44330	44330-35201	Valve Assy, Flow Control
44330	44330-20030	Valve Assy, Flow Control
44330	44330-35211	Valve Assy, Flow Control
44330	44330-20040	Valve Assy, Flow Control
44330	44330-35221	Valve Assy, Flow Control
44330	44330-20050	Valve Assy, Flow Control
44330	44330-35231	Valve Assy, Flow Control
44330	44330-20060	Valve Assy, Flow Control
44330	44330-35241	Valve Assy, Flow Control
44330	90501-12103	Spring, Compression(For Flow Control Valve)
44330	96151-01700	Ring, Snap(For Flow Control Valve)
44337	44337-16051	Union, Power Steering Suction Port
44337	90301-12003	Ring, O(For Power Steering Suction Port)
44337	90301-11016	Ring, O(For Power Steering Suction Port)
44338	90301-19003	Ring, O(For Pressure Port Union)
44338	90301-19018	Ring, O(For Pressure Port Union)
44341	44341-32010	Plate, Vane Pump Side, Front
44341	90301-25001	Ring, O(For Vane Pump Front Side Plate)
44341	90301-25008	Ring, O(For Vane Pump Front Side Plate)
44342	44342-32010	Plate, Vane Pump Side, Rear
44343	44343-12040	Seat, Flow Control Spring
44343	96711-19014	O-Ring
44345	44345-12010	Plate, Vane Pump
44345	44345-12020	Plate, Vane Pump
44345	44345-12030	Plate, Vane Pump
44345	44345-12040	Plate, Vane Pump
44345	44345-12050	Plate, Vane Pump
44360	44360-10040	Reservoir Assy, Vane Pump Oil
44369	44369-10030	Bracket, Oil Reservoir, No.1
44413	44413-10050	Tube, Pressure Feed, No.2
44413	90430-16242	Gasket, W/head Straight Screw Plug
9011908035	90119-08035	New Genuine Part
9017912022	90179-12022	Nut(For Vane Pump Pulley)
9020630002	90206-30002	New Genuine Part
9165160610	91651-60610	BOLT
9165160610	91651-B0610	BOLTWWASHER
9165160612	91651-60612	BOLT

OEM	Part name	Category
04446-16060	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
04446-16061	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44302-16030	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44305-22030	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44305-22050	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44308-20050	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44311-12030	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44312-12030	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44313-22040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44313-22050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44313-22060	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44313-22070	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44313-22080	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44320-16180	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44324-12031	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44325-12110	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44325-12120	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44325-12130	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44325-12140	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44325-12150	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44330-20010	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44330-20020	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44330-20030	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44330-20040	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44330-20050	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44330-20060	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44330-35191	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44330-35201	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44330-35211	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44330-35221	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44330-35231	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44330-35241	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44337-16051	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44341-32010	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44342-32010	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44343-12040	Seat, Flow Control Spring	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44345-12010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44345-12020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44345-12030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44345-12040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44345-12050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44360-10040	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44369-10030	Bracket, Oil Reservoir, No.1	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
44413-10050	Tube, Pressure Feed, No.2	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
90119-08035	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
90179-12022	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
90206-30002	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
90250-04047	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
90250-04049	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
90280-05008	Key, Woodruff(For Distributor Drive Gear)	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
90301-11016	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
90301-12003	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
90301-19003	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
90301-19018	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
90301-25001	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
90301-25008	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
90301-52001	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
90311-18007	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
90430-16242	Gasket, W/head Straight Screw Plug	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
90501-12103	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
90521-62002	Ring, Snap, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
91651-60610	BOLT	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
91651-60612	BOLT	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
91651-B0610	BOLTWWASHER	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
96151-01700	Ring, Snap(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)
96711-19014	O-Ring	Vane Pump & Reservoir (Power Steering) ([09.1990 - ] (9009- )NL40)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 201
Collected: 2026-08-02
