NL40

Toyota COROLLA · 1990 · 5,343 parts · 201 categories

5,343 items

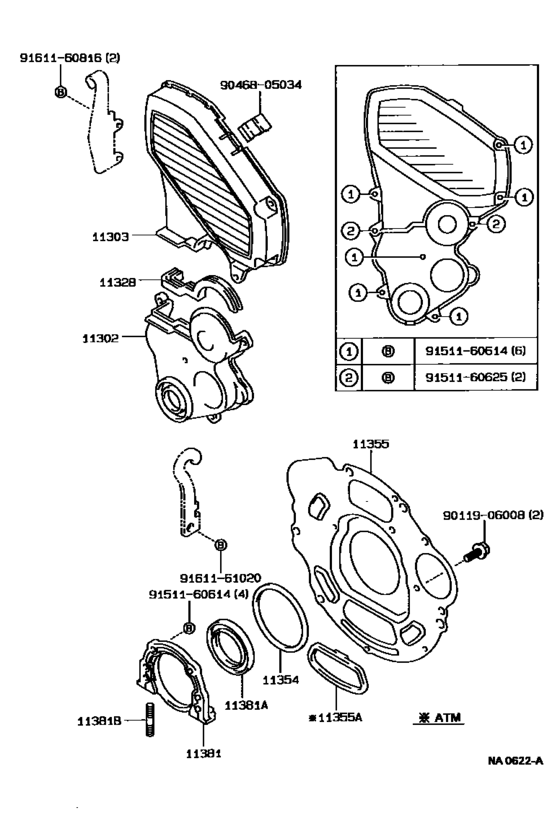

Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT) 22

#	OEM	Part name
11302	11302-55011	Cover Sub-Assy, Timing Chain Or Belt
11303	11303-55020	Cover Sub-Assy, Crankshaft Gear Or Pulley
11328	11328-55010	Gasket, Timing Gear Or Chain Cover
11354	11354-55010	Seal, Flywheel Housing Dust
11355	11355-55020	Plate, Rear End
11355	90950-01548	Plug, Hole(For Rear End Plate)
11355	11355-55012	Plate, Rear End
11381	11381-55010	Retainer, Engine Rear Oil Seal
11381	11381-55011	Retainer, Engine Rear Oil Seal
11381	90311-80009	Seal, Engine Rear Oil
11381	90311-80014	Seal, Engine Rear Oil
11381	90116-06022	Bolt, Stud(For Valve Push Rod Cover)
9011906008	90119-06008	New Genuine Part
9046805034	90468-05034	Timing cover clip
9151160614	91511-60614	LEXBOLT
9151160614	91511-B0614	BOLT, FLANGE
9151160625	91511-60625	Bolt(For Cylinder Head Cover)
9151160625	91511-J0625	Bolt(For Cylinder Head Cover)
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9161161020	91611-61020	Bolt(For Transaxle & Engine Setting)
9161161020	91612-B1020	Bolt (For Transfer Case)Cover No.2

OEM	Part name	Category
11302-55011	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT)
11303-55020	Cover Sub-Assy, Crankshaft Gear Or Pulley	Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT)
11328-55010	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT)
11354-55010	Seal, Flywheel Housing Dust	Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT)
11355-55012	Plate, Rear End	Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT)
11355-55020	Plate, Rear End	Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT)
11381-55010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT)
11381-55011	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT)
90116-06022	Bolt, Stud(For Valve Push Rod Cover)	Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT)
90119-06008	New Genuine Part	Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT)
90311-80009	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT)
90311-80014	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT)
90468-05034	Timing cover clip	Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT)
90950-01548	Plug, Hole(For Rear End Plate)	Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT)
91511-60614	LEXBOLT	Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT)
91511-60625	Bolt(For Cylinder Head Cover)	Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT)
91511-B0614	BOLT, FLANGE	Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT)
91511-J0625	Bolt(For Cylinder Head Cover)	Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT)
91611-61020	Bolt(For Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT)
91611-B0816	Bolt	Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Timing Gear Cover & Rear End Plate ([09.1990 - ] (9009- )1NT)
