NL40

Toyota COROLLA · 1990 · 5,343 parts · 201 categories

5,343 items

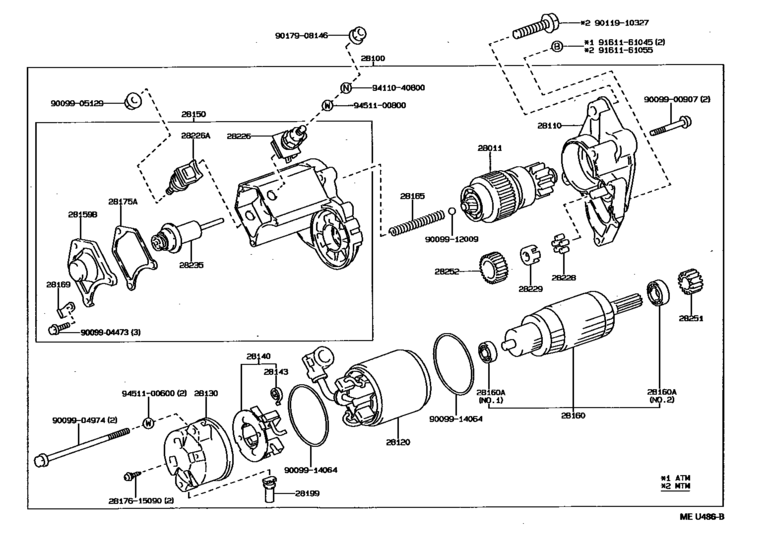

Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT) 82

#	OEM	Part name
28011	28011-55010	Clutch Sub-Assy, Starter
28011	28011-55020	Clutch Sub-Assy, Starter
28011	28011-55050	Clutch Sub-Assy, Starter
28100	28100-55010	Starter Assy
28100	28100-55020	Starter Assy
28100	28100-55040	Starter Assy
28100	28100-55060	Starter Assy
28100	28100-55050	Starter Assy
28110	28110-55010	Housing Assy, Starter Drive
28110	28110-55050	Housing Assy, Starter Drive
28110	28115-55020	Housing Assy, Starter Drive
28120	28120-15090	Yoke Assy, Starter
28120	28120-55050	Yoke Assy, Starter
28120	28120-64020	Yoke Assy, Starter
28120	28120-64130	Yoke Assy, Starter
28130	28130-55010	Frame Assy, Starter Commutator End
28130	28130-55050	Frame Assy, Starter Commutator End
28140	28140-15090	Holder Assy, Starter Brush
28140	28140-54070	Holder Assy, Starter Brush
28140	28140-64130	Holder Assy, Starter Brush
28143	90099-17112	Spring, Starter Brush
28143	90099-17115	Spring, Starter Brush
28150	28150-55010	Switch Assy, Magnet Starter
28150	28150-55020	Switch Assy, Magnet Starter
28150	28150-55040	Switch Assy, Magnet Starter
28150	28150-55050	Switch Assy, Magnet Starter
28159	28159-10040	Cover, Magnet Switch
28159	28159-55050	Cover, Starter Protector
28160	28160-15091	Armature Assy, Starter
28160	28160-54070	Armature Assy, Starter
28160	28160-54071	Armature Assy, Starter
28160	28160-74070	Armature Assy, Starter
28160	28253-54070	Bearing, Starter Armature
28160	90099-10131	Bearing, Starter Armature
28160	90099-10143	Bearing, Starter Armature
28160	90099-10144	Bearing, Starter Armature
28160	90099-10196	Bearing, Starter Armature
28160	90099-10197	Bearing, Starter Armature
28165	28165-26040	Spring, Starter Magnet Switch Return
28165	28165-76070	Spring, Starter Magnet Switch Return
28169	28169-10040	Clamp, Starter Motor Lead Wire
28169	28169-55050	Clamp, Starter Motor Lead Wire
28175	28175-10040	Gasket, Magnet Switch Cover
28175	28175-55050	Gasket, Magnet Switch Cover
28199	28199-46080	Cover, Starter End Frame
28199	28199-72020	Cover, Starter End Frame
28199	28199-74110	Cover, Starter End Frame
28199	28199-77090	Cover, Starter End Frame
28226	28226-55050	Starter Kit, Battery Terminal
28226	28226-64370	Starter Kit, Battery Terminal
28226	28226-64110	Starter Kit, Battery Terminal
28226	28226-76100	Starter Kit, Battery Terminal
28226	28226-54100	Starter Kit, Motor Terminal
28226	28226-72010	Starter Kit, Motor Terminal
28226	28226-74070	Starter Kit, Battery Terminal
28228	28228-26040	Roller, Starter Idle Gear Clutch
28229	28229-26040	Retainer, Starter Idle Gear
28229	28229-74070	Retainer, Starter Idle Gear
28235	28235-35080	Plunger, Magnet Switch
28235	28235-55050	Plunger, Magnet Switch
28251	28251-15090	Pinion, Starter Drive
28251	28251-54070	Plate, Lead, Switch Connecting
28251	28254-64130	Pinion, Starter Drive
28252	28254-54070	Pinion, Starter Drive
2817615090	28176-15090	Screw, Starter
2817615090	28176-87701	Screw, Starter
9009900907	90099-00907	New Genuine Part
9009904473	90099-04473	New Genuine Part
9009904974	90099-04974	New Genuine Part
9009905129	90099-05129	Nut (For Front Wiper Arm Setting)
9009912009	90099-12009	Ball, Starter Clutch
9009914064	90099-14064	Rubber(For Starter Yoke)
9011910327	90119-10327	New Genuine Part
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9161161045	91611-61045	Bolt, Hexagon(For Idle Gear Bolt Lock)
9161161045	91612-61045	Bolt(For Transaxle & Engine Setting)
9161161055	91611-61055	Bolt(For Clutch Release Cylinder Setting)
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451100600	94511-00600	Washer, Lock, No.2
9451100800	94511-00800	WASHERSPRING

OEM	Part name	Category
28011-55010	Clutch Sub-Assy, Starter	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28011-55020	Clutch Sub-Assy, Starter	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28011-55050	Clutch Sub-Assy, Starter	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28100-55010	Starter Assy	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28100-55020	Starter Assy	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28100-55040	Starter Assy	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28100-55050	Starter Assy	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28100-55060	Starter Assy	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28110-55010	Housing Assy, Starter Drive	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28110-55050	Housing Assy, Starter Drive	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28115-55020	Housing Assy, Starter Drive	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28120-15090	Yoke Assy, Starter	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28120-55050	Yoke Assy, Starter	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28120-64020	Yoke Assy, Starter	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28120-64130	Yoke Assy, Starter	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28130-55010	Frame Assy, Starter Commutator End	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28130-55050	Frame Assy, Starter Commutator End	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28140-15090	Holder Assy, Starter Brush	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28140-54070	Holder Assy, Starter Brush	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28140-64130	Holder Assy, Starter Brush	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28150-55010	Switch Assy, Magnet Starter	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28150-55020	Switch Assy, Magnet Starter	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28150-55040	Switch Assy, Magnet Starter	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28150-55050	Switch Assy, Magnet Starter	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28159-10040	Cover, Magnet Switch	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28159-55050	Cover, Starter Protector	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28160-15091	Armature Assy, Starter	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28160-54070	Armature Assy, Starter	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28160-54071	Armature Assy, Starter	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28160-74070	Armature Assy, Starter	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28165-26040	Spring, Starter Magnet Switch Return	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28165-76070	Spring, Starter Magnet Switch Return	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28169-10040	Clamp, Starter Motor Lead Wire	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28169-55050	Clamp, Starter Motor Lead Wire	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28175-10040	Gasket, Magnet Switch Cover	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28175-55050	Gasket, Magnet Switch Cover	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28176-15090	Screw, Starter	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28176-87701	Screw, Starter	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28199-46080	Cover, Starter End Frame	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28199-72020	Cover, Starter End Frame	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28199-74110	Cover, Starter End Frame	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28199-77090	Cover, Starter End Frame	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28226-54100	Starter Kit, Motor Terminal	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28226-55050	Starter Kit, Battery Terminal	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28226-64110	Starter Kit, Battery Terminal	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28226-64370	Starter Kit, Battery Terminal	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28226-72010	Starter Kit, Motor Terminal	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28226-74070	Starter Kit, Battery Terminal	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28226-76100	Starter Kit, Battery Terminal	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28228-26040	Roller, Starter Idle Gear Clutch	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28229-26040	Retainer, Starter Idle Gear	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28229-74070	Retainer, Starter Idle Gear	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28235-35080	Plunger, Magnet Switch	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28235-55050	Plunger, Magnet Switch	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28251-15090	Pinion, Starter Drive	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28251-54070	Plate, Lead, Switch Connecting	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28253-54070	Bearing, Starter Armature	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28254-54070	Pinion, Starter Drive	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
28254-64130	Pinion, Starter Drive	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
90099-00907	New Genuine Part	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
90099-04473	New Genuine Part	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
90099-04974	New Genuine Part	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
90099-05129	Nut (For Front Wiper Arm Setting)	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
90099-10131	Bearing, Starter Armature	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
90099-10143	Bearing, Starter Armature	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
90099-10144	Bearing, Starter Armature	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
90099-10196	Bearing, Starter Armature	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
90099-10197	Bearing, Starter Armature	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
90099-12009	Ball, Starter Clutch	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
90099-14064	Rubber(For Starter Yoke)	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
90099-17112	Spring, Starter Brush	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
90099-17115	Spring, Starter Brush	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
90119-10327	New Genuine Part	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
90179-08146	Nut	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
90179-08204	Nut	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
91611-61045	Bolt, Hexagon(For Idle Gear Bolt Lock)	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
91611-61055	Bolt(For Clutch Release Cylinder Setting)	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
91612-61045	Bolt(For Transaxle & Engine Setting)	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
94110-40800	Nut(For Steering Damper)	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
94130-00802	Nut, No.1 (For Center Support Bearing)	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
94511-00600	Washer, Lock, No.2	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
94511-00800	WASHERSPRING	Starter ([08.1992 - ] 12V 1.4KW (9208- )1NT)
