NL40

Toyota COROLLA · 1990 · 5,343 parts · 201 categories
NL40 ×

← Back to categories

5,343 items

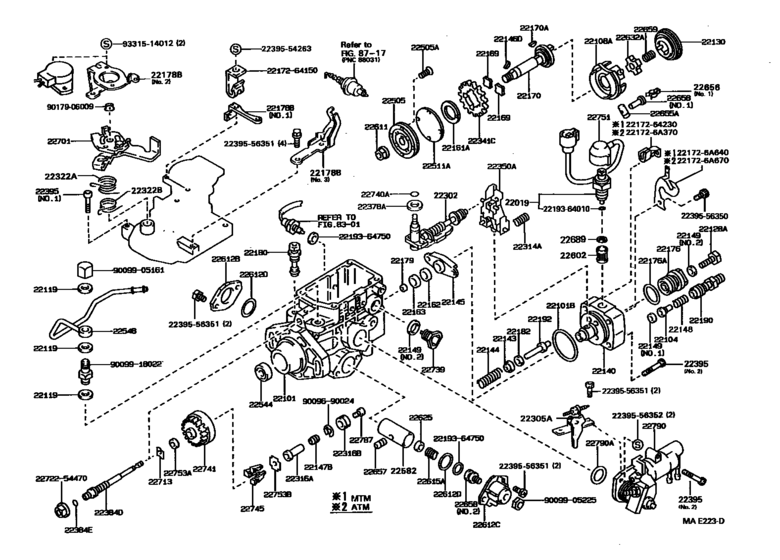

Injection Pump Body ([09.1990 - ] (9009- )1NT) 195
#OEMPart name
22019 22019-6A510 Solenoid Assy, Fuel Cut
22019 22019-6A511 Solenoid Assy, Fuel Cut
22101 22101-54260 Housing Sub-Assy, Injection Pump
22101 90099-14053 Ring, O(For Injection Pump Housing)
22104 22104-55160 Valve Sub-Assy, Injection Pump Delivery
22108 22108-54180 Ring Sub-Assy, Roller
22119 90201-12109 Washer, Air Bleeder Nipple
22128 22128-54010 Bolt, Distributive Head
22129 22129-55110 Plug, Screw
22130 22130-55200 Camplate Sub-Assy, Face
22140 22140-5B270 Head Sub-Assy, Distributive Pump
22143 22143-54010 Seat, Spring Upper
22143 22143-54260 Seat, Spring Upper
22144 22144-54190 Spring, Pump Plunger
22145 22145-54010 Seat, Spring, Lower
22146 90099-13018 Key(For Drive Gear)
22147 22147-54290 Ring, Governor Sleeve
22148 22148-54010 Spring, Delivery Valve
22149 22149-56200 Gasket, Delivery Valve
22149 22149-56351 Gasket, Delivery Valve
22160 22160-64010 Screw Sub-Assy, Overflow
22160 22160-54262 Screw Sub-Assy, Overflow
22161 22161-54010 Washer, Drive Shaft
22162 22162-54010 Plate, Plunger Upper
22163 22163-54010 Plate, Plunger Lower
22169 22169-54180 Joint, Rubber
22170 22170-6A510 Shaft Sub-Assy, Drive
22170 90099-13017 Key(For Drive Gear)
22176 22176-54020 Plug, Distributive Head
22176 90099-14052 Ring, O(For Distributive Head Plug)
22176 22193-54772 Ring, O(For Distributive Head Plug)
22178 22178-55041 Bracket(For Injection Pump Assy)
22178 22178-55200 Bracket(For Injection Pump Assy)
22178 22178-55210 Bracket(For Injection Pump Assy)
22179 22179-54010 Shim, Plunger Adjusting
22179 22179-54011 Shim, Plunger Adjusting
22179 22179-54012 Shim, Plunger Adjusting
22179 22179-54013 Shim, Plunger Adjusting
22179 22179-54014 Shim, Plunger Adjusting
22179 22179-54015 Shim, Plunger Adjusting
22179 22179-54016 Shim, Plunger Adjusting
22179 22179-54017 Shim, Plunger Adjusting
22179 22179-54018 Shim, Plunger Adjusting
22179 22179-54019 Shim, Plunger Adjusting
22179 22179-54020 Shim, Plunger Adjusting
22180 22180-54010 Valve Sub-Assy, Regulator
22182 22182-54010 Plate, Tappet Adjusting Shim
22182 22183-54010 Plate, Tappet Adjusting Shim
22182 22184-54010 Plate, Tappet Adjusting Shim
22182 22185-54010 Plate, Tappet Adjusting Shim
22182 22186-54010 Plate, Tappet Adjusting Shim
22182 22187-54010 Plate, Tappet Adjusting Shim
22182 22188-54010 Plate, Tappet Adjusting Shim
22190 22190-6A290 Holder, Delivery Valve
22192 22192-54010 Plate, Tappet Adjusting Shim
22193 22193-55031 Ring, O(For Lever Connecting Pin)
22302 22302-55200 Shaft Sub-Assy, Speed Control
22305 22305-55200 Idle-Up Sub-Assy
22308 22308-54120 Lever Sub-Assy, Control
22314 22314-54010 Spring, Lever Support
22316 22316-55120 Sleeve, Governor
22316 90099-10148 Bearing, Ball(For Governor Sleeve)
22321 22321-55200 Rod, Push
22322 22322-55040 Spring, Return
22322 22322-64740 Spring, Return
22322 22322-55201 Spring, Return
22327 22327-55030 Spring(For Bellows)
22338 22338-54120 Pin, Lever Connecting
22341 22341-54010 Gear, Governor Drive
22348 22348-54121 Bushing, Guide
22348 22348-54490 Bushing, Guide
22348 22348-64360 Bushing, Guide
22348 90099-01473 Washer(For Guide Bushing)
22350 22350-55030 Governor Assy, Torque Control
22354 22354-77050 Seal, Lead
22355 22355-78030 Wire, Governor Housing Seal
22378 22378-64010 Washer, Governor Thrust
22384 22380-54020 Shaft, Governor
22384 22380-55180 Shaft, Governor
22384 90099-14049 Ring, O(For Governor Main Shaft)
22395 22395-54010 Bolt, Socket(For Injection Pump Governor Cover)
22395 22395-58200 Bolt, Socket(For Injection Pump Governor Cover)
22505 22505-54010 Pump Sub-Assy, Fuel Feed
22505 90099-00723 Screw(For Fuel Feed Pump)
22511 22511-58650 Cover, Feed Pump
22526 22526-54120 Pin, Lever Support
22542 22542-54260 Diaphragm(For Boost Compensator)
22544 22544-64740 Seal, Oil, Injection Pump Camshaft
22546 22546-55030 Spring, Boost Compensator
22547 22547-54260 Shim, Boost Compensator
22547 22547-54261 Shim, Boost Compensator
22547 22547-54262 Shim, Boost Compensator
22547 22547-54263 Shim, Boost Compensator
22547 22547-54264 Shim, Boost Compensator
22547 22547-54268 Shim, Boost Compensator
22547 22547-64360 Shim, Boost Compensator
22548 22548-55030 Nipple, Swivel
22582 22582-55200 Piston Assy, Timer
22602 22602-56350 Filter Sub-Assy, Fuel Injection Pump
22611 90099-05166 Nut, Timer Round
22612 22612-54010 Cover, Timer
22612 22612-56350 Cover, Timer
22612 22612-17010 Cover, Timer
22612 90099-14051 Ring, O, Distributor Housing
22612 22193-17840 Ring, O(For Timer Cover)
22612 90099-14105 Ring, O(For Timer Cover)
22615 22615-55200 Spring, Timer Outer
22615 22615-18020 Spring, Timer Outer
22625 22625-54272 Washer, Timer Adjusting
22632 22632-54010 Coupling, Injection Pump
22655 22655-54010 Pin, Timer Slide
22656 22656-54010 Clip, Timer
22656 22656-17840 Clip, Timer
22656 22656-54490 Clip, Timer
22657 22657-54010 Clip, Timer
22658 22658-17010 Stopper, Timer
22658 22658-54010 Stopper, Timer
22658 22658-17840 Stopper, Timer
22658 22658-64510 Stopper, Timer Slide
22658 22193-54561 Ring, O(For Lever Connecting Pin)
22659 22659-64150 Spring, Coupling
22689 22689-56350 Washer(For Swivel Nipple)
22701 22701-55210 Lever Sub-Assy, Adjusting
22701 22701-55211 Lever Sub-Assy, Adjusting
22701 22701-55200 Lever Sub-Assy, Adjusting
22701 22701-55201 Lever Sub-Assy, Adjusting
22703 22703-64361 Cover Sub-Assy, Governor
22703 22703-55031 Cover, Governor
22713 22713-54010 Washer, Governor Gear Adjusting
22713 22714-54010 Washer, Governor Gear Adjusting
22713 22715-54010 Washer, Governor Gear Adjusting
22713 22716-54010 Washer, Governor Gear Adjusting
22713 22717-54010 Washer, Governor Gear Adjusting
22722 22722-54120 Nut, Governor Shaft Rock
22739 22739-54020 Bolt, Governor Link Support
22739 22739-54120 Bolt, Governor Link Support
22739 22113-77090 Washer, Drain Screw
22739 22149-6D450 Gasket, Delivery Valve
22740 22193-54770 Ring, O(For Governor Adjusting Shaft)
22740 90099-14048 Bearing, Ball(For Governor Sleeve)
22741 22741-54020 Holder Sub-Assy, Flyweight
22745 22745-54010 Flyweight, Distributive Pump
22751 22751-55200 Wire Sub-Assy, Fuel Cut Solenoid
22751 22751-6A220 Wire Sub-Assy, Fuel Cut Solenoid
22753 22753-54010 Washer, Flyweight, No.1
22753 22753-54020 Washer, Flyweight, No.2
22753 22753-54290 Washer, Flyweight, No.1
22774 22774-54010 Gasket, Governor Cover
22774 22774-54270 Gasket, Governor Cover
22775 22775-77121 Nut, Rock
22776 22776-55030 Screw, Smoke Set Adjusting
22776 90099-14047 Ring, O(For Smoke Set Screw)
22776 22193-54771 Ring, O(For Smoke Set Screw)
22777 22777-6A640 Cap, Rubber(For Altitude Compensating Timer Advancer)
22787 22787-54026 Plug, Governor Sleeve
22787 22787-54027 Plug, Governor Sleeve
22787 22787-54028 Plug, Governor Sleeve
22787 22787-54029 Plug, Governor Sleeve
22787 22787-54030 Plug, Governor Sleeve
22787 22787-54031 Plug, Governor Sleeve
22787 22787-54032 Plug, Governor Sleeve
22787 22787-54033 Plug, Governor Sleeve
22787 22787-64640 Plug, Governor Sleeve
22787 22787-64641 Plug, Governor Sleeve
22787 22787-64642 Plug, Governor Sleeve
22787 22787-64643 Plug, Governor Sleeve
22787 22787-64680 Plug, Governor Sleeve
22790 22790-55200 Cover Sub-Assy, Timer
221726 22172-6A370 Clip, Connector Support, Solenoid
221726 22172-6A640 Clip, Connector Support, Solenoid
221726 22172-6A670 Clip, Connector Support, Solenoid
2217264150 22172-64150 Clip, Connector Support, Solenoid
2217264230 22172-64230 Clip, Connector Support, Solenoid
2219364010 22193-64010 Ring, O(For Lever Connecting Pin)
2219364750 22193-64750 Ring, O(For Lever Connecting Pin)
2239554263 22395-54263 Bolt, Socket(for Injection Pump Governor Cover)
2239556350 22395-56350 Bolt, Socket(for Injection Pump Governor Cover)
2239556351 22395-56351 Bolt, Socket(for Injection Pump Governor Cover)
2239556352 22395-56352 Bolt, Socket(for Injection Pump Governor Cover)
2272254470 22722-54470 Nut, Governor Shaft Rock
9009205252 90092-05252 New Genuine Part
9009205252 90099-05252 NUT HEXAGON
9009210608 90092-10608 New Genuine Part
9009220608 90092-20608 New Genuine Part
9009300802 90093-00802 Washer, Plate(For Connecting Pin)
9009690024 90096-90024 Ring, O(For Stopper Lever)
9009904954 90099-04954 BOLT
9009905156 90099-05156 New Genuine Part
9009905161 90099-05161 Nut, Timer Round
9009905181 90099-05181 New Genuine Part
9009905225 90099-05225 NUT
9009918022 90099-18022 SCREW
9017906009 90179-06009 Nut (For Transmission Control Cable)
9017906009 90179-06156 Nut (For Transmission Control Cable)
9331514012 93315-14012 Screw with washer
