NL40

Toyota COROLLA · 1990 · 5,343 parts · 201 categories

5,343 items

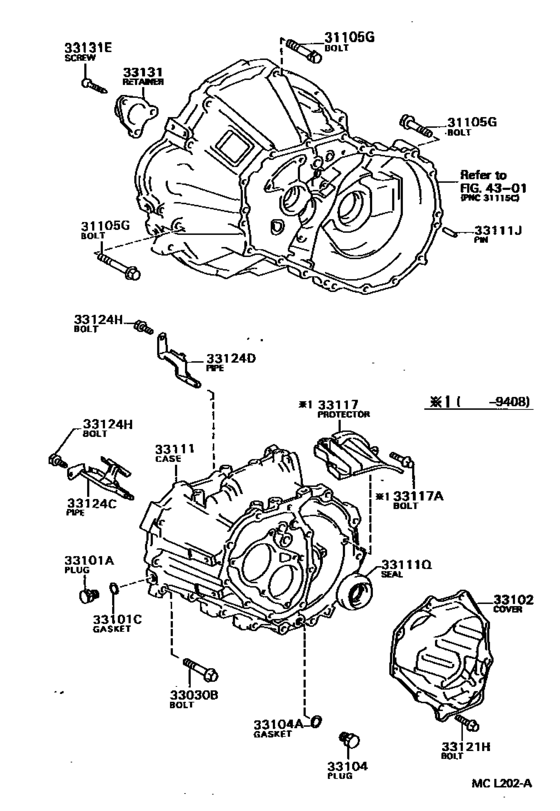

Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F) 36

#	OEM	Part name
31105	90105-10077	Bolt(For Transaxle Case Protector)
31105	90119-12042	Bolt(For Transaxle Case & Engine Setting)
31105	90119-12063	Bolt(For Transaxle Case & Engine Setting)
31105	90119-12168	Bolt(For Transaxle & Engine Setting)
31105	91611-61025	Bolt(For Transaxle & Engine Setting)
31105	91612-61025	Bolt (For Control Shaft Cover)
31105	91621-60614	Bolt(For Transaxle & Engine Setting)
33030	90105-08086	Bolt(For Transaxle Case & Transmission Case Setting)
33101	90341-18006	Plug (No magnet)
33101	90430-18008	Gasket
33102	33102-10020	Cover Sub-Assy, Manual Transmission Case
33102	33102-10023	Cover Sub-Assy, Manual Transmission Case
33102	33102-10021	Cover Sub-Assy, Manual Transmission Case
33102	33102-10022	Cover Sub-Assy, Manual Transmission Case
33111	33111-10071	Case, Manual Transmission
33111	33111-16081	Case, Manual Transmission
33111	33124-10021	Pipe, Oil Receiver, No.2(Mtm)
33111	90109-12073	Bolt (For Shift Inter Lock Plate)
33111	90109-18005	Bolt (For Shift Inter Lock Plate)
33111	33111-16050	Case, Manual Transmission
33111	90250-08054	Pin, Straight
33111	90311-34008	Seal, Oil(For Transmission Case)
33111	90311-34042	Oil Seal, Front Drive Shaft, Lh
33111	90311-34017	Seal, Oil(For Transmission Case)
33117	33117-16010	Protector, Manual Transmission Case
33117	90105-08040	Bolt(For Plate Bolt Lock)
33117	91641-H0820	Bolt
33121	90119-08494	Bolt, W/washer(For Transmission Case Cover)
33121	90119-08373	Bolt, W/washer(For Transmission Case Cover)
33124	33124-10010	Pipe, Oil Receiver, No.1(Mtm)
33124	33124-10020	Pipe, Oil Receiver, No.2(Mtm)
33124	91611-60820	Bolt(For Transaxle & Engine Setting)
33124	91611-G0820	Bolt
33131	33131-12071	Retainer, Bearing, Front(Mtm)
33131	33131-12080	Retainer, Bearing, Front(Mtm)
33131	90149-60028	Screw(For Bearing Retainer Front)

OEM	Part name	Category
33102-10020	Cover Sub-Assy, Manual Transmission Case	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
33102-10021	Cover Sub-Assy, Manual Transmission Case	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
33102-10022	Cover Sub-Assy, Manual Transmission Case	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
33102-10023	Cover Sub-Assy, Manual Transmission Case	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
33111-10071	Case, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
33111-16050	Case, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
33111-16081	Case, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
33117-16010	Protector, Manual Transmission Case	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
33124-10010	Pipe, Oil Receiver, No.1(Mtm)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
33124-10020	Pipe, Oil Receiver, No.2(Mtm)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
33124-10021	Pipe, Oil Receiver, No.2(Mtm)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
33131-12071	Retainer, Bearing, Front(Mtm)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
33131-12080	Retainer, Bearing, Front(Mtm)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
90105-08040	Bolt(For Plate Bolt Lock)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
90105-08086	Bolt(For Transaxle Case & Transmission Case Setting)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
90105-10077	Bolt(For Transaxle Case Protector)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
90109-12073	Bolt (For Shift Inter Lock Plate)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
90109-18005	Bolt (For Shift Inter Lock Plate)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
90119-08373	Bolt, W/washer(For Transmission Case Cover)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
90119-08494	Bolt, W/washer(For Transmission Case Cover)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
90119-12042	Bolt(For Transaxle Case & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
90119-12063	Bolt(For Transaxle Case & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
90119-12168	Bolt(For Transaxle & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
90149-60028	Screw(For Bearing Retainer Front)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
90250-08054	Pin, Straight	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
90311-34008	Seal, Oil(For Transmission Case)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
90311-34017	Seal, Oil(For Transmission Case)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
90311-34042	Oil Seal, Front Drive Shaft, Lh	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
90341-18006	Plug (No magnet)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
90430-18008	Gasket	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
91611-60820	Bolt(For Transaxle & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
91611-61025	Bolt(For Transaxle & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
91611-G0820	Bolt	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
91612-61025	Bolt (For Control Shaft Cover)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
91621-60614	Bolt(For Transaxle & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
91641-H0820	Bolt	Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C153 (9009- )NL40..5F)
