NL40

Toyota COROLLA · 1990 · 5,343 parts · 201 categories

5,343 items

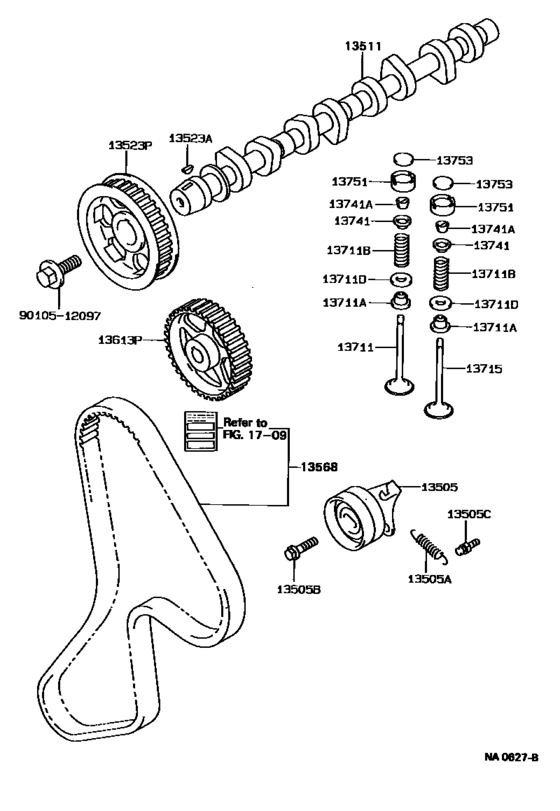

Camshaft & Valve ([09.1990 - ] (9009- )1NT) 38

#	OEM	Part name
13505	13505-55020	Idler Sub-Assy, Timing Belt, No.1
13505	90506-19002	Spring, Tension(For Idler)
13505	90119-08449	Bolt, Flange (For Idler)
13505	13575-55010	Pin(For Idler Spring Tension)
13511	13501-55020	Camshaft
13523	90280-05004	Key, Woodruff(For Timing Gear)
13523	13051-64011	Pulley, Camshaft Timing
13523	13051-64012	Pulley, Camshaft Timing
13568	13568-55010	Belt, Timing
13568	13568-59055	Belt, Timing
13613	13613-64011	Pulley, Injection Pump Drive
13711	13711-55010	Valve, Intake
13711	90913-02062	Seal Or Ring, O(For Valve Stem Oil) (INTAKE SIDE)
13711	90501-35014	Spring, Compression(For Inner)
13711	90201-19008	Washer, Plate(For Valve Spring Seat)
13715	13715-55010	Valve, Exhaust
13741	13741-10020	Retainer, Valve Spring
13741	90913-03021	Seal Or Ring, O(For Valve Stem Oil)
13751	13751-55010	Lifter, Valve
13751	13751-66020	Lifter, Valve
13753	13753-55010	Shim, Valve Adjusting
13753	13753-55030	Shim, Valve Adjusting
13753	13753-55050	Shim, Valve Adjusting
13753	13753-55070	Shim, Valve Adjusting
13753	13753-55090	Shim, Valve Adjusting
13753	13753-55110	Shim, Valve Adjusting
13753	13753-55130	Shim, Valve Adjusting
13753	13753-55150	Shim, Valve Adjusting
13753	13753-55170	Shim, Valve Adjusting
13753	13753-55190	Shim, Valve Adjusting
13753	13753-55210	Shim, Valve Adjusting
13753	13753-55230	Shim, Valve Adjusting
13753	13753-55250	Shim, Valve Adjusting
13753	13753-55270	Shim, Valve Adjusting
13753	13753-55290	Shim, Valve Adjusting
13753	13753-55310	Shim, Valve Adjusting
13753	13753-55330	Shim, Valve Adjusting
9010512097	90105-12097	New Genuine Part

OEM	Part name	Category
13051-64011	Pulley, Camshaft Timing	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13051-64012	Pulley, Camshaft Timing	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13501-55020	Camshaft	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13505-55020	Idler Sub-Assy, Timing Belt, No.1	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13568-55010	Belt, Timing	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13568-59055	Belt, Timing	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13575-55010	Pin(For Idler Spring Tension)	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13613-64011	Pulley, Injection Pump Drive	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13711-55010	Valve, Intake	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13715-55010	Valve, Exhaust	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13741-10020	Retainer, Valve Spring	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13751-55010	Lifter, Valve	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13751-66020	Lifter, Valve	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13753-55010	Shim, Valve Adjusting	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13753-55030	Shim, Valve Adjusting	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13753-55050	Shim, Valve Adjusting	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13753-55070	Shim, Valve Adjusting	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13753-55090	Shim, Valve Adjusting	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13753-55110	Shim, Valve Adjusting	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13753-55130	Shim, Valve Adjusting	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13753-55150	Shim, Valve Adjusting	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13753-55170	Shim, Valve Adjusting	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13753-55190	Shim, Valve Adjusting	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13753-55210	Shim, Valve Adjusting	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13753-55230	Shim, Valve Adjusting	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13753-55250	Shim, Valve Adjusting	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13753-55270	Shim, Valve Adjusting	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13753-55290	Shim, Valve Adjusting	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13753-55310	Shim, Valve Adjusting	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
13753-55330	Shim, Valve Adjusting	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
90105-12097	New Genuine Part	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
90119-08449	Bolt, Flange (For Idler)	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
90201-19008	Washer, Plate(For Valve Spring Seat)	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
90280-05004	Key, Woodruff(For Timing Gear)	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
90501-35014	Spring, Compression(For Inner)	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
90506-19002	Spring, Tension(For Idler)	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
90913-02062	Seal Or Ring, O(For Valve Stem Oil) (INTAKE SIDE)	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
90913-03021	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([09.1990 - ] (9009- )1NT)
