Search › Model › NL40

NL40

Toyota COROLLA · 1990 · 5,343 parts · 201 categories

5,343 items

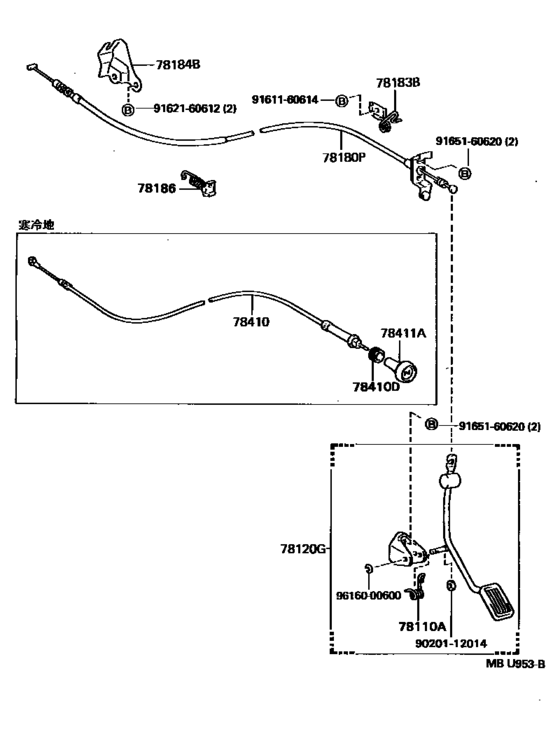

Accelerator Link ([09.1990 - ] (9009- )NL40) 23

#	OEM	Part name
78110	90508-20114	Spring (For Accelerator Pedal Rod)
78110	90508-22002	Spring (For Accelerator Pedal Rod)
78110	90959-03007	Spring (For Accelerator Pedal Rod)
78120	78120-16090	Rod Assy, Accelerator Pedal
78120	78120-16110	Rod Assy, Accelerator Pedal
78180	78180-10520	Cable Assy, Accelerator Control
78180	78180-10530	Cable Assy, Accelerator Control
78180	78180-16370	Cable Assy, Accelerator Control
78180	78180-16390	Cable Assy, Accelerator Control
78183	78183-10060	Clamp, Accelerator Control Cable
78183	78183-10061	Clamp, Accelerator Control Cable
78184	78024-10010	Bracket, Accelerator Control Cable
78186	78186-16090	Support, Accelerator Control Cable, No.1
78410	78410-16020	Cable Assy, Throttle Control
78410	78314-95A00	Nut, Choke Shaft Set
78411	78411-22010	Knob, Throttle Cable
9020112014	90201-12014	New Genuine Part
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9162160612	91621-60612	BOLTWWASHER
9162160612	91621-J0612	BOLT W-WASHER
9165160620	91651-60620	BOLTWWASHER
9616000600	96160-00600	Ring, E(For Clutch Pedal Pawl)

OEM	Part name	Category
78024-10010	Bracket, Accelerator Control Cable	Accelerator Link ([09.1990 - ] (9009- )NL40)
78120-16090	Rod Assy, Accelerator Pedal	Accelerator Link ([09.1990 - ] (9009- )NL40)
78120-16110	Rod Assy, Accelerator Pedal	Accelerator Link ([09.1990 - ] (9009- )NL40)
78180-10520	Cable Assy, Accelerator Control	Accelerator Link ([09.1990 - ] (9009- )NL40)
78180-10530	Cable Assy, Accelerator Control	Accelerator Link ([09.1990 - ] (9009- )NL40)
78180-16370	Cable Assy, Accelerator Control	Accelerator Link ([09.1990 - ] (9009- )NL40)
78180-16390	Cable Assy, Accelerator Control	Accelerator Link ([09.1990 - ] (9009- )NL40)
78183-10060	Clamp, Accelerator Control Cable	Accelerator Link ([09.1990 - ] (9009- )NL40)
78183-10061	Clamp, Accelerator Control Cable	Accelerator Link ([09.1990 - ] (9009- )NL40)
78186-16090	Support, Accelerator Control Cable, No.1	Accelerator Link ([09.1990 - ] (9009- )NL40)
78314-95A00	Nut, Choke Shaft Set	Accelerator Link ([09.1990 - ] (9009- )NL40)
78410-16020	Cable Assy, Throttle Control	Accelerator Link ([09.1990 - ] (9009- )NL40)
78411-22010	Knob, Throttle Cable	Accelerator Link ([09.1990 - ] (9009- )NL40)
90201-12014	New Genuine Part	Accelerator Link ([09.1990 - ] (9009- )NL40)
90508-20114	Spring (For Accelerator Pedal Rod)	Accelerator Link ([09.1990 - ] (9009- )NL40)
90508-22002	Spring (For Accelerator Pedal Rod)	Accelerator Link ([09.1990 - ] (9009- )NL40)
90959-03007	Spring (For Accelerator Pedal Rod)	Accelerator Link ([09.1990 - ] (9009- )NL40)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Accelerator Link ([09.1990 - ] (9009- )NL40)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Accelerator Link ([09.1990 - ] (9009- )NL40)
91621-60612	BOLTWWASHER	Accelerator Link ([09.1990 - ] (9009- )NL40)
91621-J0612	BOLT W-WASHER	Accelerator Link ([09.1990 - ] (9009- )NL40)
91651-60620	BOLTWWASHER	Accelerator Link ([09.1990 - ] (9009- )NL40)
96160-00600	Ring, E(For Clutch Pedal Pawl)	Accelerator Link ([09.1990 - ] (9009- )NL40)
