Search › Model › NKE165

NKE165

Toyota COROLLA-AXIO-FIELDER · 2013 · 3,455 parts · 183 categories

3,455 items

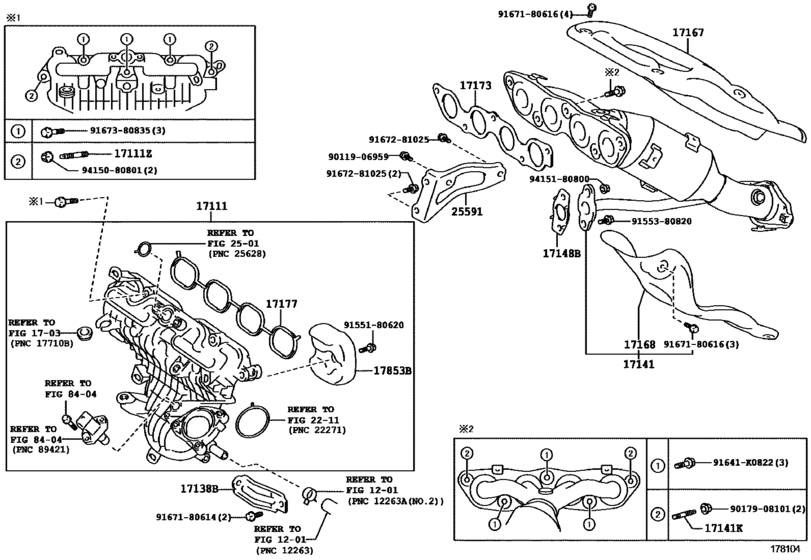

Manifold ([07.2013 - ] (1307- )1NZFXE) 27

#	OEM	Part name
17111	17120-21060	Manifold, Intake
17111	90126-08026	Bolt, Stud(For Intake Manifold To Cylinder Head)
17138	17138-21020	Stay, Intake Manifold
17141	17140-21080	Manifold, Exhaust
17141	90126-08037	Bolt, Stud(For Oil Strainer)
17148	25634-21020	Gasket, Egr Inlet
17167	17167-21170	Insulator, Exhaust Manifold Heat, No.1
17167	17167-21171	Insulator, Exhaust Manifold Heat, No.1
17168	17168-21060	Insulator, Exhaust Manifold Heat, No.2
17168	17168-21061	Insulator, Exhaust Manifold Heat, No.2
17173	17173-21020	Gasket, Exhaust Manifold To Head
17177	17177-21040	Gasket, Intake Manifold To Head, No.1
17853	17853-21010	Insulator, Intake Manifold
25591	25591-21070	Bracket, Manifold Support
25591	25591-21090	Bracket, Manifold Support
25591	25591-21110	Bracket, Manifold Support
91641	91641-K0822	BOLT WWASHER
9011906959	90119-06959	New Genuine Part
9017908101	90179-08101	NUT
9155180620	91551-80620	Bolt
9155380820	91553-80820	BOLTFLANGE
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9167180616	91671-80616	BOLT FLANGE
9167281025	91672-81025	Bolt, Center Support Bearing Bracket
9167380835	91673-80835	New Genuine Part
9415080801	94150-80801	Nut
9415180800	94151-80800	Nut (For Transmission Control Cable)

OEM	Part name	Category
17120-21060	Manifold, Intake	Manifold ([07.2013 - ] (1307- )1NZFXE)
17138-21020	Stay, Intake Manifold	Manifold ([07.2013 - ] (1307- )1NZFXE)
17140-21080	Manifold, Exhaust	Manifold ([07.2013 - ] (1307- )1NZFXE)
17167-21170	Insulator, Exhaust Manifold Heat, No.1	Manifold ([07.2013 - ] (1307- )1NZFXE)
17167-21171	Insulator, Exhaust Manifold Heat, No.1	Manifold ([07.2013 - ] (1307- )1NZFXE)
17168-21060	Insulator, Exhaust Manifold Heat, No.2	Manifold ([07.2013 - ] (1307- )1NZFXE)
17168-21061	Insulator, Exhaust Manifold Heat, No.2	Manifold ([07.2013 - ] (1307- )1NZFXE)
17173-21020	Gasket, Exhaust Manifold To Head	Manifold ([07.2013 - ] (1307- )1NZFXE)
17177-21040	Gasket, Intake Manifold To Head, No.1	Manifold ([07.2013 - ] (1307- )1NZFXE)
17853-21010	Insulator, Intake Manifold	Manifold ([07.2013 - ] (1307- )1NZFXE)
25591-21070	Bracket, Manifold Support	Manifold ([07.2013 - ] (1307- )1NZFXE)
25591-21090	Bracket, Manifold Support	Manifold ([07.2013 - ] (1307- )1NZFXE)
25591-21110	Bracket, Manifold Support	Manifold ([07.2013 - ] (1307- )1NZFXE)
25634-21020	Gasket, Egr Inlet	Manifold ([07.2013 - ] (1307- )1NZFXE)
90119-06959	New Genuine Part	Manifold ([07.2013 - ] (1307- )1NZFXE)
90126-08026	Bolt, Stud(For Intake Manifold To Cylinder Head)	Manifold ([07.2013 - ] (1307- )1NZFXE)
90126-08037	Bolt, Stud(For Oil Strainer)	Manifold ([07.2013 - ] (1307- )1NZFXE)
90179-08101	NUT	Manifold ([07.2013 - ] (1307- )1NZFXE)
91551-80620	Bolt	Manifold ([07.2013 - ] (1307- )1NZFXE)
91553-80820	BOLTFLANGE	Manifold ([07.2013 - ] (1307- )1NZFXE)
91641-K0822	BOLT WWASHER	Manifold ([07.2013 - ] (1307- )1NZFXE)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Manifold ([07.2013 - ] (1307- )1NZFXE)
91671-80616	BOLT FLANGE	Manifold ([07.2013 - ] (1307- )1NZFXE)
91672-81025	Bolt, Center Support Bearing Bracket	Manifold ([07.2013 - ] (1307- )1NZFXE)
91673-80835	New Genuine Part	Manifold ([07.2013 - ] (1307- )1NZFXE)
94150-80801	Nut	Manifold ([07.2013 - ] (1307- )1NZFXE)
94151-80800	Nut (For Transmission Control Cable)	Manifold ([07.2013 - ] (1307- )1NZFXE)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 183
Collected: 2026-08-02
