NKE165

Toyota COROLLA-AXIO-FIELDER · 2013 · 3,455 parts · 183 categories

← Back to categories

3,455 items

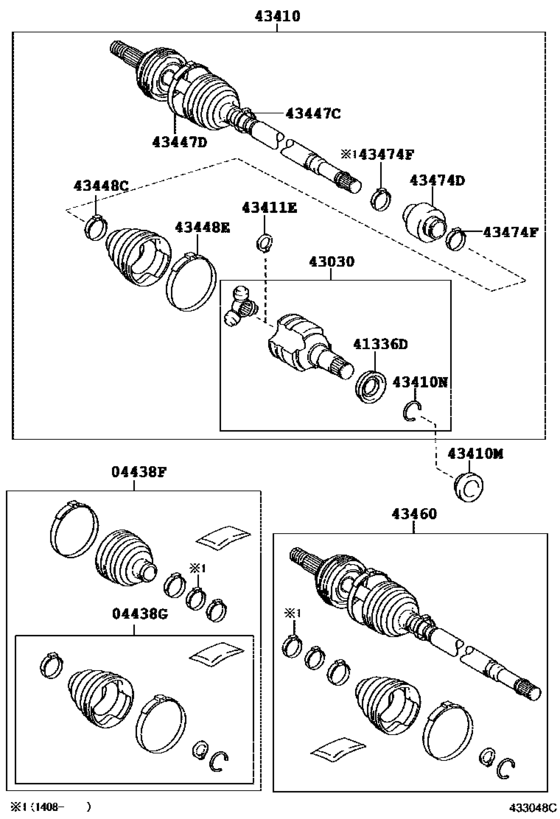

Front Drive Shaft ([07.2013 - ] ﾗｲﾄ (1307- )NKE165) 18

#	OEM	Part name
4438	04427-47051	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04427-47052	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04437-47021	Boot Kit, Front Drive Shaft Inboard Joint, Rh
4438	04437-52460	Boot Kit, Front Drive Shaft Inboard Joint, Rh
41336	41336-12060	Cover, Front Drive Shaft Dust, Rh
43030	43030-52070	Joint Assy, Front Drive Inboard, Rh
43410	43410-52350	Shaft Assy, Front Drive, Rh
43410	90311-35065	Oil Seal, Front Drive Shaft, Rh
43410	90521-27005	Ring, Hole Snap (For Rear Differential Side Gear Shaft)
43411	90520-22001	Ring, Shaft Snap (For Front Drive Inner Shaft Inner)
43447	42345-52260	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	42345-52250	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43448	90949-01078	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43448	90949-01146	Clamp, No.2 (For Front Axle Inboard Joint Boot Setting)
43460	43460-59805	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43460-59806	Shaft Assy, Front Drive Outboard Joint, Rh
43474	43474-52030	Damper, Drive Shaft
43474	42345-14010	Clamp, Rear Drive Shaft Boot

OEM	Part name	Category
04427-47051	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([07.2013 - ] ﾗｲﾄ (1307- )NKE165)
04427-47052	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([07.2013 - ] ﾗｲﾄ (1307- )NKE165)
04437-47021	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([07.2013 - ] ﾗｲﾄ (1307- )NKE165)
04437-52460	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([07.2013 - ] ﾗｲﾄ (1307- )NKE165)
41336-12060	Cover, Front Drive Shaft Dust, Rh	Front Drive Shaft ([07.2013 - ] ﾗｲﾄ (1307- )NKE165)
42345-14010	Clamp, Rear Drive Shaft Boot	Front Drive Shaft ([07.2013 - ] ﾗｲﾄ (1307- )NKE165)
42345-52250	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([07.2013 - ] ﾗｲﾄ (1307- )NKE165)
42345-52260	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([07.2013 - ] ﾗｲﾄ (1307- )NKE165)
43030-52070	Joint Assy, Front Drive Inboard, Rh	Front Drive Shaft ([07.2013 - ] ﾗｲﾄ (1307- )NKE165)
43410-52350	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([07.2013 - ] ﾗｲﾄ (1307- )NKE165)
43460-59805	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([07.2013 - ] ﾗｲﾄ (1307- )NKE165)
43460-59806	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([07.2013 - ] ﾗｲﾄ (1307- )NKE165)
43474-52030	Damper, Drive Shaft	Front Drive Shaft ([07.2013 - ] ﾗｲﾄ (1307- )NKE165)
90311-35065	Oil Seal, Front Drive Shaft, Rh	Front Drive Shaft ([07.2013 - ] ﾗｲﾄ (1307- )NKE165)
90520-22001	Ring, Shaft Snap (For Front Drive Inner Shaft Inner)	Front Drive Shaft ([07.2013 - ] ﾗｲﾄ (1307- )NKE165)
90521-27005	Ring, Hole Snap (For Rear Differential Side Gear Shaft)	Front Drive Shaft ([07.2013 - ] ﾗｲﾄ (1307- )NKE165)
90949-01078	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([07.2013 - ] ﾗｲﾄ (1307- )NKE165)
90949-01146	Clamp, No.2 (For Front Axle Inboard Joint Boot Setting)	Front Drive Shaft ([07.2013 - ] ﾗｲﾄ (1307- )NKE165)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 183
Collected: 2026-08-02
