NKE165

Toyota COROLLA-AXIO-FIELDER · 2013 · 3,455 parts · 183 categories

3,455 items

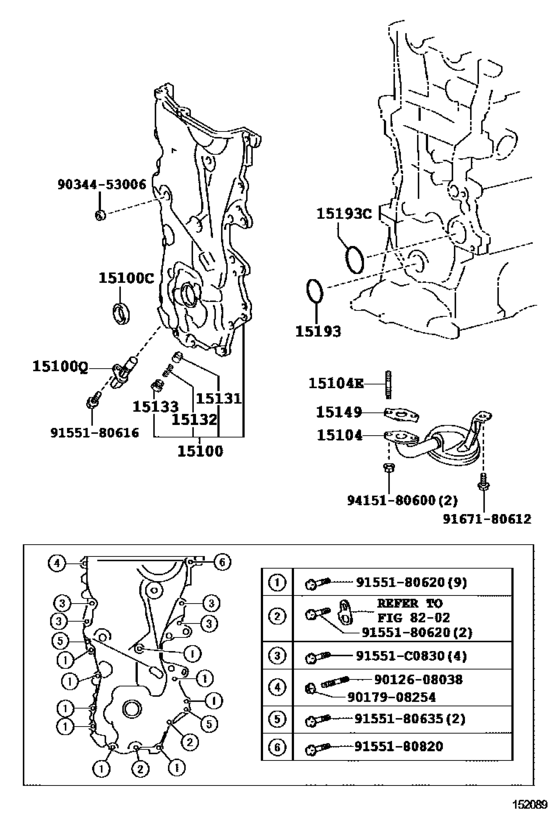

Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE) 23

#	OEM	Part name
15100	15100-21071	Pump Assy, Oil
15100	15100-21072	Pump Assy, Oil
15100	90311-25032	Seal, Oil(For Timing Chain Or Belt Cover)
15100	90311-25033	Seal(For Oil Pump)
15100	90919-05087	Sensor, Crank Position
15104	15104-21022	Strainer Sub-Assy, Oil
15104	90126-06021	Bolt, Stud(For Oil Strainer)
15131	15131-21020	Valve, Oil Pump Relief
15132	15132-21050	Spring, Oil Pump Relief Valve
15133	15133-21030	Plug, Oil Pump Relief Valve
15149	16258-21030	Gasket, Oil Strainer Flange
15193	12151-21010	Ring, O(For Oil Pump)
15193	11497-21010	Ring, O(For Oil Pump)
91551	91551-C0830	BOLT FLANGE
9012608038	90126-08038	New Genuine Part
9017908254	90179-08254	NUT
9034453006	90344-53006	Plug, Tight, No.1(For Timing Gear Cover)
9155180616	91551-80616	BOLT FLANGE
9155180620	91551-80620	Bolt
9155180635	91551-80635	Bolt(For Head To Camshaft Bearing Cap)
9155180820	91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)
9167180612	91671-80612	Bolt
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
11497-21010	Ring, O(For Oil Pump)	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)
12151-21010	Ring, O(For Oil Pump)	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)
15100-21071	Pump Assy, Oil	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)
15100-21072	Pump Assy, Oil	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)
15104-21022	Strainer Sub-Assy, Oil	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)
15131-21020	Valve, Oil Pump Relief	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)
15132-21050	Spring, Oil Pump Relief Valve	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)
15133-21030	Plug, Oil Pump Relief Valve	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)
16258-21030	Gasket, Oil Strainer Flange	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)
90126-06021	Bolt, Stud(For Oil Strainer)	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)
90126-08038	New Genuine Part	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)
90179-08254	NUT	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)
90311-25032	Seal, Oil(For Timing Chain Or Belt Cover)	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)
90311-25033	Seal(For Oil Pump)	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)
90344-53006	Plug, Tight, No.1(For Timing Gear Cover)	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)
90919-05087	Sensor, Crank Position	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)
91551-80616	BOLT FLANGE	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)
91551-80620	Bolt	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)
91551-80635	Bolt(For Head To Camshaft Bearing Cap)	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)
91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)
91551-C0830	BOLT FLANGE	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)
91671-80612	Bolt	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Engine Oil Pump ([07.2013 - ] (1307- )1NZFXE)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 183
Collected: 2026-08-02
