Search › Model › NKE165

NKE165

Toyota COROLLA-AXIO-FIELDER · 2013 · 3,455 parts · 183 categories

3,455 items

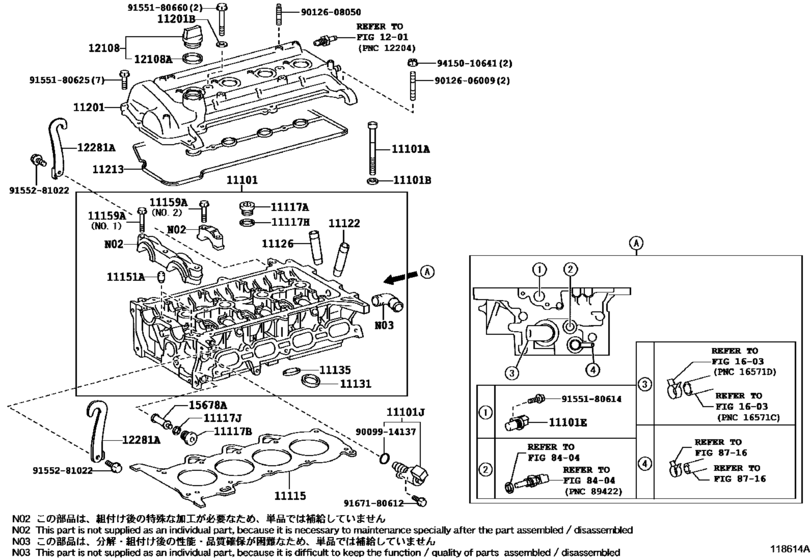

Cylinder Head ([07.2013 - ] (1307- )1NZFXE) 40

#	OEM	Part name
11101	11101-21080	Head Sub-Assy, Cylinder
11101	90910-02170	Bolt(For Cylinder Head Set)
11101	90201-09024	Washer, Plate(For Cylinder Head Set)
11101	90919-05024	Sensor, Cam Position
11101	15330-21030	Valve Assy, Camshaft Timing Oil Control
11101	15330-21040	Valve Assy, Camshaft Timing Oil Control
11115	11115-21090	Gasket, Cylinder Head
11115	11115-21091	Gasket, Cylinder Head
11117	90341-20002	Plug, W/head Taper Screw, No.1
11117	90341-14013	Plug, W/head Taper Screw, No.1
11117	90430-20004	Gasket(For Cylinder Head Screw Plug)
11117	90430-14009	Gasket(For Cylinder Head Screw Plug)
11122	11122-21010	Bush, Intake Valve Guide
11122	11123-21010	Bush, Intake Valve Guide
11131	11131-21020	Seat, Intake Valve
11131	11131-21021	Seat, Intake Valve
11131	11132-21020	Seat, Intake Valve
11131	11132-21021	Seat, Intake Valve
11135	11135-21040	Seat, Exhaust Valve
11135	11136-21040	Seat, Exhaust Valve
11151	90250-06001	Pin, Straight
11159	90109-06080	Bolt, Stud(For Head To Cylinder Head Cover)
11159	90119-08A29	Bolt(For Head To Camshaft Bearing Cap)
11201	11201-21080	Cover Sub-Assy, Cylinder Head
11201	90210-05008	Washer, Seal(For Cylinder Head Cover)
11201	90210-06013	Washer, Seal(For Cylinder Head Cover)
11213	11213-21011	Gasket, Cylinder Head Cover
12108	12180-38010	Cap Sub-Assy, Oil Filler
12108	90430-35001	Gasket(For Oil Filler Cap)
12281	12281-21090	Hanger, Engine, No.1
15678	15678-21010	Filter, Oil Control Valve
9009914137	90099-14137	Ring, O(For Cam Timing Oil Control Valve)
9012606009	90126-06009	STUD HEX LOBULAR
9012608050	90126-08050	New Genuine Part
9155180614	91551-80614	Bolt(For Vacuum Transmitting Pipe)
9155180625	91551-80625	Bolt(For Camshaft Housing Set)
9155180660	91551-80660	BOLT FLANGE
9155281022	91552-81022	New Genuine Part
9167180612	91671-80612	Bolt
9415010641	94150-10641	Nut

OEM	Part name	Category
11101-21080	Head Sub-Assy, Cylinder	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
11115-21090	Gasket, Cylinder Head	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
11115-21091	Gasket, Cylinder Head	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
11122-21010	Bush, Intake Valve Guide	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
11123-21010	Bush, Intake Valve Guide	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
11131-21020	Seat, Intake Valve	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
11131-21021	Seat, Intake Valve	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
11132-21020	Seat, Intake Valve	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
11132-21021	Seat, Intake Valve	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
11135-21040	Seat, Exhaust Valve	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
11136-21040	Seat, Exhaust Valve	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
11201-21080	Cover Sub-Assy, Cylinder Head	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
11213-21011	Gasket, Cylinder Head Cover	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
12180-38010	Cap Sub-Assy, Oil Filler	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
12281-21090	Hanger, Engine, No.1	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
15330-21030	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
15330-21040	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
15678-21010	Filter, Oil Control Valve	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
90099-14137	Ring, O(For Cam Timing Oil Control Valve)	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
90109-06080	Bolt, Stud(For Head To Cylinder Head Cover)	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
90119-08A29	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
90126-06009	STUD HEX LOBULAR	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
90126-08050	New Genuine Part	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
90201-09024	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
90210-05008	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
90210-06013	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
90250-06001	Pin, Straight	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
90341-14013	Plug, W/head Taper Screw, No.1	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
90341-20002	Plug, W/head Taper Screw, No.1	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
90430-14009	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
90430-20004	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
90430-35001	Gasket(For Oil Filler Cap)	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
90910-02170	Bolt(For Cylinder Head Set)	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
90919-05024	Sensor, Cam Position	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
91551-80614	Bolt(For Vacuum Transmitting Pipe)	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
91551-80625	Bolt(For Camshaft Housing Set)	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
91551-80660	BOLT FLANGE	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
91552-81022	New Genuine Part	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
91671-80612	Bolt	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
94150-10641	Nut	Cylinder Head ([07.2013 - ] (1307- )1NZFXE)
