Search › Model › NKE165

NKE165

Toyota COROLLA-AXIO-FIELDER · 2013 · 3,455 parts · 183 categories

3,455 items

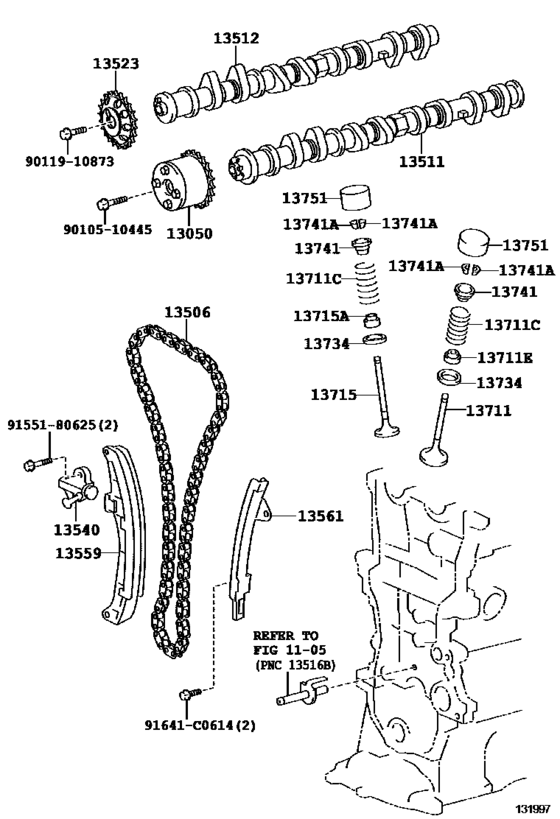

Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE) 94

#	OEM	Part name
13050	13050-21041	Gear Assy, Camshaft Timing
13506	13506-21050	Chain Sub-Assy
13511	13501-21070	Camshaft
13512	13502-21021	Camshaft, No.2
13523	13523-22020	Gear Or Sprocket, Camshaft Timing
13540	13540-21020	Tensioner Assy, Chain, No.1
13559	13559-21010	Slipper, Chain Tensioner
13559	13559-21030	Slipper, Chain Tensioner
13559	13559-21031	Slipper, Chain Tensioner - Chain Tensioner Guide
13561	13561-21010	Damper, Chain Vibration, No.1
13561	13561-21040	Damper, Chain Vibration, No.1
13711	13711-21010	Valve, Intake
13711	90501-23135	Spring, Compression(For Outer)
13711	90913-02093	Seal Or Ring, O(For Valve Stem Oil)
13715	13715-21010	Valve, Exhaust
13715	90913-02092	Seal Or Ring, O(For Valve Stem Oil)
13715	90913-02128	Seal, Exhaust Valve Stem Oil
13734	13734-74010	Seat, Valve Spring
13741	13741-22021	Retainer, Valve Spring
13741	90913-03031	Lock, Valve Spring Retainer
13751	13751-21380	Lifter, Valve
13751	13751-21390	Lifter, Valve
13751	13751-21400	Lifter, Valve
13751	13751-21410	Lifter, Valve
13751	13751-21420	Lifter, Valve
13751	13751-21430	Lifter, Valve
13751	13751-21440	Lifter, Valve
13751	13751-21450	Lifter, Valve
13751	13751-21460	Lifter, Valve
13751	13751-21470	Lifter, Valve
13751	13751-21480	Lifter, Valve
13751	13751-21490	Lifter, Valve
13751	13751-21500	Lifter, Valve
13751	13751-21510	Lifter, Valve
13751	13751-21520	Lifter, Valve
13751	13751-21530	Lifter, Valve
13751	13751-21540	Lifter, Valve
13751	13751-21550	Lifter, Valve
13751	13751-21560	Lifter, Valve
13751	13751-21570	Lifter, Valve
13751	13751-21580	Lifter, Valve
13751	13751-21590	Lifter, Valve
13751	13751-21600	Lifter, Valve
13751	13751-21610	Lifter, Valve
13751	13751-21620	Lifter, Valve
13751	13751-21630	Lifter, Valve
13751	13751-21640	Lifter, Valve
13751	13751-21650	Lifter, Valve
13751	13751-21660	Lifter, Valve
13751	13751-21670	Lifter, Valve
13751	13751-21680	Lifter, Valve
13751	13751-21690	Lifter, Valve
13751	13751-21700	Lifter, Valve
13751	13751-21710	Lifter, Valve
13751	13751-21720	Lifter, Valve
13751	13751-46030	Lifter, Valve
13751	13751-46040	Lifter, Valve
13751	13751-46050	Lifter, Valve
13751	13751-46060	Lifter, Valve
13751	13751-46070	Lifter, Valve
13751	13751-46080	Lifter, Valve
13751	13751-46090	Lifter, Valve
13751	13751-46100	Lifter, Valve
13751	13751-46110	Lifter, Valve
13751	13751-46120	Lifter, Valve
13751	13751-46130	Lifter, Valve
13751	13751-46140	Lifter, Valve
13751	13751-46150	Lifter, Valve
13751	13751-46160	Lifter, Valve
13751	13751-46170	Lifter, Valve
13751	13751-46180	Lifter, Valve
13751	13751-46190	Lifter, Valve
13751	13751-46200	Lifter, Valve
13751	13751-46210	Lifter, Valve
13751	13751-46220	Lifter, Valve
13751	13751-46230	Lifter, Valve
13751	13751-46240	Lifter, Valve
13751	13751-46250	Lifter, Valve
13751	13751-46260	Lifter, Valve
13751	13751-46270	Lifter, Valve
13751	13751-46280	Lifter, Valve
13751	13751-46290	Lifter, Valve
13751	13751-46300	Lifter, Valve
13751	13751-46310	Lifter, Valve
13751	13751-46320	Lifter, Valve
13751	13751-46330	Lifter, Valve
13751	13751-46340	Lifter, Valve
13751	13751-46350	Lifter, Valve
13751	13751-46360	Lifter, Valve
13751	13751-46370	Lifter, Valve
91641	91641-C0614	Bolt
9010510445	90105-10445	BOLT, WASHER BASED
9011910873	90119-10873	New Genuine Part
9155180625	91551-80625	Bolt(For Camshaft Housing Set)

OEM	Part name	Category
13050-21041	Gear Assy, Camshaft Timing	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13501-21070	Camshaft	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13502-21021	Camshaft, No.2	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13506-21050	Chain Sub-Assy	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13523-22020	Gear Or Sprocket, Camshaft Timing	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13540-21020	Tensioner Assy, Chain, No.1	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13559-21010	Slipper, Chain Tensioner	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13559-21030	Slipper, Chain Tensioner	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13559-21031	Slipper, Chain Tensioner - Chain Tensioner Guide	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13561-21010	Damper, Chain Vibration, No.1	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13561-21040	Damper, Chain Vibration, No.1	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13711-21010	Valve, Intake	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13715-21010	Valve, Exhaust	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13734-74010	Seat, Valve Spring	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13741-22021	Retainer, Valve Spring	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21380	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21390	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21400	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21410	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21420	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21430	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21440	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21450	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21460	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21470	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21480	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21490	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21500	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21510	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21520	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21530	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21540	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21550	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21560	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21570	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21580	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21590	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21600	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21610	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21620	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21630	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21640	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21650	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21660	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21670	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21680	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21690	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21700	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21710	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-21720	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46030	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46040	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46050	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46060	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46070	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46080	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46090	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46100	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46110	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46120	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46130	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46140	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46150	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46160	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46170	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46180	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46190	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46200	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46210	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46220	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46230	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46240	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46250	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46260	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46270	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46280	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46290	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46300	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46310	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46320	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46330	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46340	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46350	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46360	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
13751-46370	Lifter, Valve	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
90105-10445	BOLT, WASHER BASED	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
90119-10873	New Genuine Part	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
90501-23135	Spring, Compression(For Outer)	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
90913-02092	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
90913-02093	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
90913-02128	Seal, Exhaust Valve Stem Oil	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
90913-03031	Lock, Valve Spring Retainer	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
91551-80625	Bolt(For Camshaft Housing Set)	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)
91641-C0614	Bolt	Camshaft & Valve ([07.2013 - ] (1307- )1NZFXE)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 183
Collected: 2026-08-02
