NKE165

Toyota COROLLA-AXIO-FIELDER · 2013 · 3,455 parts · 183 categories

3,455 items

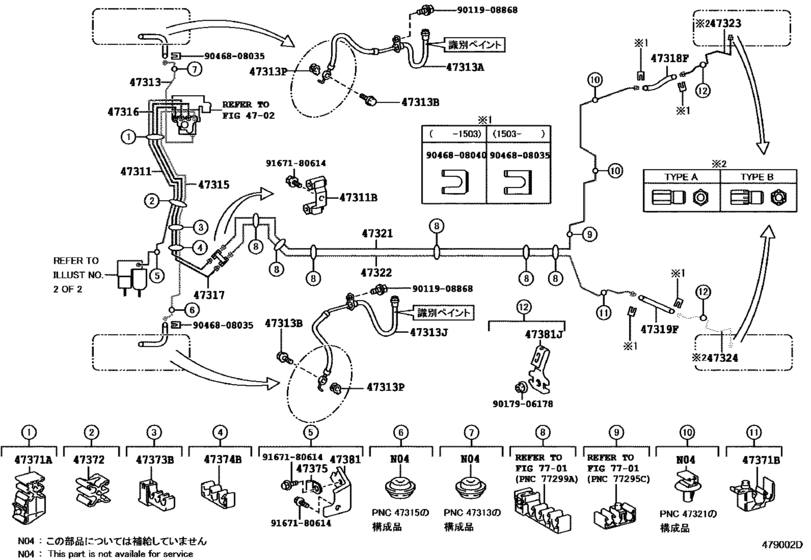

Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165) 55

#	OEM	Part name
44547	47131-47070	Cushion, Brake Actuator Bracket
44590	44590-52271	Bracket Assy, Brake Actuator
47070	47070-52020	Pump Assy, Brake Booster
47311	47311-52750	Tube, Front Brake, No.1
47311	47311-52751	Tube, Front Brake, No.1
47311	90412-10285	Way, No.1(For Front Brake Tube)
47313	47313-52300	Tube, Front Brake, No.3
47313	47313-52301	Tube, Front Brake, No.3
47313	90947-02G34	Hose, Flexible, No.1(For Front)
47313	90947-02H35	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	90947-02G35	Hose, Flexible, No.1(For Front)
47313	90947-02H36	Hose, Flexible, No.1(For Front)
47313	47389-50020	Gasket(For Front Flexible Hose)
47315	47315-52270	Tube, Front Brake, No.5
47315	47315-52271	Tube, Front Brake, No.5
47316	47316-52260	Tube, Front Brake, No.6
47316	47316-52261	Tube, Front Brake, No.6
47317	47317-52270	Tube, Front Brake, No.7
47317	47317-52271	Tube, Front Brake, No.7
47318	90947-02G36	Hose, Flexible(For Rear Rh)
47318	90947-02H31	Hose, Flexible(For Rear Rh)
47319	90947-02G38	Hose, Flexible(For Rear Lh)
47319	90947-02H32	Hose, Flexible(For Rear Lh)
47321	47321-12400	Tube, Rear Brake, No.1
47321	47321-12401	Tube, Rear Brake, No.1
47322	47322-12560	Tube, Rear Brake, No.2
47322	47322-12561	Tube, Rear Brake, No.2
47323	47323-52130	Tube, Rear Brake, No.3
47323	47323-52131	Tube, Rear Brake, No.3
47324	47324-52120	Tube, Rear Brake, No.4
47324	47324-52121	Tube, Rear Brake, No.4
47371	90949-01D64	Clamp, Brake Tube, No.1
47371	77286-52180	Clamp, Brake Tube, No.6
47372	90464-00876	Clamp, Brake Tube, No.1
47373	90949-01D08	Clamp, Brake Tube, No.1
47374	90464-00857	Clamp, Brake Tube, No.1
47375	90461-10854	Clamp, Brake Tube, No.6
47381	47381-52050	Bracket, Brake Tube Clamp No.1
47381	47381-52020	Bracket, Brake Tube Clamp No.1
47955	47955-60010	Pipe, Brake Booster Accumulator
47962	47962-60090	Collar, Brake Booster Pump
47965	47965-30010	Bush, Brake Booster Pump
47999	47965-24010	Bush, Brake Booster Pump
90015	90015-AY001	SPRING COMPRESSION
4452147010	44521-47010	Collar, Brake Actuator Case, No.1
9011908868	90119-08868	BOLT WWASHER
9017906178	90179-06178	Nut (For Rear Wiper Arm Setting)
9030113014	90301-13014	Ring, O(For Brake Booster Accumulator)
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9046808040	90468-08040	CLIP
9163160825	91631-60825	BOLT WWASHER
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
44521-47010	Collar, Brake Actuator Case, No.1	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
44590-52271	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47070-52020	Pump Assy, Brake Booster	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47131-47070	Cushion, Brake Actuator Bracket	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47311-52750	Tube, Front Brake, No.1	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47311-52751	Tube, Front Brake, No.1	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47313-52300	Tube, Front Brake, No.3	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47313-52301	Tube, Front Brake, No.3	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47315-52270	Tube, Front Brake, No.5	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47315-52271	Tube, Front Brake, No.5	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47316-52260	Tube, Front Brake, No.6	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47316-52261	Tube, Front Brake, No.6	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47317-52270	Tube, Front Brake, No.7	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47317-52271	Tube, Front Brake, No.7	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47321-12400	Tube, Rear Brake, No.1	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47321-12401	Tube, Rear Brake, No.1	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47322-12560	Tube, Rear Brake, No.2	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47322-12561	Tube, Rear Brake, No.2	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47323-52130	Tube, Rear Brake, No.3	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47323-52131	Tube, Rear Brake, No.3	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47324-52120	Tube, Rear Brake, No.4	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47324-52121	Tube, Rear Brake, No.4	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47381-52020	Bracket, Brake Tube Clamp No.1	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47381-52050	Bracket, Brake Tube Clamp No.1	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47955-60010	Pipe, Brake Booster Accumulator	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47962-60090	Collar, Brake Booster Pump	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47965-24010	Bush, Brake Booster Pump	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
47965-30010	Bush, Brake Booster Pump	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
77286-52180	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
90015-AY001	SPRING COMPRESSION	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
90119-08868	BOLT WWASHER	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
90179-06178	Nut (For Rear Wiper Arm Setting)	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
90301-13014	Ring, O(For Brake Booster Accumulator)	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
90412-10285	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
90461-10854	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
90464-00857	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
90464-00876	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
90468-08035	CLIP	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
90468-08040	CLIP	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
90947-02G34	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
90947-02G35	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
90947-02G36	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
90947-02G38	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
90947-02H31	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
90947-02H32	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
90947-02H35	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
90947-02H36	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
90949-01D08	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
90949-01D64	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
91631-60825	BOLT WWASHER	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Brake Tube & Clamp ([07.2013 - ] (1307- )NKE165)
