Search › Model › NKE165
NKE165

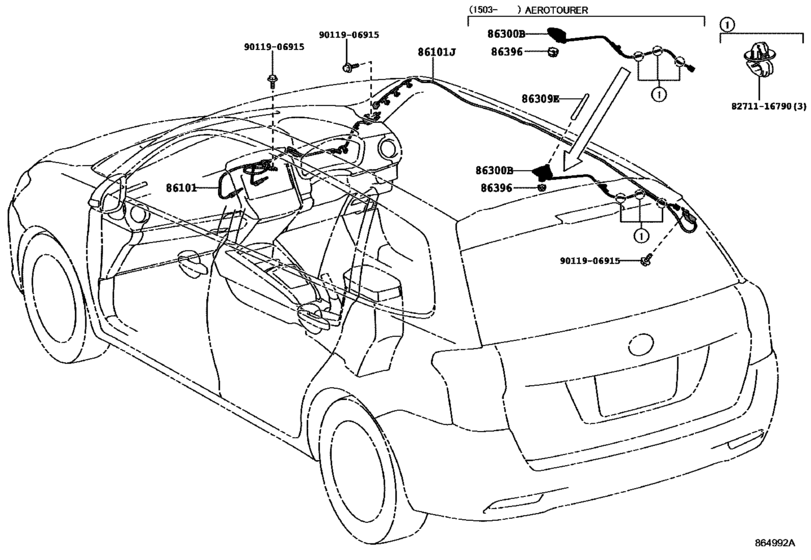

Antenna ([04.2012 - ] (1204- )5D) 16
| # | OEM | Part name |
|---|---|---|
| 86101 | 86101-12880 | Cord Sub-Assy, Antenna |
| 86101 | 86101-13160 | Cord Sub-Assy, Antenna, No.2 |
| 86300 | 86300-13060 | Antenna Assy, Amplifier, No.1 |
| 86300 | 86300-13080-A0 | Antenna Assy, Amplifier, No.1 |
| 86300 | 86300-13080-A1 | Antenna Assy, Amplifier, No.1 |
| 86300 | 86300-13080-B0 | Antenna Assy, Amplifier, No.1 |
| 86300 | 86300-13080-C0 | Antenna Assy, Amplifier, No.1 |
| 86300 | 86300-13080-D0 | Antenna Assy, Amplifier, No.1 |
| 86300 | 86300-13080-D1 | Antenna Assy, Amplifier, No.1 |
| 86300 | 86300-13080-E0 | Antenna Assy, Amplifier, No.1 |
| 86300 | 86300-13080-J0 | Antenna Assy, Amplifier, No.1 |
| 86300 | 86300-13080-J1 | Antenna Assy, Amplifier, No.1 |
| 86309 | 86309-13020 | Pole Sub-Assy, Roof Antenna |
| 86396 | 86396-47010 | Nut, Antenna |
| 8271116790 | 82711-16790 | Clamp, Wiring Harness |
| 9011906915 | 90119-06915 | BOLT W-WASHER |
| OEM | Part name | Category |
|---|---|---|
| 82711-16790 | Clamp, Wiring Harness | Antenna ([04.2012 - ] (1204- )5D) |
| 86101-12880 | Cord Sub-Assy, Antenna | Antenna ([04.2012 - ] (1204- )5D) |
| 86101-13160 | Cord Sub-Assy, Antenna, No.2 | Antenna ([04.2012 - ] (1204- )5D) |
| 86300-13060 | Antenna Assy, Amplifier, No.1 | Antenna ([04.2012 - ] (1204- )5D) |
| 86300-13080-A0 | Antenna Assy, Amplifier, No.1 | Antenna ([04.2012 - ] (1204- )5D) |
| 86300-13080-A1 | Antenna Assy, Amplifier, No.1 | Antenna ([04.2012 - ] (1204- )5D) |
| 86300-13080-B0 | Antenna Assy, Amplifier, No.1 | Antenna ([04.2012 - ] (1204- )5D) |
| 86300-13080-C0 | Antenna Assy, Amplifier, No.1 | Antenna ([04.2012 - ] (1204- )5D) |
| 86300-13080-D0 | Antenna Assy, Amplifier, No.1 | Antenna ([04.2012 - ] (1204- )5D) |
| 86300-13080-D1 | Antenna Assy, Amplifier, No.1 | Antenna ([04.2012 - ] (1204- )5D) |
| 86300-13080-E0 | Antenna Assy, Amplifier, No.1 | Antenna ([04.2012 - ] (1204- )5D) |
| 86300-13080-J0 | Antenna Assy, Amplifier, No.1 | Antenna ([04.2012 - ] (1204- )5D) |
| 86300-13080-J1 | Antenna Assy, Amplifier, No.1 | Antenna ([04.2012 - ] (1204- )5D) |
| 86309-13020 | Pole Sub-Assy, Roof Antenna | Antenna ([04.2012 - ] (1204- )5D) |
| 86396-47010 | Nut, Antenna | Antenna ([04.2012 - ] (1204- )5D) |
| 90119-06915 | BOLT W-WASHER | Antenna ([04.2012 - ] (1204- )5D) |
