Search › Model › NHW20

NHW20

Toyota PRIUS · 2003 · 4,497 parts · 307 categories

4,497 items

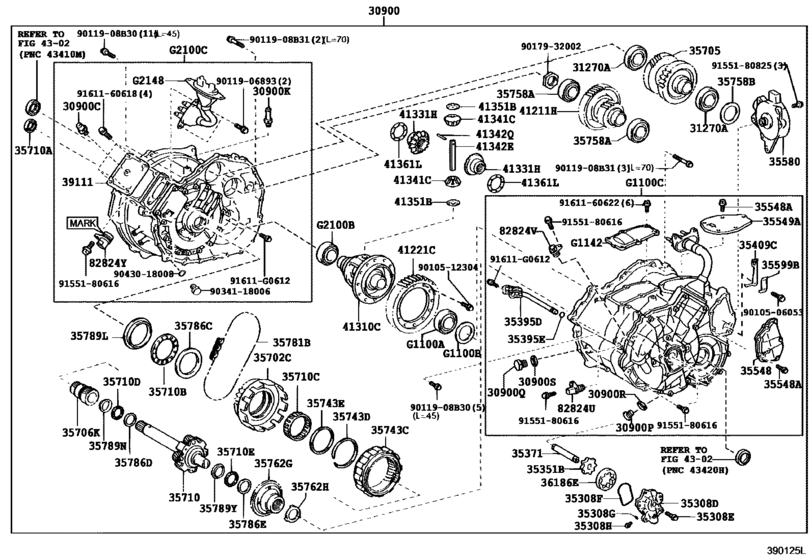

Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- )) 143

#	OEM	Part name
0	90366-40064	Bearing(For Rear Differential Case)
0	90564-45011	Shim(For Rear Differential Case)
0	90564-45040	Shim(For Differential Case Lh)
0	90564-45041	Shim(For Differential Case Lh)
0	90564-45042	Shim(For Differential Case Lh)
0	90564-45043	Shim(For Differential Case Lh)
0	90564-45060	Shim(For Differential Case Lh)
0	90564-45061	Shim(For Differential Case Lh)
0	90564-45062	Shim(For Differential Case Lh)
0	90564-45063	Shim(For Differential Case Lh)
0	90564-45071	Shim(For Differential Case Lh)
0	90564-45072	Shim(For Differential Case Lh)
0	90564-45073	Shim(For Differential Case Lh)
0	90564-45074	Shim(For Differential Case Lh)
0	90564-45075	Shim(For Differential Case Lh)
0	90564-45076	Shim(For Differential Case Lh)
0	90564-45077	Shim(For Differential Case Lh)
0	90564-45078	Shim(For Differential Case Lh)
0	90564-45079	Shim(For Differential Case Lh)
0	90564-45080	Shim(For Differential Case Lh)
0	90564-45081	Shim(For Differential Case Lh)
0	90564-45082	Shim(For Differential Case Lh)
0	90564-45083	Shim(For Differential Case Lh)
0	90564-45084	Shim(For Differential Case Lh)
0	90564-45085	Shim(For Differential Case Lh)
0	90564-45086	Shim(For Differential Case Lh)
0	90564-45087	Shim(For Differential Case Lh)
0	90564-45088	Shim(For Differential Case Lh)
0	90564-45089	Shim(For Differential Case Lh)
0	90564-45090	Shim(For Differential Case Lh)
0	90564-45091	Shim(For Differential Case Lh)
0	90366-40016	Bearing(For Rear Differential Case)
30900	30900-47040	Transaxle Assy, Hybrid Vehicle
30900	90930-03031	Plug, Breather(For Parking Cover)
30900	90930-03179	Plug, Breather(For Parking Cover)
30900	90404-51079	Connector, Tube(For Transaxle Housing)
30900	90341-18051	Plug, Drain(Hv)
30900	90341-18006	Plug (No magnet)
30900	90430-18008	Gasket
30900	90430-T0021	Gasket(For Manual Transmission Filler Plug)
30900	91612-61050	Bolt(For Transaxle & Engine Setting)
31270	90363-35055	Bearing, Radial Ball(For Crankshaft)
31270	31270-47030	Damper Assy, Transmission Input
31270	31270-47031	Damper Assy, Transmission Input
31270	31290-47012	Cover Assy, Transmission Input Damper
31270	90387-21005	Bush(For Crankshaft)
31290	31290-47011	Cover Assy, Transmission Input Damper
31290	31270-47050	Damper Assy, Transmission Input
31290	90119-08079	Bolt(For Transmission Input Damper Cover & Flywheel)
35151	35151-47010	Cover, Automatic Transmission Case
35308	35308-47030	Cover Sub-Assy, Transmission Oil Pump
35308	91611-60622	Bolt, W/washer (For Transmission Oil Pump Cover)
35308	90903-01009	Ring, O, No.1 (For Transmission Oil Pump Cover)
35308	90301-06196	O Ring, Transaxle Case, No.1
35308	90341-08001	Plug, Transaxle Case, No.1
35351	35351-47030	Rotor, Transaxle Oil Pump Drive
35371	35371-47030	Shaft, Oil Pump Drive
35395	35395-47030	Strainer, Transmission Oil
35395	90301-11019	Ring, O(For Oil Pipe No.1)
35409	35409-47030	Spring Sub-Assy, Manual Detent
35548	35548-47020	Cover, Parking
35548	91611-B0625	Bolt (For Automatic Transmission Oil Pan)
35549	35549-47030	Cover, Parking Shaft
35580	35580-47010	Actuator Assy, Shift Control
35599	35599-47030	Cover, Manual Detent Spring
35702	35702-47020	Sprocket Sub-Assy, Transmission Drive
35705	35704-47010	Gear Sub-Assy, Counter Driven
35706	35706-47030	Gear Sub-Assy, Planetary Sun
35710	35710-47030	Shaft Assy, Input
35710	90311-25025	Seal, Type T Oil(For Input Shaft)
35710	90374-76001	Bearing, Thrust Needle Roller, No.1(For Drive Sprocket)
35710	90364-73001	Bearing, Needle Roller, No.2(For Drive Sprocket)
35710	90374-27011	Bearing, Thrust Needle Roller, No.1(For Input Shaft)
35710	90374-31004	Bearing, Thrust Needle Roller, No.2(For Input Shaft)
35743	35743-47020	Gear, Planetary Ring
35743	90520-78001	Ring, Snap(For Planetary Ring Gear)
35743	90560-74001	Spacer(For Planetary Ring Gear)
35758	90363-35056	Bearing, Radial Ball(For Conter Drive Gear)
35758	90564-35132	Shim(For Counter Drive Gear)
35758	90564-35133	Shim(For Counter Drive Gear)
35758	90564-35134	Shim(For Counter Drive Gear)
35758	90564-35135	Shim(For Counter Drive Gear)
35758	90564-35136	Shim(For Counter Drive Gear)
35758	90564-35137	Shim(For Counter Drive Gear)
35758	90564-35138	Shim(For Counter Drive Gear)
35758	90564-35139	Shim(For Counter Drive Gear)
35758	90564-35140	Shim(For Counter Drive Gear)
35758	90564-35141	Shim(For Counter Drive Gear)
35758	90564-35142	Shim(For Counter Drive Gear)
35758	90564-35143	Shim(For Counter Drive Gear)
35758	90564-35144	Shim(For Counter Drive Gear)
35762	35762-47030	Flange, Planetary Ring Gear
35762	90564-36021	Shim(For Planetary Ring Gear Flange)
35762	90564-36022	Shim(For Planetary Ring Gear Flange)
35762	90564-36023	Shim(For Planetary Ring Gear Flange)
35762	90564-36024	Shim(For Planetary Ring Gear Flange)
35762	90564-36025	Shim(For Planetary Ring Gear Flange)
35762	90564-36026	Shim(For Planetary Ring Gear Flange)
35762	90564-36027	Shim(For Planetary Ring Gear Flange)
35762	90564-36028	Shim(For Planetary Ring Gear Flange)
35762	90564-36029	Shim(For Planetary Ring Gear Flange)
35762	90564-36030	Shim(For Planetary Ring Gear Flange)
35762	90564-36031	Shim(For Planetary Ring Gear Flange)
35762	90564-36032	Shim(For Planetary Ring Gear Flange)
35781	35781-47020	Chain, Transmission Drive
35786	35786-47040	Race, Thrust Bearing, No.1
35786	35786-47020	Race, Thrust Bearing, No.1(For Input Shaft)
35786	35786-47030	Race, Thrust Bearing, No.2(For Input Shaft)
35789	35789-47040	Race, Thrust Bearing, No.2
35789	35789-47020	Race, Thrust Bearing, No.2(For Input Shaft)
35789	35789-47030	Race, Thrust Bearing No.3(For Input Shaft)
36186	35352-47020	Rotor, Transmission Oil Pump Driven
39111	39111-47020	Cover, Power Cable
41211	41205-47010	Pinion, Differential Drive
41221	41221-47020	Gear, Differential Ring
41310	41311-47010	Case Assy, Differential
41331	41331-32010	Gear, Rear Differential Side
41341	41341-30011	Pinion, Rear Differential
41341	41039-28010	Gear Kit, Differential, Rear
41342	41342-32020	Shaft, Rear Differential Pinion
41342	41342-52060	Shaft, Front Differential Pinion, No.1
41342	90250-06058	Pin, Straight(For Timing Gear Case)
41351	41351-32010	Washer, Rear Differential Pinion Thrust
41361	41361-22020	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22030	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22040	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22140	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22150	Washer, Rear Differential Side Gear Thrust, No.1
41361	41361-22160	Washer, Rear Differential Side Gear Thrust, No.1
82824	82824-47230	Connector, Wiring Harness(For Motor Stator)
82824	82824-47100	Connector, Wiring Harness(For Motor Revolution Sensor)
82824	82824-47250	Connector, Wiring Harness(For Generator)
91611	91611-G0612	Bolt
9011908	90119-08B30	New Genuine Part
9011908	90119-08B31	New Genuine Part
9010506053	90105-06053	Bolt(For Sensor Rotor Adapter)
9010512304	90105-12304	New Genuine Part
9011906893	90119-06893	New Genuine Part
9017932002	90179-32002	Nut (For Underdrive Input Shaft)
9155180616	91551-80616	BOLT FLANGE
9155180825	91551-80825	Bolt(For Cylinder Head Set Sub)
9161160618	91611-60618	Bolt(For Oil Receiver Pipe)
9167180622	91671-80622	Bolt

OEM	Part name	Category
30900-47040	Transaxle Assy, Hybrid Vehicle	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
31270-47030	Damper Assy, Transmission Input	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
31270-47031	Damper Assy, Transmission Input	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
31270-47050	Damper Assy, Transmission Input	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
31290-47011	Cover Assy, Transmission Input Damper	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
31290-47012	Cover Assy, Transmission Input Damper	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35151-47010	Cover, Automatic Transmission Case	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35308-47030	Cover Sub-Assy, Transmission Oil Pump	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35351-47030	Rotor, Transaxle Oil Pump Drive	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35352-47020	Rotor, Transmission Oil Pump Driven	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35371-47030	Shaft, Oil Pump Drive	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35395-47030	Strainer, Transmission Oil	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35409-47030	Spring Sub-Assy, Manual Detent	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35548-47020	Cover, Parking	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35549-47030	Cover, Parking Shaft	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35580-47010	Actuator Assy, Shift Control	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35599-47030	Cover, Manual Detent Spring	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35702-47020	Sprocket Sub-Assy, Transmission Drive	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35704-47010	Gear Sub-Assy, Counter Driven	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35706-47030	Gear Sub-Assy, Planetary Sun	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35710-47030	Shaft Assy, Input	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35743-47020	Gear, Planetary Ring	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35762-47030	Flange, Planetary Ring Gear	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35781-47020	Chain, Transmission Drive	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35786-47020	Race, Thrust Bearing, No.1(For Input Shaft)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35786-47030	Race, Thrust Bearing, No.2(For Input Shaft)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35786-47040	Race, Thrust Bearing, No.1	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35789-47020	Race, Thrust Bearing, No.2(For Input Shaft)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35789-47030	Race, Thrust Bearing No.3(For Input Shaft)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
35789-47040	Race, Thrust Bearing, No.2	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
39111-47020	Cover, Power Cable	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
41039-28010	Gear Kit, Differential, Rear	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
41205-47010	Pinion, Differential Drive	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
41221-47020	Gear, Differential Ring	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
41311-47010	Case Assy, Differential	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
41331-32010	Gear, Rear Differential Side	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
41341-30011	Pinion, Rear Differential	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
41342-32020	Shaft, Rear Differential Pinion	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
41342-52060	Shaft, Front Differential Pinion, No.1	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
41351-32010	Washer, Rear Differential Pinion Thrust	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
41361-22020	Washer, Rear Differential Side Gear Thrust, No.1	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
41361-22030	Washer, Rear Differential Side Gear Thrust, No.1	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
41361-22040	Washer, Rear Differential Side Gear Thrust, No.1	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
41361-22140	Washer, Rear Differential Side Gear Thrust, No.1	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
41361-22150	Washer, Rear Differential Side Gear Thrust, No.1	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
41361-22160	Washer, Rear Differential Side Gear Thrust, No.1	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
82824-47100	Connector, Wiring Harness(For Motor Revolution Sensor)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
82824-47230	Connector, Wiring Harness(For Motor Stator)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
82824-47250	Connector, Wiring Harness(For Generator)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90105-06053	Bolt(For Sensor Rotor Adapter)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90105-12304	New Genuine Part	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90119-06893	New Genuine Part	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90119-08079	Bolt(For Transmission Input Damper Cover & Flywheel)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90119-08B30	New Genuine Part	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90119-08B31	New Genuine Part	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90179-32002	Nut (For Underdrive Input Shaft)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90250-06058	Pin, Straight(For Timing Gear Case)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90301-06196	O Ring, Transaxle Case, No.1	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90301-11019	Ring, O(For Oil Pipe No.1)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90311-25025	Seal, Type T Oil(For Input Shaft)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90341-08001	Plug, Transaxle Case, No.1	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90341-18006	Plug (No magnet)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90341-18051	Plug, Drain(Hv)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90363-35055	Bearing, Radial Ball(For Crankshaft)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90363-35056	Bearing, Radial Ball(For Conter Drive Gear)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90364-73001	Bearing, Needle Roller, No.2(For Drive Sprocket)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90366-40016	Bearing(For Rear Differential Case)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90366-40064	Bearing(For Rear Differential Case)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90374-27011	Bearing, Thrust Needle Roller, No.1(For Input Shaft)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90374-31004	Bearing, Thrust Needle Roller, No.2(For Input Shaft)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90374-76001	Bearing, Thrust Needle Roller, No.1(For Drive Sprocket)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90387-21005	Bush(For Crankshaft)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90404-51079	Connector, Tube(For Transaxle Housing)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90430-18008	Gasket	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90520-78001	Ring, Snap(For Planetary Ring Gear)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90560-74001	Spacer(For Planetary Ring Gear)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-35132	Shim(For Counter Drive Gear)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-35133	Shim(For Counter Drive Gear)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-35134	Shim(For Counter Drive Gear)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-35135	Shim(For Counter Drive Gear)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-35136	Shim(For Counter Drive Gear)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-35137	Shim(For Counter Drive Gear)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-35138	Shim(For Counter Drive Gear)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-35139	Shim(For Counter Drive Gear)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-35140	Shim(For Counter Drive Gear)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-35141	Shim(For Counter Drive Gear)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-35142	Shim(For Counter Drive Gear)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-35143	Shim(For Counter Drive Gear)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-35144	Shim(For Counter Drive Gear)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-36021	Shim(For Planetary Ring Gear Flange)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-36022	Shim(For Planetary Ring Gear Flange)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-36023	Shim(For Planetary Ring Gear Flange)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-36024	Shim(For Planetary Ring Gear Flange)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-36025	Shim(For Planetary Ring Gear Flange)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-36026	Shim(For Planetary Ring Gear Flange)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-36027	Shim(For Planetary Ring Gear Flange)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-36028	Shim(For Planetary Ring Gear Flange)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-36029	Shim(For Planetary Ring Gear Flange)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-36030	Shim(For Planetary Ring Gear Flange)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-36031	Shim(For Planetary Ring Gear Flange)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-36032	Shim(For Planetary Ring Gear Flange)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45011	Shim(For Rear Differential Case)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45040	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45041	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45042	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45043	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45060	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45061	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45062	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45063	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45071	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45072	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45073	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45074	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45075	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45076	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45077	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45078	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45079	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45080	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45081	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45082	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45083	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45084	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45085	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45086	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45087	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45088	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45089	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45090	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90564-45091	Shim(For Differential Case Lh)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90903-01009	Ring, O, No.1 (For Transmission Oil Pump Cover)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90930-03031	Plug, Breather(For Parking Cover)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
90930-03179	Plug, Breather(For Parking Cover)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
91551-80616	BOLT FLANGE	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
91551-80825	Bolt(For Cylinder Head Set Sub)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
91611-60618	Bolt(For Oil Receiver Pipe)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
91611-60622	Bolt, W/washer (For Transmission Oil Pump Cover)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
91611-B0625	Bolt (For Automatic Transmission Oil Pan)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
91611-G0612	Bolt	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
91612-61050	Bolt(For Transaxle & Engine Setting)	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))
91671-80622	Bolt	Transaxle Assy, Hv Or Fcv ([08.2003 - ] (0308- ))

Source: Public OEM parts-catalog data
Variants: 2 / 11
Category: 307
Collected: 2026-08-02
