Search › Model › NHW20

NHW20

Toyota PRIUS · 2003 · 4,497 parts · 307 categories

4,497 items

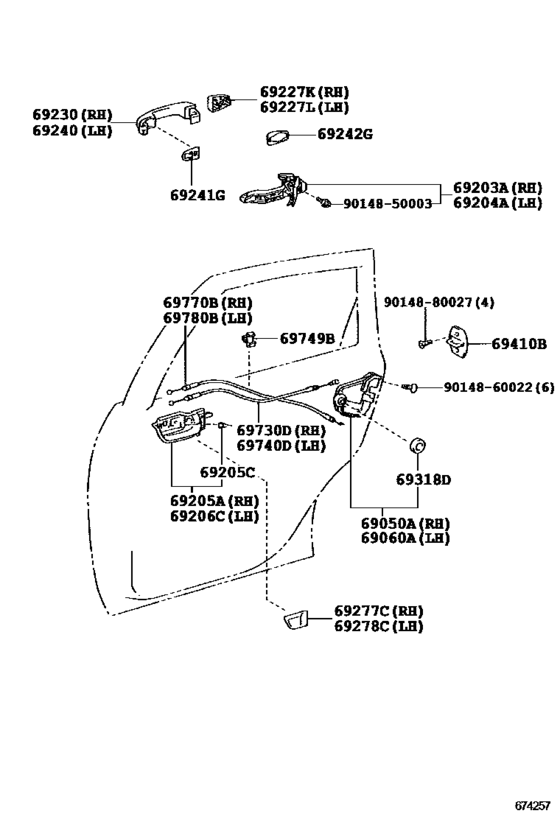

Rear Door Lock & Handle ([11.2005 - ] (0511- )) 28

#	OEM	Part name
69050	69050-47040	Lock Assy, Rear Door, Rh
69050	69050-47041	Lock Assy, Rear Door, Rh
69060	69060-47040	Lock Assy, Rear Door, Lh
69060	69060-47041	Lock Assy, Rear Door, Lh
69203	69203-47010	Frame Sub-Assy, Rear Door Outside Handle, Rh
69204	69204-47010	Frame Sub-Assy, Rear Door Outside Handle, Lh
69205	69205-47020-C0	Handle Sub-Assy, Front Door Inside, Rh
69205	90541-04014	Cushion, Console Box
69206	69206-47020-C0	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-47020-B2	Handle Sub-Assy, Front Door Inside, Lh (DK.GRAY)
69227	69227-33040-B2	Cover, Rear Door Outside Handle, Rh
69227	69227-33040-C0	Cover, Rear Door Outside Handle, Rh
69230	69210-33080-B0	Handle Assy, Front Door, Outside Rh
69230	69210-33080-C0	Handle Assy, Front Door, Outside Rh
69241	69241-48020	Pad, Rear Door Outside Handle, Front
69242	69242-42010	Pad, Front Door Outside Handle, Lh
69242	69242-52020	Pad, Front Door Outside Handle, Rear
69277	69277-47020-C0	Bezel, Front Door Inside Handle, Rh
69278	69278-47020-C0	Bezel, Front Door Inside Handle, Lh
69318	69318-47010	Seal, Front Door Lock Hole, Rh
69410	69410-33010	Plate Assy, Front Door Lock Striker
69730	69730-47020	Cable Assy, Rear Door Lock Remote Control, Rh
69749	69749-32040	Clamp, Front Door Lock Link
69770	69770-47030	Cable Assy, Rear Door Inside Locking, Rh
9014850003	90148-50003	Screw Hex Lobular
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9014880027	90148-80027	Screw Hex Lobular

OEM	Part name	Category
69050-47040	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
69050-47041	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
69060-47040	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
69060-47041	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
69203-47010	Frame Sub-Assy, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
69204-47010	Frame Sub-Assy, Rear Door Outside Handle, Lh	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
69205-47020-C0	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
69206-47020-B2	Handle Sub-Assy, Front Door Inside, Lh (DK.GRAY)	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
69206-47020-C0	Handle Sub-Assy, Front Door Inside, Lh	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
69210-33080-B0	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
69210-33080-C0	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
69227-33040-B2	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
69227-33040-C0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
69241-48020	Pad, Rear Door Outside Handle, Front	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
69242-42010	Pad, Front Door Outside Handle, Lh	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
69242-52020	Pad, Front Door Outside Handle, Rear	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
69277-47020-C0	Bezel, Front Door Inside Handle, Rh	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
69278-47020-C0	Bezel, Front Door Inside Handle, Lh	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
69318-47010	Seal, Front Door Lock Hole, Rh	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
69410-33010	Plate Assy, Front Door Lock Striker	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
69730-47020	Cable Assy, Rear Door Lock Remote Control, Rh	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
69749-32040	Clamp, Front Door Lock Link	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
69770-47030	Cable Assy, Rear Door Inside Locking, Rh	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
90148-50003	Screw Hex Lobular	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
90148-60022	BOLT	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
90148-80027	Screw Hex Lobular	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
90148-A0005	Hexalobular Screw	Rear Door Lock & Handle ([11.2005 - ] (0511- ))
90541-04014	Cushion, Console Box	Rear Door Lock & Handle ([11.2005 - ] (0511- ))

Source: Public OEM parts-catalog data
Variants: 2 / 11
Category: 307
Collected: 2026-08-02
