Search › Model › NHW20

NHW20

Toyota PRIUS · 2003 · 4,497 parts · 307 categories

4,497 items

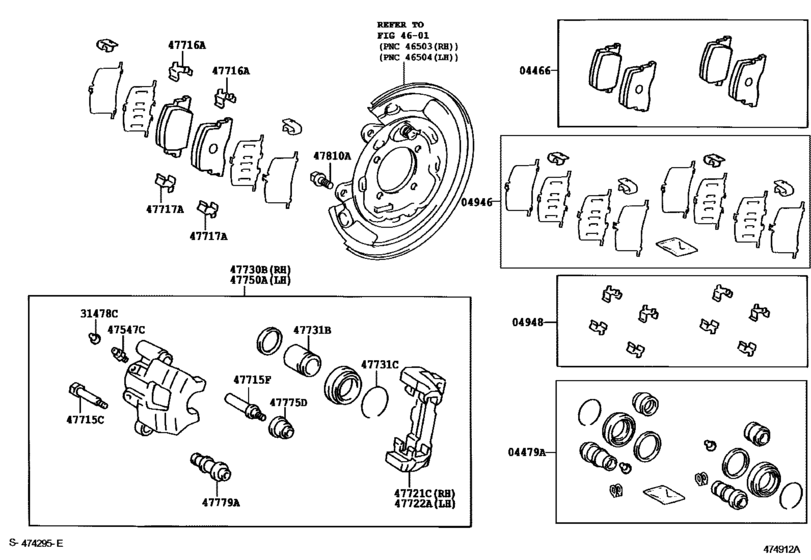

Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- )) 24

#	OEM	Part name
4466	04466-47010	Pad Kit, Disc Brake, Rear
4479	04479-33110	Cylinder Kit, Disc Brake, Rear
4946	04946-47010	Shim Kit, Anti Squeal(For Rear Disc Brake)
4948	04948-32040	Fitting Kit, Disc Brake, Rear
31478	31478-30010	Bleeder Plug Cap
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47715	47715-32020	Pin, Cylinder Slide(For Rear Disc Brake)
47715	47715-32030	Pin, Cylinder Slide(For Rear Disc Brake)
47716	47716-32060	Plate, Pad Support, No.1(For Rear Disc Brake)
47717	47717-32060	Plate, Pad Support, No.2(For Rear Disc Brake)
47721	47721-32150	Mounting, Rear Disc Brake Cylinder, Rh
47721	47875-30341	Boot, Bush Dust(For Rear Disc Brake)
47721	47715-32040	Pin, Cylinder Slide(For Rear Disc Brake)
47721	47721-32151	Mounting, Rear Disc Brake Cylinder, Rh
47721	47722-32151	Mounting, Rear Disc Brake Cylinder, Lh
47721	47771-32050	Plate, Pad Wear Indicator(For Rear Disc Brake)
47722	47722-32150	Mounting, Rear Disc Brake Cylinder, Lh
47730	47730-21030	Cylinder Assy, Rear Disc Brake, Rh
47731	47731-33040	Piston, Rear Disc Brake
47731	90522-43003	Ring, Set(For Front Disc Brake Piston)
47750	47750-21030	Cylinder Assy, Disc Brake, Rear Lh
47775	47775-32050	Boot, Bush Dust(For Rear Disc Brake)
47779	47779-32030	Bush, Cylinder Slide, No.2(For Rear Disc Brake)
47810	90119-10379	Bolt, Hexagon(For Rear Caliper)

OEM	Part name	Category
04466-47010	Pad Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
04479-33110	Cylinder Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
04946-47010	Shim Kit, Anti Squeal(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
04948-32040	Fitting Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
31478-30010	Bleeder Plug Cap	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
47547-20010	Plug, Bleeder(For Release Cylinder)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
47715-32020	Pin, Cylinder Slide(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
47715-32030	Pin, Cylinder Slide(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
47715-32040	Pin, Cylinder Slide(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
47716-32060	Plate, Pad Support, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
47717-32060	Plate, Pad Support, No.2(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
47721-32150	Mounting, Rear Disc Brake Cylinder, Rh	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
47721-32151	Mounting, Rear Disc Brake Cylinder, Rh	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
47722-32150	Mounting, Rear Disc Brake Cylinder, Lh	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
47722-32151	Mounting, Rear Disc Brake Cylinder, Lh	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
47730-21030	Cylinder Assy, Rear Disc Brake, Rh	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
47731-33040	Piston, Rear Disc Brake	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
47750-21030	Cylinder Assy, Disc Brake, Rear Lh	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
47771-32050	Plate, Pad Wear Indicator(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
47775-32050	Boot, Bush Dust(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
47779-32030	Bush, Cylinder Slide, No.2(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
47875-30341	Boot, Bush Dust(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
90119-10379	Bolt, Hexagon(For Rear Caliper)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))
90522-43003	Ring, Set(For Front Disc Brake Piston)	Rear Disc Brake Caliper & Dust Cover ([11.2005 - ] (0511- ))

Source: Public OEM parts-catalog data
Variants: 2 / 11
Category: 307
Collected: 2026-08-02
