Search › Model › NHW20

NHW20

Toyota PRIUS · 2003 · 4,497 parts · 307 categories

4,497 items

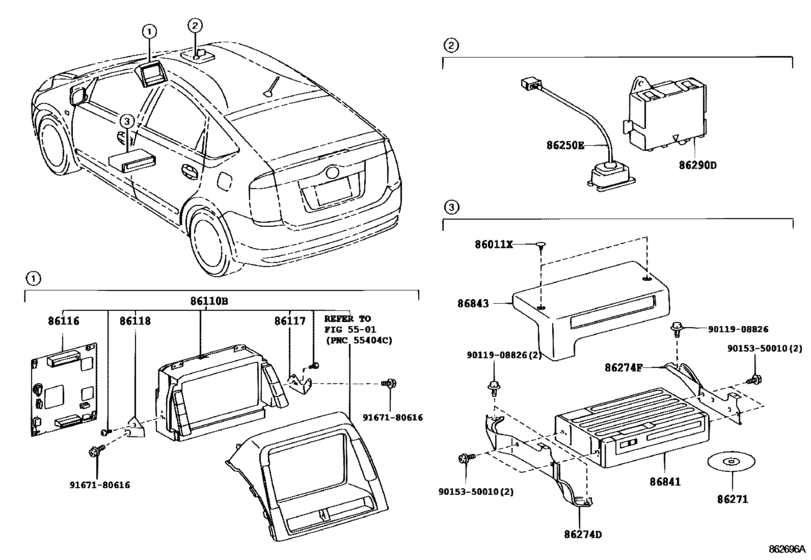

Navigation & Front Monitor Display ([11.2005 - ] (0511- )) 65

#	OEM	Part name
86011	90467-05045-22	Clip(For Front Fender Seal)
86011	90467-05112-C0	Clip(For Luggage Compartment Trim Rear Cover)
86110	86110-47180-C0	Multi-Display Assy
86110	86110-47190-C0	Multi-Display Assy
86110	86110-47192-C0	Multi-Display Assy
86110	86110-47191-C0	Multi-Display Assy
86110	86110-47050	Multi-Display Assy
86110	86110-47052	Multi-Display Assy
86110	86110-47051	Multi-Display Assy
86110	86110-47060	Multi-Display Assy
86110	86110-47062-C0	Multi-Display Assy
86110	86110-47061	Multi-Display Assy
86110	86110-47200-C0	Multi-Display Assy
86110	86110-47270-C0	Multi-Display Assy
86110	86110-47201-C0	Multi-Display Assy
86116	86116-47070	Controller, Video
86116	86116-47071	Controller, Video
86116	86116-47030	Controller, Video
86116	86116-47032	Controller, Video
86116	86116-47031	Controller, Video
86116	86116-47040	Controller, Video
86116	86116-47042	Controller, Video
86116	86116-47041	Controller, Video
86116	86116-48150	Controller, Video
86116	86116-48151	Controller, Video
86117	86117-47010	Bracket, Multi-Display Controller, A
86118	86118-47010	Bracket, Multi-Display Controler, B
86250	86250-47020	Microphone Assy, Amplifier
86250	86250-47010	Microphone Assy, Amplifier
86250	86250-47030	Microphone Assy, Amplifier
86271	86807-0N013	Disc, Disc Player
86271	86807-0W028	Disc, Disc Player
86271	86807-0W021	Disc, Disc Player
86271	86807-0W022	Disc, Disc Player
86271	86807-0W023	Disc, Disc Player
86271	86807-0W024	Disc, Disc Player
86274	86274-47050	Bracket, Disc Player
86274	86274-47060	Bracket, Disc Player, No.2
86274	86274-47070	Bracket, Disc Player
86274	86274-47080	Bracket, Disc Player, No.2
86290	86290-47010	Amplifier Assy, Microphone
86290	86290-47020	Amplifier Assy, Microphone
86841	86841-33090	Computer, Navigation
86841	86840-47070	Computer, Navigation
86841	86840-47083	Computer, Navigation
86841	86840-47071	Computer, Navigation
86841	86840-47072	Computer, Navigation
86841	86840-47073	Computer, Navigation
86841	86840-47074	Computer, Navigation
86841	86840-47075	Computer, Navigation
86841	86840-47076	Computer, Navigation
86841	86840-47077	Computer, Navigation
86841	86840-47078	Computer, Navigation
86841	86840-47079	Computer, Navigation
86841	86840-47080	Computer, Navigation
86841	86840-47081	Computer, Navigation
86841	86840-47082	Computer, Navigation
86841	86841-52020	Cable, Bond (For Navigation Computer)
86842	86842-47010	Wire, Navigation, No.1
86842	86842-47030	Wire, Navigation, No.1
86843	86804-47010	Cover, Navigation Computer
86843	86804-47020	Cover, Navigation Computer
9011908826	90119-08826	BOLT
9015350010	90153-50010	BOLT
9167180616	91671-80616	BOLT FLANGE

OEM	Part name	Category
86110-47050	Multi-Display Assy	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86110-47051	Multi-Display Assy	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86110-47052	Multi-Display Assy	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86110-47060	Multi-Display Assy	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86110-47061	Multi-Display Assy	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86110-47062-C0	Multi-Display Assy	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86110-47180-C0	Multi-Display Assy	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86110-47190-C0	Multi-Display Assy	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86110-47191-C0	Multi-Display Assy	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86110-47192-C0	Multi-Display Assy	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86110-47200-C0	Multi-Display Assy	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86110-47201-C0	Multi-Display Assy	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86110-47270-C0	Multi-Display Assy	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86116-47030	Controller, Video	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86116-47031	Controller, Video	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86116-47032	Controller, Video	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86116-47040	Controller, Video	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86116-47041	Controller, Video	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86116-47042	Controller, Video	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86116-47070	Controller, Video	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86116-47071	Controller, Video	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86116-48150	Controller, Video	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86116-48151	Controller, Video	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86117-47010	Bracket, Multi-Display Controller, A	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86118-47010	Bracket, Multi-Display Controler, B	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86250-47010	Microphone Assy, Amplifier	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86250-47020	Microphone Assy, Amplifier	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86250-47030	Microphone Assy, Amplifier	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86274-47050	Bracket, Disc Player	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86274-47060	Bracket, Disc Player, No.2	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86274-47070	Bracket, Disc Player	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86274-47080	Bracket, Disc Player, No.2	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86290-47010	Amplifier Assy, Microphone	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86290-47020	Amplifier Assy, Microphone	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86804-47010	Cover, Navigation Computer	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86804-47020	Cover, Navigation Computer	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86807-0N013	Disc, Disc Player	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86807-0W021	Disc, Disc Player	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86807-0W022	Disc, Disc Player	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86807-0W023	Disc, Disc Player	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86807-0W024	Disc, Disc Player	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86807-0W028	Disc, Disc Player	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86840-47070	Computer, Navigation	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86840-47071	Computer, Navigation	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86840-47072	Computer, Navigation	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86840-47073	Computer, Navigation	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86840-47074	Computer, Navigation	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86840-47075	Computer, Navigation	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86840-47076	Computer, Navigation	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86840-47077	Computer, Navigation	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86840-47078	Computer, Navigation	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86840-47079	Computer, Navigation	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86840-47080	Computer, Navigation	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86840-47081	Computer, Navigation	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86840-47082	Computer, Navigation	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86840-47083	Computer, Navigation	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86841-33090	Computer, Navigation	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86841-52020	Cable, Bond (For Navigation Computer)	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86842-47010	Wire, Navigation, No.1	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
86842-47030	Wire, Navigation, No.1	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
90119-08826	BOLT	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
90153-50010	BOLT	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
90467-05045-22	Clip(For Front Fender Seal)	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
90467-05112-C0	Clip(For Luggage Compartment Trim Rear Cover)	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
91671-80616	BOLT FLANGE	Navigation & Front Monitor Display ([11.2005 - ] (0511- ))
