Search › Model › NHW20
NHW20

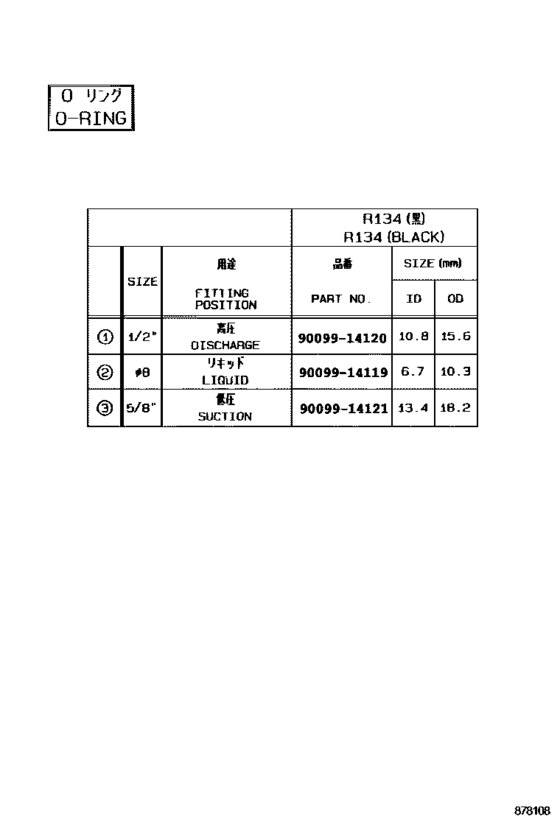

Heating & Air Conditioning - Cooler Piping ([11.2005 - ] O-RING (0511- )) 4
| # | OEM | Part name |
|---|---|---|
| 9009914119 | 90099-14119 | Ring, O(For Cooler Refrigerant Liquid Pipe) |
| 9009914119 | 90099-14119-TH | O RING |
| 9009914120 | 90099-14120 | O-Ring, Cooler Evaporator No.1(Discharge) |
| 9009914121 | 90099-14121 | O-Ring, Cooler Evaporator No.1(Suction) |
| OEM | Part name | Category |
|---|---|---|
| 90099-14119 | Ring, O(For Cooler Refrigerant Liquid Pipe) | Heating & Air Conditioning - Cooler Piping ([11.2005 - ] O-RING (0511- )) |
| 90099-14119-TH | O RING | Heating & Air Conditioning - Cooler Piping ([11.2005 - ] O-RING (0511- )) |
| 90099-14120 | O-Ring, Cooler Evaporator No.1(Discharge) | Heating & Air Conditioning - Cooler Piping ([11.2005 - ] O-RING (0511- )) |
| 90099-14121 | O-Ring, Cooler Evaporator No.1(Suction) | Heating & Air Conditioning - Cooler Piping ([11.2005 - ] O-RING (0511- )) |
