Search › Model › NHW20
NHW20

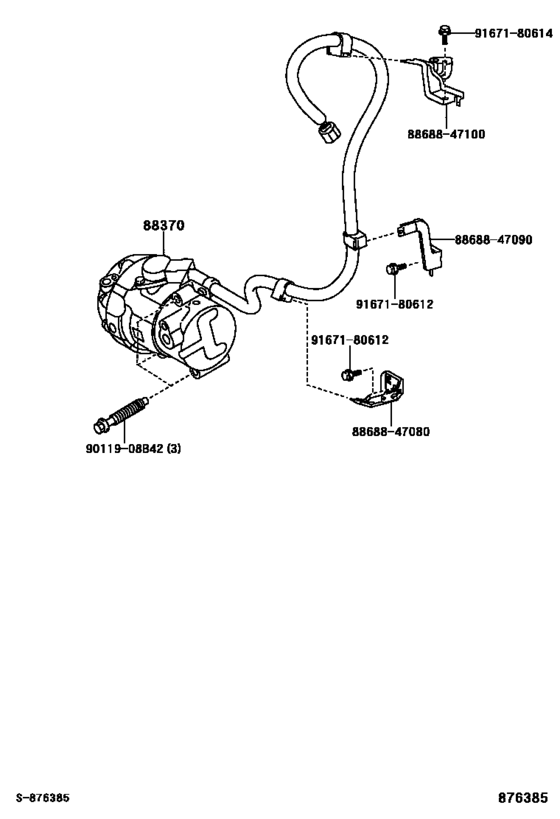

Heating & Air Conditioning - Compressor ([08.2003 - ] (0308- )) 7
| # | OEM | Part name |
|---|---|---|
| 88370 | 88370-47010 | Compressor Assy, W/motor |
| 9011908 | 90119-08B42 | BOLT WWASHER |
| 8868847080 | 88688-47080 | Bracket, Cooler Diaphragm |
| 8868847090 | 88688-47090 | Bracket, Cooler Diaphragm |
| 8868847100 | 88688-47100 | Bracket, Cooler Diaphragm |
| 9167180612 | 91671-80612 | Bolt |
| 9167180614 | 91671-80614 | Bolt (For Transmission Control Cable Bracket) |
| OEM | Part name | Category |
|---|---|---|
| 88370-47010 | Compressor Assy, W/motor | Heating & Air Conditioning - Compressor ([08.2003 - ] (0308- )) |
| 88688-47080 | Bracket, Cooler Diaphragm | Heating & Air Conditioning - Compressor ([08.2003 - ] (0308- )) |
| 88688-47090 | Bracket, Cooler Diaphragm | Heating & Air Conditioning - Compressor ([08.2003 - ] (0308- )) |
| 88688-47100 | Bracket, Cooler Diaphragm | Heating & Air Conditioning - Compressor ([08.2003 - ] (0308- )) |
| 90119-08B42 | BOLT WWASHER | Heating & Air Conditioning - Compressor ([08.2003 - ] (0308- )) |
| 91671-80612 | Bolt | Heating & Air Conditioning - Compressor ([08.2003 - ] (0308- )) |
| 91671-80614 | Bolt (For Transmission Control Cable Bracket) | Heating & Air Conditioning - Compressor ([08.2003 - ] (0308- )) |
