NHW20

Toyota PRIUS · 2003 · 4,497 parts · 307 categories
NHW20 ×

← Back to categories

4,497 items

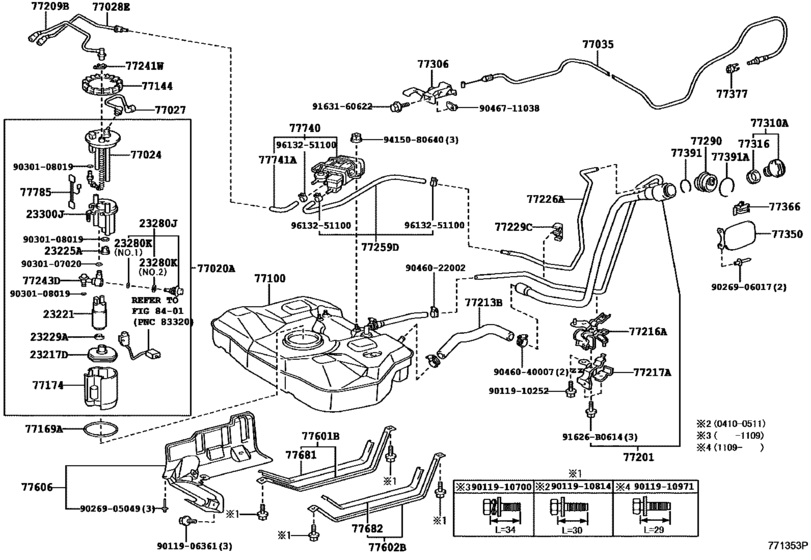

Fuel Tank & Tube ([08.2003 - ] ﾌﾕ-ｴﾙ ﾀﾝｸ (0308- )) 73
#OEMPart name
23217 23217-50100 Filter, Fuel Pump
23221 23221-21090 Pump, Fuel
23221 23221-21170 Pump, Fuel
23225 23225-50010 Spacer, Fuel Pump
23229 23229-16010 Clip(For Fuel Pump Filter)
23229 23219-03010 Clip(For Fuel Pump Filter)
23280 23280-20040 Regulator Assy, Fuel Pressure
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
23300 23300-20130 Filter Assy, Fuel
77020 77020-47040 Tube Assy, Fuel Suction W/pump & Gage
77020 77020-47041 Tube Assy, Fuel Suction W/pump & Gage
77024 77024-47020 Tube Sub-Assy, Fuel Main & Return, Front
77027 77027-47020 Tube Sub-Assy, Fuel Evaporation, No.2
77028 77028-47010 Tube Sub-Assy, Fuel Tank To Canister, Rear
77035 77035-47030 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-47050 Tank Assy, Fuel
77100 77001-47051 Tank Assy, Fuel
77144 77144-47020 Retainer, Fuel Pump Gauge
77169 77169-47030 Gasket, Fuel Suction Tube Set
77174 77174-47010 Support, Fuel Suction, No.1
77174 77174-47012 Support, Fuel Suction, No.1
77174 77174-47011 Support, Fuel Suction, No.1
77201 77201-47070 Pipe Sub-Assy, Fuel Tank Inlet
77209 77209-47030 Tube Sub-Assy, Fuel Pump
77213 77213-47040 Hose, Fuel Tank To Filler Pipe
77216 77216-47040 Support, Fuel Tank Filler Pipe, No.1
77217 77217-47040 Support, Fuel Tank Filler Pipe, No.2
77226 77226-47020 Tube, Fuel Tank Breather, No.6
77229 77229-47060 Clamp, Breather Tube
77241 77241-33011 Clip, Tube Joint
77241 77241-60320 Clip, Tube Joint
77243 77243-48020 Joint, Fuel Tube, No.1
77259 77259-47020 Hose, Fuel, No.1
77290 77291-47020 Shield Assy, Fuel Tank Filler Pipe
77290 77291-47021 Shield Assy, Fuel Tank Filler Pipe
77306 77306-21010 Lever Sub-Assy, Fuel Lid Lock Open
77310 77300-52030 Cap Assy, Fuel Tank
77310 77310-48010 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77316 77316-52020 Gasket, Fuel Tank Cap
77316 77316-52040 Gasket, Fuel Tank Cap
77350 77350-47020 Lid Assy, Fuel Filler Opening
77366 77360-30080 Spring Assy, Fuel Filler Opening Lid
77377 77377-12050 Bracket, Fuel Lid Lock Control
77391 77391-12020 Ring, Fuel Inlet Box
77391 77391-12010 Ring, Fuel Inlet Box
77391 77391-28010 Ring, Fuel Inlet Box
77601 77601-47020 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-47020 Band Sub-Assy, Fuel Tank, No.1 Lh
77606 77606-47010 Protector Sub-Assy, Fuel Tank, No.1
77681 77681-47010 Seat, Fuel Tank Band, Rh
77740 77740-47040 Canister Assy, Charcoal
77741 95326-07019 Hose, Fuel, (For Vapor Feed)
77785 77785-48010 Harness, Fuel Pump
77785 77785-48011 Harness, Fuel Pump
91626 91626-B0614 BOLT, W/WASHER
9011906361 90119-06361 BOLT WWASHER
9011910252 90119-10252 BOLT
9011910700 90119-10700 New Genuine Part
9011910814 90119-10814 Bolt, Fuel Tank Band Set
9011910971 90119-10971 Bolt, Fuel Tank Band Set
9026905049 90269-05049 RIVET
9026906017 90269-06017 RIVET
9030107020 90301-07020 Ring, O(For Fuel Pressure Regulator)
9030108019 90301-08019 Ring, O(For Fuel Pressure Regulator)
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046040007 90460-40007 Clamp (For Fuel Filler Pipe)
9046711038 90467-11038 CLAMP
9163160622 91631-60622 Screw
9415080640 94150-80640 NUT FLANGE
9613251100 96132-51100 Clip (For Hose)
