Search › Model › NHW20

NHW20

Toyota PRIUS · 2003 · 4,497 parts · 307 categories

4,497 items

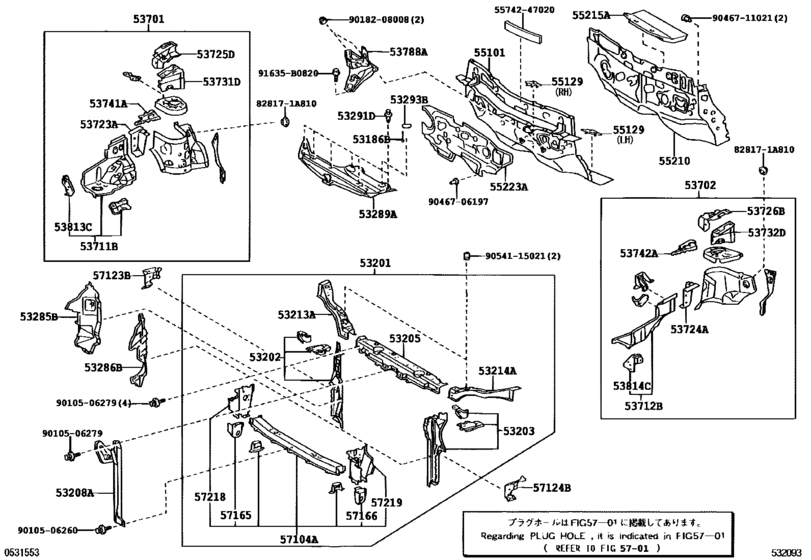

Front Fender Apron & Dash Panel ([11.2005 - ] (0511- )) 50

#	OEM	Part name
53186	53186-47010	Link, Radiator Grille, No.1
53201	53201-47020	Support Sub-Assy, Radiator
53202	53202-47900	Support Sub-Assy, Radiator, Rh
53203	53203-47900	Support Sub-Assy, Radiator, Lh
53205	53205-47020	Support Sub-Assy, Radiator, Upper
53208	53208-47010	Support Sub-Assy, Hood Lock
53213	53213-47020	Support, Radiator, Upper Rh
53214	53214-47900	Support, Radiator, Upper Lh
53285	53285-47010	Seal, Radiator Side Air, No.1
53286	53286-47010	Seal, Radiator Side Air, No.2
53289	53289-47010	Cover, Radiator Support Opening
53291	55346-47010	Clip, Radiator Support To Frame
53293	53293-47010	Seal, Radiator Support Service Hole
53701	53701-47030	Apron Sub-Assy, Front Fender, Rh
53702	53702-47030	Apron Sub-Assy, Front Fender, Lh
53711	53711-47900	Apron, Front Fender, W/support, Front Rh
53712	53712-47900	Apron, Front Fender, W/support, Front Lh
53723	53723-12080	Reinforcement, Front Spring Support, Rh
53724	53724-12070	Reinforcement, Front Spring Support, Lh
53725	53725-47010	Reinforcement, Front Spring Support, No.2 Rh
53726	53726-13010	Reinforcement, Front Spring Support, No.2 Lh
53731	53731-12160	Member, Front Apron To Cowl Side, Upper Rh
53732	53732-12140	Member, Front Apron To Cowl Side, Upper Lh
53741	53741-13010	Plate, Fender Apron Reinforce, Rh
53742	53742-13010	Plate, Front Fender Apron Reinforcement
53788	53708-47042	Gusset, Front Fender Apron, Lower Lh
53813	53813-47010	Extension, Front Fender, Rh
53814	53814-47010	Extension, Front Fender, Lh
55101	55101-47052	Panel Sub-Assy, Dash
55129	55129-32030	Cover, Dash Panel Hole
55129	55139-32010	Cover, Dash Panel Hole
55210	55210-47070	Insulator Assy, Dash Panel
55215	55215-47020	Pad, Dash Panel Insulator, No.3
55223	55223-47041	Insulator, Dash Panel, Outer
57104	57104-47010	Member Sub-Assy, Front Cross
57123	57123-47010	Support, Front Side Member, Rh
57124	57124-47010	Support, Front Side Member, Lh
57165	57165-47020	Reinforcement, Front Crossmember, Lower Rh
57166	57166-47020	Reinforcement, Front Crossmember, Lower Lh
57218	57218-47020	Gusset, Front Side Member, No.1
57219	57219-47020	Gusset, Front Side Member, No.2
91635	91635-B0820	BOLT WWASHER
828171	82817-1A810	Grommet(For Front Fender Apron)
5574247020	55742-47020	Deflector, Front Side Splash, Lh
9010506260	90105-06260	BOLT, WASHER BASED
9010506279	90105-06279	BOLT WASHER BASED
9018208008	90182-08008	New Genuine Part
9046706197	90467-06197	Clip
9046711021	90467-11021	Clip(For Rear Seat)
9054115021	90541-15021	Cushion, Hood Bumper

OEM	Part name	Category
53186-47010	Link, Radiator Grille, No.1	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53201-47020	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53202-47900	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53203-47900	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53205-47020	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53208-47010	Support Sub-Assy, Hood Lock	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53213-47020	Support, Radiator, Upper Rh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53214-47900	Support, Radiator, Upper Lh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53285-47010	Seal, Radiator Side Air, No.1	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53286-47010	Seal, Radiator Side Air, No.2	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53289-47010	Cover, Radiator Support Opening	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53293-47010	Seal, Radiator Support Service Hole	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53701-47030	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53702-47030	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53708-47042	Gusset, Front Fender Apron, Lower Lh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53711-47900	Apron, Front Fender, W/support, Front Rh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53712-47900	Apron, Front Fender, W/support, Front Lh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53723-12080	Reinforcement, Front Spring Support, Rh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53724-12070	Reinforcement, Front Spring Support, Lh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53725-47010	Reinforcement, Front Spring Support, No.2 Rh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53726-13010	Reinforcement, Front Spring Support, No.2 Lh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53731-12160	Member, Front Apron To Cowl Side, Upper Rh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53732-12140	Member, Front Apron To Cowl Side, Upper Lh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53741-13010	Plate, Fender Apron Reinforce, Rh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53742-13010	Plate, Front Fender Apron Reinforcement	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53813-47010	Extension, Front Fender, Rh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
53814-47010	Extension, Front Fender, Lh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
55101-47052	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
55129-32030	Cover, Dash Panel Hole	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
55139-32010	Cover, Dash Panel Hole	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
55210-47070	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
55215-47020	Pad, Dash Panel Insulator, No.3	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
55223-47041	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
55346-47010	Clip, Radiator Support To Frame	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
55742-47020	Deflector, Front Side Splash, Lh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
57104-47010	Member Sub-Assy, Front Cross	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
57123-47010	Support, Front Side Member, Rh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
57124-47010	Support, Front Side Member, Lh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
57165-47020	Reinforcement, Front Crossmember, Lower Rh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
57166-47020	Reinforcement, Front Crossmember, Lower Lh	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
57218-47020	Gusset, Front Side Member, No.1	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
57219-47020	Gusset, Front Side Member, No.2	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
82817-1A810	Grommet(For Front Fender Apron)	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
90105-06260	BOLT, WASHER BASED	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
90105-06279	BOLT WASHER BASED	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
90182-08008	New Genuine Part	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
90467-06197	Clip	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
90467-11021	Clip(For Rear Seat)	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
90541-15021	Cushion, Hood Bumper	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
91635-B0820	BOLT WWASHER	Front Fender Apron & Dash Panel ([11.2005 - ] (0511- ))
