NHW20

Toyota PRIUS · 2003 · 4,497 parts · 307 categories

← Back to categories

4,497 items

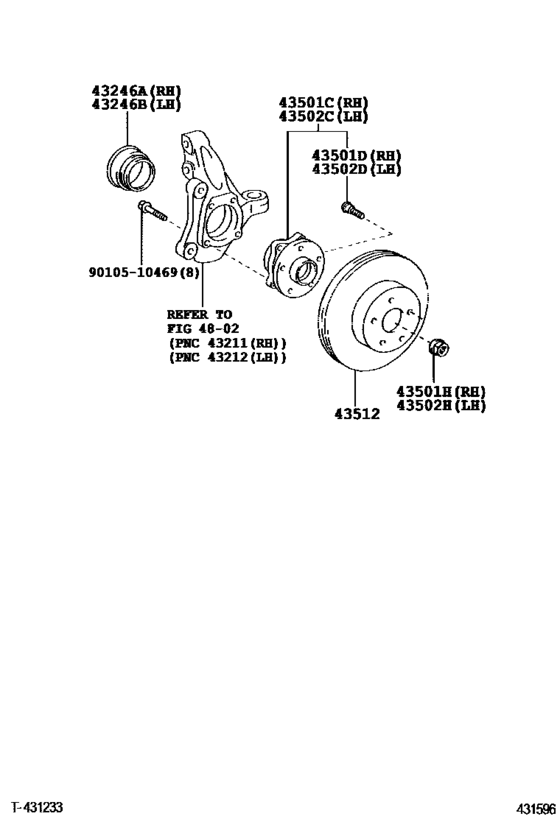

Front Axle Hub ([11.2005 - ] (0511- )) 9

#	OEM	Part name
43246	43246-47010	Deflector, Front Wheel Bearing Dust, No.1 Rh
43501	43510-47010	Hub Sub-Assy, Front Axle
43501	43510-47012	Hub Sub-Assy, Front Axle
43501	43510-47011	Hub Sub-Assy, Front Axle
43501	90942-02049	Bolt, Hub
43501	90942-02082	Bolt, Hub
43501	90177-22001	Nut (For Axle Shaft)
43512	43512-47030	Disc, Front
9010510469	90105-10469	Bolt (For Rear Axle Bearing Case Rh)

OEM	Part name	Category
43246-47010	Deflector, Front Wheel Bearing Dust, No.1 Rh	Front Axle Hub ([11.2005 - ] (0511- ))
43510-47010	Hub Sub-Assy, Front Axle	Front Axle Hub ([11.2005 - ] (0511- ))
43510-47011	Hub Sub-Assy, Front Axle	Front Axle Hub ([11.2005 - ] (0511- ))
43510-47012	Hub Sub-Assy, Front Axle	Front Axle Hub ([11.2005 - ] (0511- ))
43512-47030	Disc, Front	Front Axle Hub ([11.2005 - ] (0511- ))
90105-10469	Bolt (For Rear Axle Bearing Case Rh)	Front Axle Hub ([11.2005 - ] (0511- ))
90177-22001	Nut (For Axle Shaft)	Front Axle Hub ([11.2005 - ] (0511- ))
90942-02049	Bolt, Hub	Front Axle Hub ([11.2005 - ] (0511- ))
90942-02082	Bolt, Hub	Front Axle Hub ([11.2005 - ] (0511- ))
