Search › Model › NHW20
NHW20

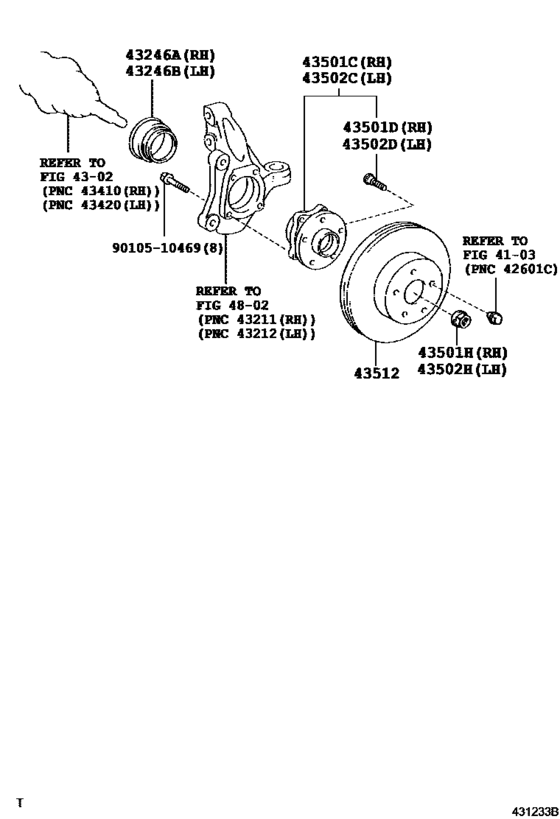

Front Axle Hub ([08.2003 - ] (0308- )) 9
| # | OEM | Part name |
|---|---|---|
| 43246 | 43246-47010 | Deflector, Front Wheel Bearing Dust, No.1 Rh |
| 43501 | 43510-47010 | Hub Sub-Assy, Front Axle |
| 43501 | 43510-47012 | Hub Sub-Assy, Front Axle |
| 43501 | 43510-47011 | Hub Sub-Assy, Front Axle |
| 43501 | 90942-02049 | Bolt, Hub |
| 43501 | 90942-02082 | Bolt, Hub |
| 43501 | 90177-22001 | Nut (For Axle Shaft) |
| 43512 | 43512-47030 | Disc, Front |
| 9010510469 | 90105-10469 | Bolt (For Rear Axle Bearing Case Rh) |
| OEM | Part name | Category |
|---|---|---|
| 43246-47010 | Deflector, Front Wheel Bearing Dust, No.1 Rh | Front Axle Hub ([08.2003 - ] (0308- )) |
| 43510-47010 | Hub Sub-Assy, Front Axle | Front Axle Hub ([08.2003 - ] (0308- )) |
| 43510-47011 | Hub Sub-Assy, Front Axle | Front Axle Hub ([08.2003 - ] (0308- )) |
| 43510-47012 | Hub Sub-Assy, Front Axle | Front Axle Hub ([08.2003 - ] (0308- )) |
| 43512-47030 | Disc, Front | Front Axle Hub ([08.2003 - ] (0308- )) |
| 90105-10469 | Bolt (For Rear Axle Bearing Case Rh) | Front Axle Hub ([08.2003 - ] (0308- )) |
| 90177-22001 | Nut (For Axle Shaft) | Front Axle Hub ([08.2003 - ] (0308- )) |
| 90942-02049 | Bolt, Hub | Front Axle Hub ([08.2003 - ] (0308- )) |
| 90942-02082 | Bolt, Hub | Front Axle Hub ([08.2003 - ] (0308- )) |
