NHW20

Toyota PRIUS · 2003 · 4,497 parts · 307 categories

4,497 items

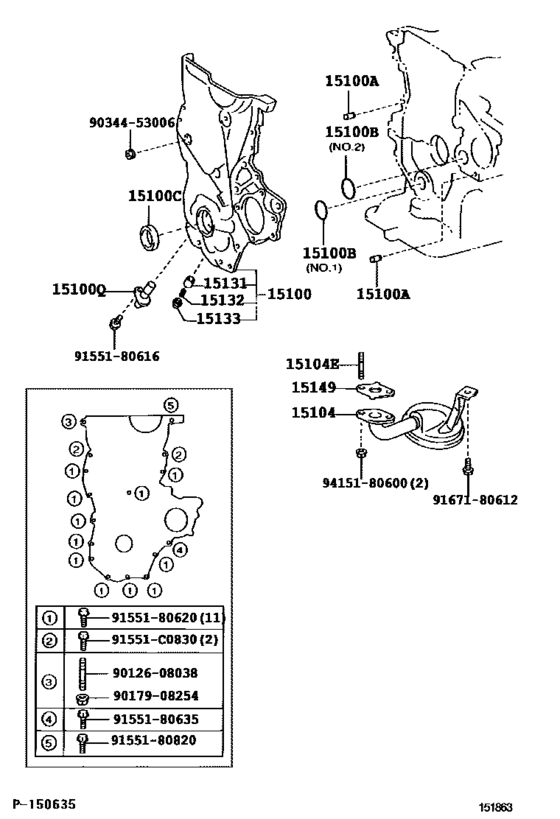

Engine Oil Pump ([08.2003 - ] (0308- )) 30

#	OEM	Part name
15100	15100-21050	Pump Assy, Oil
15100	15100-21052	Pump Assy, Oil
15100	90253-08003	Pin, Ring W/head
15100	11497-21010	Ring, O(For Oil Pump)
15100	12151-21010	Ring, O(For Oil Pump)
15100	90301-31012	Ring, O(For Oil Pump)
15100	90301-42006	Ring, O(For Oil Pump)
15100	90311-25021	Seal, Oil(For Timing Chain Or Belt Cover)
15100	90311-25032	Seal, Oil(For Timing Chain Or Belt Cover)
15100	90919-05045	Sensor, Crank Position
15100	90919-05087	Sensor, Crank Position
15100	90919-05081	Sensor, Crank Position
15104	15104-21021	Strainer Sub-Assy, Oil
15104	15104-21022	Strainer Sub-Assy, Oil
15104	90126-06021	Bolt, Stud(For Oil Strainer)
15131	15131-21020	Valve, Oil Pump Relief
15132	15132-21050	Spring, Oil Pump Relief Valve
15133	15133-21020	Plug, Oil Pump Relief Valve
15133	15133-21030	Plug, Oil Pump Relief Valve
15149	16258-21030	Gasket, Oil Strainer Flange
91551	91551-C0830	BOLT FLANGE
9012608038	90126-08038	New Genuine Part
9017908254	90179-08254	NUT
9034453006	90344-53006	Plug, Tight, No.1(For Timing Gear Cover)
9155180616	91551-80616	BOLT FLANGE
9155180620	91551-80620	Bolt
9155180635	91551-80635	Bolt(For Head To Camshaft Bearing Cap)
9155180820	91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)
9167180612	91671-80612	Bolt
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
11497-21010	Ring, O(For Oil Pump)	Engine Oil Pump ([08.2003 - ] (0308- ))
12151-21010	Ring, O(For Oil Pump)	Engine Oil Pump ([08.2003 - ] (0308- ))
15100-21050	Pump Assy, Oil	Engine Oil Pump ([08.2003 - ] (0308- ))
15100-21052	Pump Assy, Oil	Engine Oil Pump ([08.2003 - ] (0308- ))
15104-21021	Strainer Sub-Assy, Oil	Engine Oil Pump ([08.2003 - ] (0308- ))
15104-21022	Strainer Sub-Assy, Oil	Engine Oil Pump ([08.2003 - ] (0308- ))
15131-21020	Valve, Oil Pump Relief	Engine Oil Pump ([08.2003 - ] (0308- ))
15132-21050	Spring, Oil Pump Relief Valve	Engine Oil Pump ([08.2003 - ] (0308- ))
15133-21020	Plug, Oil Pump Relief Valve	Engine Oil Pump ([08.2003 - ] (0308- ))
15133-21030	Plug, Oil Pump Relief Valve	Engine Oil Pump ([08.2003 - ] (0308- ))
16258-21030	Gasket, Oil Strainer Flange	Engine Oil Pump ([08.2003 - ] (0308- ))
90126-06021	Bolt, Stud(For Oil Strainer)	Engine Oil Pump ([08.2003 - ] (0308- ))
90126-08038	New Genuine Part	Engine Oil Pump ([08.2003 - ] (0308- ))
90179-08254	NUT	Engine Oil Pump ([08.2003 - ] (0308- ))
90253-08003	Pin, Ring W/head	Engine Oil Pump ([08.2003 - ] (0308- ))
90301-31012	Ring, O(For Oil Pump)	Engine Oil Pump ([08.2003 - ] (0308- ))
90301-42006	Ring, O(For Oil Pump)	Engine Oil Pump ([08.2003 - ] (0308- ))
90311-25021	Seal, Oil(For Timing Chain Or Belt Cover)	Engine Oil Pump ([08.2003 - ] (0308- ))
90311-25032	Seal, Oil(For Timing Chain Or Belt Cover)	Engine Oil Pump ([08.2003 - ] (0308- ))
90344-53006	Plug, Tight, No.1(For Timing Gear Cover)	Engine Oil Pump ([08.2003 - ] (0308- ))
90919-05045	Sensor, Crank Position	Engine Oil Pump ([08.2003 - ] (0308- ))
90919-05081	Sensor, Crank Position	Engine Oil Pump ([08.2003 - ] (0308- ))
90919-05087	Sensor, Crank Position	Engine Oil Pump ([08.2003 - ] (0308- ))
91551-80616	BOLT FLANGE	Engine Oil Pump ([08.2003 - ] (0308- ))
91551-80620	Bolt	Engine Oil Pump ([08.2003 - ] (0308- ))
91551-80635	Bolt(For Head To Camshaft Bearing Cap)	Engine Oil Pump ([08.2003 - ] (0308- ))
91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)	Engine Oil Pump ([08.2003 - ] (0308- ))
91551-C0830	BOLT FLANGE	Engine Oil Pump ([08.2003 - ] (0308- ))
91671-80612	Bolt	Engine Oil Pump ([08.2003 - ] (0308- ))
94151-80600	Nut, Cap(For Cylinder Head Cover)	Engine Oil Pump ([08.2003 - ] (0308- ))
