Search › Model › NHW20

NHW20

Toyota PRIUS · 2003 · 4,497 parts · 307 categories

4,497 items

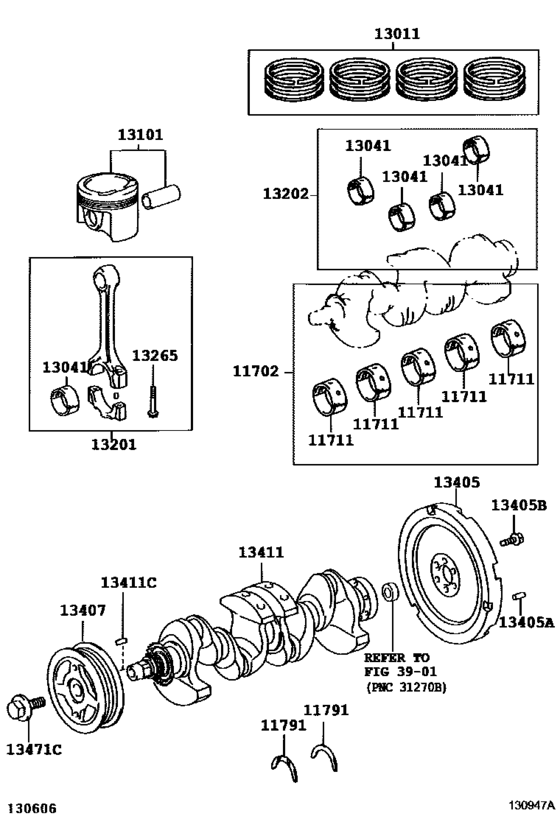

Crankshaft & Piston ([11.2005 - ] (0511- )) 35

#	OEM	Part name
11702	11704-21031	Bearing Set, Crankshaft
11702	11704-21032	Bearing Set, Crankshaft
11711	11701-21031-01	Bearing, Crankshaft
11711	11701-21032-01	Bearing, Crankshaft
11711	11701-21031-02	Bearing, Crankshaft
11711	11701-21032-02	Bearing, Crankshaft
11711	11701-21031-03	Bearing, Crankshaft
11711	11701-21032-03	Bearing, Crankshaft
11711	11701-21031-04	Bearing, Crankshaft
11711	11701-21032-04	Bearing, Crankshaft
11791	11791-22020	Washer, Crankshaft Thrust, Upper
11791	11792-22020	Washer, Crankshaft Thrust, Upper
11791	11793-22020	Washer, Crankshaft Thrust, Upper
13011	13011-21100	Ring Set, Piston
13011	13011-21130	Piston Ring Set (STD)
13041	13041-21022-01	Bearing, Connecting Rod
13041	13041-21033-01	Bearing, Connecting Rod
13041	13041-21022-02	Bearing, Connecting Rod
13041	13041-21033-02	Bearing, Connecting Rod
13041	13041-21022-03	Bearing, Connecting Rod
13041	13041-21033-03	Bearing, Connecting Rod
13101	13101-21110	Piston Sub-Assy, W/pin
13201	13201-29735	Rod Sub-Assy, Connecting
13201	13201-29737	Rod Sub-Assy, Connecting
13202	13204-21022	Bearing Set, Connecting Rod
13202	13204-21033	Bearing Set, Connecting Rod
13265	13265-21020	Bolt, Connecting Rod
13405	13451-21070	Flywheel Sub-Assy
13405	90250-08120	Pin, Straight, No.1
13405	90913-01024	Bolt, Flywheel Setting
13407	13407-21040	Damper Sub-Assy, Crankshaft
13411	13401-21040	Crankshaft
13411	90254-03025	Pin, Straight(For Crankshaft)
13411	90250-03095	Pin, Straight(For Crankshaft)
13471	90119-12345	Bolt(For Crankshaft Pulley Set)

OEM	Part name	Category
11701-21031-01	Bearing, Crankshaft	Crankshaft & Piston ([11.2005 - ] (0511- ))
11701-21031-02	Bearing, Crankshaft	Crankshaft & Piston ([11.2005 - ] (0511- ))
11701-21031-03	Bearing, Crankshaft	Crankshaft & Piston ([11.2005 - ] (0511- ))
11701-21031-04	Bearing, Crankshaft	Crankshaft & Piston ([11.2005 - ] (0511- ))
11701-21032-01	Bearing, Crankshaft	Crankshaft & Piston ([11.2005 - ] (0511- ))
11701-21032-02	Bearing, Crankshaft	Crankshaft & Piston ([11.2005 - ] (0511- ))
11701-21032-03	Bearing, Crankshaft	Crankshaft & Piston ([11.2005 - ] (0511- ))
11701-21032-04	Bearing, Crankshaft	Crankshaft & Piston ([11.2005 - ] (0511- ))
11704-21031	Bearing Set, Crankshaft	Crankshaft & Piston ([11.2005 - ] (0511- ))
11704-21032	Bearing Set, Crankshaft	Crankshaft & Piston ([11.2005 - ] (0511- ))
11791-22020	Washer, Crankshaft Thrust, Upper	Crankshaft & Piston ([11.2005 - ] (0511- ))
11792-22020	Washer, Crankshaft Thrust, Upper	Crankshaft & Piston ([11.2005 - ] (0511- ))
11793-22020	Washer, Crankshaft Thrust, Upper	Crankshaft & Piston ([11.2005 - ] (0511- ))
13011-21100	Ring Set, Piston	Crankshaft & Piston ([11.2005 - ] (0511- ))
13011-21130	Piston Ring Set (STD)	Crankshaft & Piston ([11.2005 - ] (0511- ))
13041-21022-01	Bearing, Connecting Rod	Crankshaft & Piston ([11.2005 - ] (0511- ))
13041-21022-02	Bearing, Connecting Rod	Crankshaft & Piston ([11.2005 - ] (0511- ))
13041-21022-03	Bearing, Connecting Rod	Crankshaft & Piston ([11.2005 - ] (0511- ))
13041-21033-01	Bearing, Connecting Rod	Crankshaft & Piston ([11.2005 - ] (0511- ))
13041-21033-02	Bearing, Connecting Rod	Crankshaft & Piston ([11.2005 - ] (0511- ))
13041-21033-03	Bearing, Connecting Rod	Crankshaft & Piston ([11.2005 - ] (0511- ))
13101-21110	Piston Sub-Assy, W/pin	Crankshaft & Piston ([11.2005 - ] (0511- ))
13201-29735	Rod Sub-Assy, Connecting	Crankshaft & Piston ([11.2005 - ] (0511- ))
13201-29737	Rod Sub-Assy, Connecting	Crankshaft & Piston ([11.2005 - ] (0511- ))
13204-21022	Bearing Set, Connecting Rod	Crankshaft & Piston ([11.2005 - ] (0511- ))
13204-21033	Bearing Set, Connecting Rod	Crankshaft & Piston ([11.2005 - ] (0511- ))
13265-21020	Bolt, Connecting Rod	Crankshaft & Piston ([11.2005 - ] (0511- ))
13401-21040	Crankshaft	Crankshaft & Piston ([11.2005 - ] (0511- ))
13407-21040	Damper Sub-Assy, Crankshaft	Crankshaft & Piston ([11.2005 - ] (0511- ))
13451-21070	Flywheel Sub-Assy	Crankshaft & Piston ([11.2005 - ] (0511- ))
90119-12345	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([11.2005 - ] (0511- ))
90250-03095	Pin, Straight(For Crankshaft)	Crankshaft & Piston ([11.2005 - ] (0511- ))
90250-08120	Pin, Straight, No.1	Crankshaft & Piston ([11.2005 - ] (0511- ))
90254-03025	Pin, Straight(For Crankshaft)	Crankshaft & Piston ([11.2005 - ] (0511- ))
90913-01024	Bolt, Flywheel Setting	Crankshaft & Piston ([11.2005 - ] (0511- ))
