Search › Model › NHW20

NHW20

Toyota PRIUS · 2003 · 4,497 parts · 307 categories

4,497 items

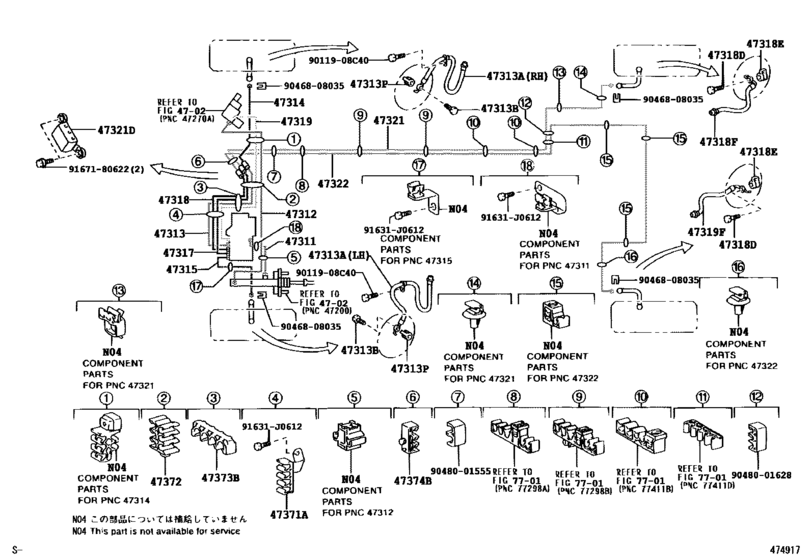

Brake Tube & Clamp ([11.2005 - ] (0511- )) 48

#	OEM	Part name
44510	44500-47120	Actuator Assy, Brake
44510	44500-47121	Actuator Assy, Brake
44545	44545-63010	Bolt, Union(For Brake Actuator)
44590	44590-47040	Bracket Assy, Brake Actuator
44599	44599-47020	Damper, Brake Actuator
47311	47311-47070	Tube, Front Brake, No.1
47312	47312-47040	Tube, Front Brake, No.2
47313	47313-47050	Tube, Front Brake, No.3
47313	90947-02D81	Hose, Flexible, No.1(For Front)
47313	90947-02F17	Hose, Flexible, No.1(For Front)
47313	90947-02D82	Hose, Flexible, No.1(For Front)
47313	90947-02F18	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	47389-50020	Gasket(For Front Flexible Hose)
47314	47314-47050	Tube, Front Brake, No.4
47315	47315-47050	Tube, Front Brake, No.5
47317	47317-47040	Tube, Front Brake, No.7
47317	47317-47030	Tube, Front Brake, No.7
47318	47318-47030	Tube, Front Brake, No.8
47318	90947-02D80	Hose, Flexible(For Rear Rh)
47318	90947-02F16	Hose, Flexible(For Rear Rh)
47319	47319-47050	Tube, Front Brake, No.9
47321	47320-47011	Tube, Rear Brake, No.1
47321	90412-10249	Way, No.1(For Rear Brake Tube)
47322	47320-47020	Tube, Rear Brake, No.2
47371	47371-47030	Clamp, Brake Tube, No.1
47372	90949-01C51	Clamp, Brake Tube, No.1
47373	90949-01540	Clamp, Brake Tube, No.7
47374	90949-01C13	Clamp, Brake Tube, No.4
47381	47381-47010	Bracket, Brake Tube Clamp No.1
47381	47381-47020	Bracket, Brake Tube Clamp No.1
47997	47997-60010	Label, Brake Booster Accumlator Caution, No.1
47997	47997-48010	Label, Brake Booster Accumlator Caution, No.1
91511	91511-J0625	Bolt(For Cylinder Head Cover)
91631	91631-J0612	BRACKET
9011908	90119-08C40	New Genuine Part
9010508153	90105-08153	New Genuine Part
9011908336	90119-08336	BOLT
9017906074	90179-06074	Nut(For Suspension Control Oil Cooler)
9017906274	90179-06274	Nut
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9048001555	90480-01555	Grommet(For Front Brake Tube)
9048001628	90480-01628	Grommet(For Brake Tube)
9056108056	90561-08056	New Genuine Part
9161160814	91611-60814	Bolt
9167180622	91671-80622	Bolt
9415080800	94150-80800	NUT, FLANGE

OEM	Part name	Category
44500-47120	Actuator Assy, Brake	Brake Tube & Clamp ([11.2005 - ] (0511- ))
44500-47121	Actuator Assy, Brake	Brake Tube & Clamp ([11.2005 - ] (0511- ))
44545-63010	Bolt, Union(For Brake Actuator)	Brake Tube & Clamp ([11.2005 - ] (0511- ))
44590-47040	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([11.2005 - ] (0511- ))
44599-47020	Damper, Brake Actuator	Brake Tube & Clamp ([11.2005 - ] (0511- ))
47311-47070	Tube, Front Brake, No.1	Brake Tube & Clamp ([11.2005 - ] (0511- ))
47312-47040	Tube, Front Brake, No.2	Brake Tube & Clamp ([11.2005 - ] (0511- ))
47313-47050	Tube, Front Brake, No.3	Brake Tube & Clamp ([11.2005 - ] (0511- ))
47314-47050	Tube, Front Brake, No.4	Brake Tube & Clamp ([11.2005 - ] (0511- ))
47315-47050	Tube, Front Brake, No.5	Brake Tube & Clamp ([11.2005 - ] (0511- ))
47317-47030	Tube, Front Brake, No.7	Brake Tube & Clamp ([11.2005 - ] (0511- ))
47317-47040	Tube, Front Brake, No.7	Brake Tube & Clamp ([11.2005 - ] (0511- ))
47318-47030	Tube, Front Brake, No.8	Brake Tube & Clamp ([11.2005 - ] (0511- ))
47319-47050	Tube, Front Brake, No.9	Brake Tube & Clamp ([11.2005 - ] (0511- ))
47320-47011	Tube, Rear Brake, No.1	Brake Tube & Clamp ([11.2005 - ] (0511- ))
47320-47020	Tube, Rear Brake, No.2	Brake Tube & Clamp ([11.2005 - ] (0511- ))
47371-47030	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([11.2005 - ] (0511- ))
47381-47010	Bracket, Brake Tube Clamp No.1	Brake Tube & Clamp ([11.2005 - ] (0511- ))
47381-47020	Bracket, Brake Tube Clamp No.1	Brake Tube & Clamp ([11.2005 - ] (0511- ))
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([11.2005 - ] (0511- ))
47997-48010	Label, Brake Booster Accumlator Caution, No.1	Brake Tube & Clamp ([11.2005 - ] (0511- ))
47997-60010	Label, Brake Booster Accumlator Caution, No.1	Brake Tube & Clamp ([11.2005 - ] (0511- ))
90105-08153	New Genuine Part	Brake Tube & Clamp ([11.2005 - ] (0511- ))
90119-08336	BOLT	Brake Tube & Clamp ([11.2005 - ] (0511- ))
90119-08C40	New Genuine Part	Brake Tube & Clamp ([11.2005 - ] (0511- ))
90179-06074	Nut(For Suspension Control Oil Cooler)	Brake Tube & Clamp ([11.2005 - ] (0511- ))
90179-06274	Nut	Brake Tube & Clamp ([11.2005 - ] (0511- ))
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([11.2005 - ] (0511- ))
90412-10249	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([11.2005 - ] (0511- ))
90468-08035	CLIP	Brake Tube & Clamp ([11.2005 - ] (0511- ))
90468-A0007	New Genuine Part	Brake Tube & Clamp ([11.2005 - ] (0511- ))
90480-01555	Grommet(For Front Brake Tube)	Brake Tube & Clamp ([11.2005 - ] (0511- ))
90480-01628	Grommet(For Brake Tube)	Brake Tube & Clamp ([11.2005 - ] (0511- ))
90561-08056	New Genuine Part	Brake Tube & Clamp ([11.2005 - ] (0511- ))
90947-02D80	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([11.2005 - ] (0511- ))
90947-02D81	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.2005 - ] (0511- ))
90947-02D82	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.2005 - ] (0511- ))
90947-02F16	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([11.2005 - ] (0511- ))
90947-02F17	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.2005 - ] (0511- ))
90947-02F18	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.2005 - ] (0511- ))
90949-01540	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([11.2005 - ] (0511- ))
90949-01C13	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([11.2005 - ] (0511- ))
90949-01C51	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([11.2005 - ] (0511- ))
91511-J0625	Bolt(For Cylinder Head Cover)	Brake Tube & Clamp ([11.2005 - ] (0511- ))
91611-60814	Bolt	Brake Tube & Clamp ([11.2005 - ] (0511- ))
91631-J0612	BRACKET	Brake Tube & Clamp ([11.2005 - ] (0511- ))
91671-80622	Bolt	Brake Tube & Clamp ([11.2005 - ] (0511- ))
94150-80800	NUT, FLANGE	Brake Tube & Clamp ([11.2005 - ] (0511- ))

Source: Public OEM parts-catalog data
Variants: 2 / 11
Category: 307
Collected: 2026-08-02
