NHW20

Toyota PRIUS · 2003 · 4,497 parts · 307 categories
NHW20 ×

← Back to categories

4,497 items

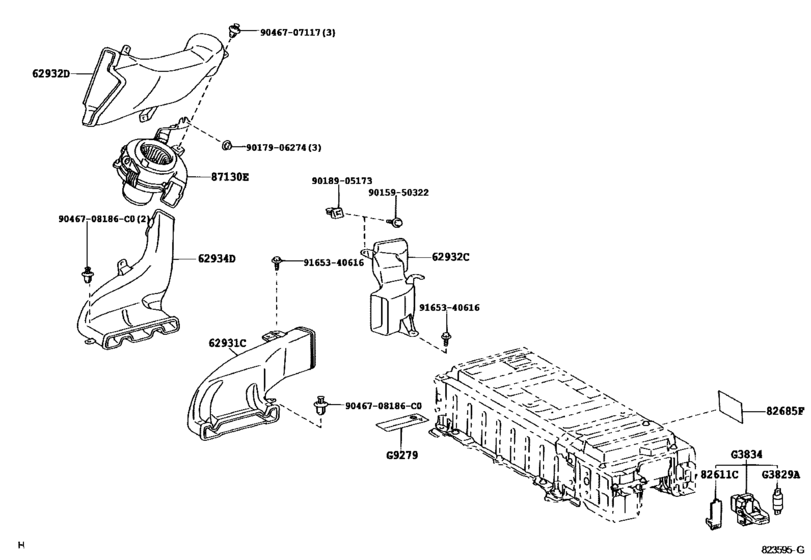

Battery & Battery Cable ([08.2003 - ] HV ﾊﾞｯﾃﾘ (0308- )) 59
#OEMPart name
0 90982-11047 Fuse, Electric Vehicle
0 90982-11049 Fuse, Electric Vehicle
28875 28875-21020 Duct, Battery Insulator, No.1
28876 28876-21020 Duct, Battery Insulator, No.2
28885 28885-21030 Hose, Battery Room Ventilation
28895 28895-21020 Rubber, Battery Insulator
62931 62931-47020 Duct, Quarter Vent
62932 62932-47030 Duct, Quarter Vent, No.2
62932 63932-47030 Duct, Ventilator, Inner
62934 62934-47030 Duct, Quarter Vent, Inner No.2
74404 74404-47020 Carrier Sub-Assy, Battery, Upr
74405 74405-47030 Cover Sub-Assy, Battery
74427 74427-47030 Bracket, Battery Carrier Catch, No.1
74466 74466-47010 Panel, Battery Carrier, No.6
74471 74471-47020 Pad, Battery Clamp
74473 74473-47010 Cushion, Battery Carrier, No.3
74473 74473-47020 Cushion, Battery Carrier, No.3
74474 74474-47010 Spacer, Battery, No.2
82165 82165-47040 Wire, Frame, No.2
82611 82611-47050 Cover, Fuse Block
82670 82670-47070 Block Assy, Junction
82670 82670-47080 Block Assy, Junction
82675 82675-47080 Terminal, Junction
82685 82685-47030 Plate, Caution
82815 82815-47120 Cover, Wiring Harness Protector, No.1
82815 82815-47130 Cover, Wiring Harness Protector, No.1
82815 82815-47140 Cover, Wiring Harness Protector, No.2
82815 82815-47190 Cover, Wiring Harness Protector, No.3
82815 82815-47200 Cover, Wiring Harness Protector, No.4
87130 87130-47070 Blower Assy, Battery
89890 89890-47070 Computer Assy, Battery
89890 89890-47073 Computer Assy, Soc
89890 89890-47071 Computer Assy, Battery
89890 89890-47080 Computer Assy, Battery
89890 89890-47092 Computer Assy, Battery
89890 89890-47090 Computer Assy, Battery
89890 89890-47091 Computer Assy, Battery
91621 91621-J0612 BOLT W-WASHER
91631 91631-B0610 BOLTWWASHER
9011908 90119-08A93 New Genuine Part
5535847040 55358-47040 Plate, Water Proof
5535847040 55358-47020 Plate, Water Proof
9011905046 90119-05046 New Genuine Part
9011908827 90119-08827 New Genuine Part
9015950173 90159-50173 Screw
9015950322 90159-50322 SCREW WWASHER
9017905030 90179-05030 NUT
9017906274 90179-06274 Nut
9018205001 90182-05001 New Genuine Part
9018905012 90189-05012 New Genuine Part
9018905173 90189-05173 New Genuine Part
9046707117 90467-07117 Clip, Radiator Support To Frame
9046708186 90467-08186-C0 Clip(For Front Bumper), No.1
9155480825 91554-80825 New Genuine Part
9165340616 91653-40616 New Genuine Part
9338515010 93385-15010 Screw(For Steering Tilt Lever)
9354114010 93541-14010 New Genuine Part
9415180500 94151-80500 New Genuine Part
9415180600 94151-80600 Nut, Cap(For Cylinder Head Cover)
