NHW10

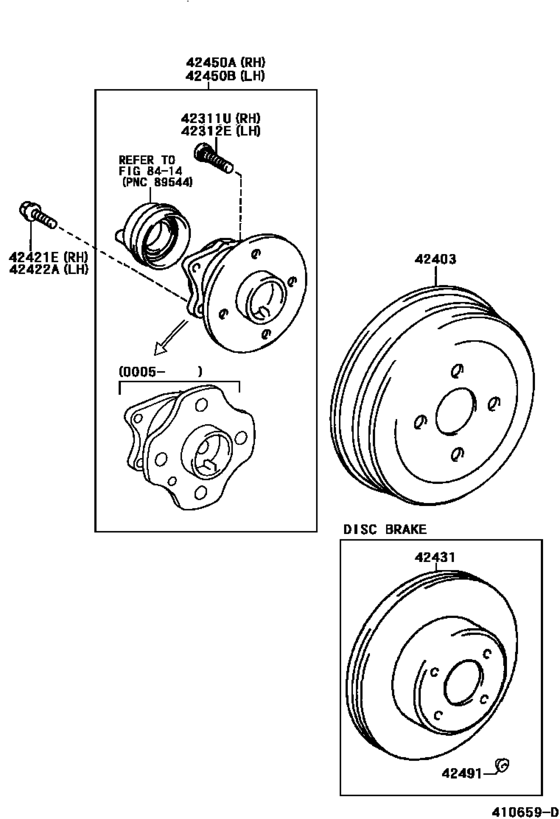

Rear Axle Shaft & Hub ([12.1997 - ] (9712- )) 6
| # | OEM | Part name |
|---|---|---|
| 42311 | 90942-02049 | Bolt, Hub |
| 42311 | 90942-02082 | Bolt, Hub |
| 42403 | 42431-47010 | Drum Sub-Assy, Rear Brake |
| 42403 | 42431-52021 | Drum Sub-Assy, Rear Brake |
| 42421 | 90105-10434 | Bolt (For Rear Axle Bearing Case Rh) |
| 42450 | 42450-47010 | Hub & Bearing Assy, Rear Axle, Rh |
| OEM | Part name | Category |
|---|---|---|
| 42431-47010 | Drum Sub-Assy, Rear Brake | Rear Axle Shaft & Hub ([12.1997 - ] (9712- )) |
| 42431-52021 | Drum Sub-Assy, Rear Brake | Rear Axle Shaft & Hub ([12.1997 - ] (9712- )) |
| 42450-47010 | Hub & Bearing Assy, Rear Axle, Rh | Rear Axle Shaft & Hub ([12.1997 - ] (9712- )) |
| 90105-10434 | Bolt (For Rear Axle Bearing Case Rh) | Rear Axle Shaft & Hub ([12.1997 - ] (9712- )) |
| 90942-02049 | Bolt, Hub | Rear Axle Shaft & Hub ([12.1997 - ] (9712- )) |
| 90942-02082 | Bolt, Hub | Rear Axle Shaft & Hub ([12.1997 - ] (9712- )) |
