Search › Model › NHW10

NHW10

Toyota PRIUS · 1997 · 2,815 parts · 134 categories

2,815 items

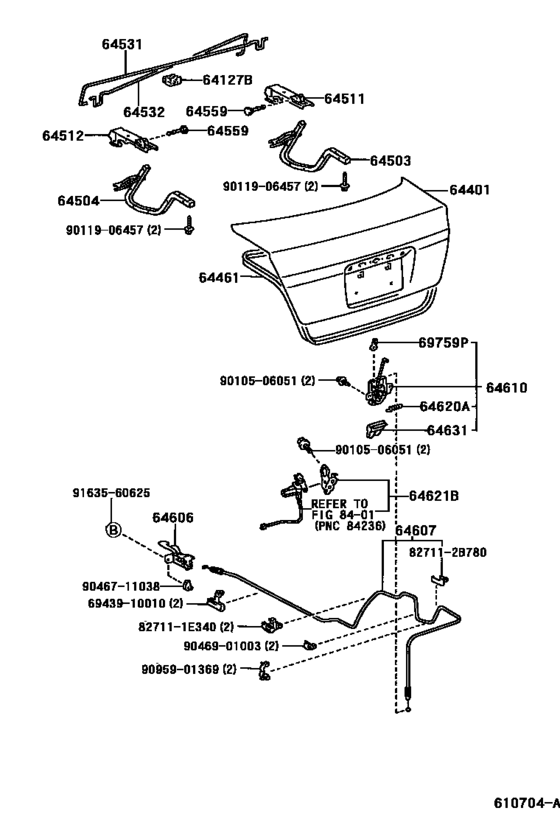

Luggage Compartment Door & Lock ([12.1997 - ] (9712- )) 29

#	OEM	Part name
0	82711-1E340	Clamp, Hood Lock Control Cable
64127	64127-20120	Support, Luggage Compartment Door Torsion Bar
64401	64401-47010	Panel Sub-Assy, Luggage Compartment Door
64401	64401-47011	Panel Sub-Assy, Luggage Compartment Door
64461	64461-47010	Weatherstrip, Luggage Compartment Door
64503	64503-47010	Arm Sub-Assy, Luggage Compartment Door Hinge, Rh
64511	64511-12230	Support, Luggage Compartment Door Hinge, Rh
64531	64531-47010	Bar, Luggage Door Hinge Torsion, Rh
64532	64532-47010	Bar, Luggage Door Hinge Torsion, Lh
64559	64559-12040	Pin, Luggage Door Hinge
64606	64606-20180	Lever Sub-Assy, Luggage Door Lock Open
64607	64607-47010	Cable Sub-Assy, Luggage Door Lock Control
64607	64607-47011	Cable Sub-Assy, Luggage Door Lock Control
64610	64610-47010	Lock Assy, Luggage Compartment Door
64610	64610-47011	Lock Assy, Luggage Compartment Door
64620	90905-06021	Spring, Tension(For Lock)
64621	64620-47010	Striker Assy, Luggage Compartment Door
64631	64631-16020	Protector, Luggage Door Lock
69759	69759-20040	Snap, Auxiliary Catch Release Lever Control Link
827112	82711-2B780	Clamp No.1 (For Windseield Washer)
6943910010	69439-10010	Clamp, Back Door Lock Control Cable
9010506051	90105-06051	New Genuine Part
9010506051	90105-06168	BOLT WASHER BASED
9011906457	90119-06457	New Genuine Part
9046711038	90467-11038	CLAMP
9046901003	90469-01003	Clamp(For Hood Lock Control Cable)
9095901369	90959-01369	Clamp, Hood Lock Control Cable
9163560625	91635-60625	Screw(For Steering Column Tube)
9163560625	91631-60622	Screw

OEM	Part name	Category
64127-20120	Support, Luggage Compartment Door Torsion Bar	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
64401-47010	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
64401-47011	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
64461-47010	Weatherstrip, Luggage Compartment Door	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
64503-47010	Arm Sub-Assy, Luggage Compartment Door Hinge, Rh	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
64511-12230	Support, Luggage Compartment Door Hinge, Rh	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
64531-47010	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
64532-47010	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
64559-12040	Pin, Luggage Door Hinge	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
64606-20180	Lever Sub-Assy, Luggage Door Lock Open	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
64607-47010	Cable Sub-Assy, Luggage Door Lock Control	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
64607-47011	Cable Sub-Assy, Luggage Door Lock Control	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
64610-47010	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
64610-47011	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
64620-47010	Striker Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
64631-16020	Protector, Luggage Door Lock	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
69439-10010	Clamp, Back Door Lock Control Cable	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
69759-20040	Snap, Auxiliary Catch Release Lever Control Link	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
82711-1E340	Clamp, Hood Lock Control Cable	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
82711-2B780	Clamp No.1 (For Windseield Washer)	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
90105-06051	New Genuine Part	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
90105-06168	BOLT WASHER BASED	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
90119-06457	New Genuine Part	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
90467-11038	CLAMP	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
90469-01003	Clamp(For Hood Lock Control Cable)	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
90905-06021	Spring, Tension(For Lock)	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
90959-01369	Clamp, Hood Lock Control Cable	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
91631-60622	Screw	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
91635-60625	Screw(For Steering Column Tube)	Luggage Compartment Door & Lock ([12.1997 - ] (9712- ))
