NHW10

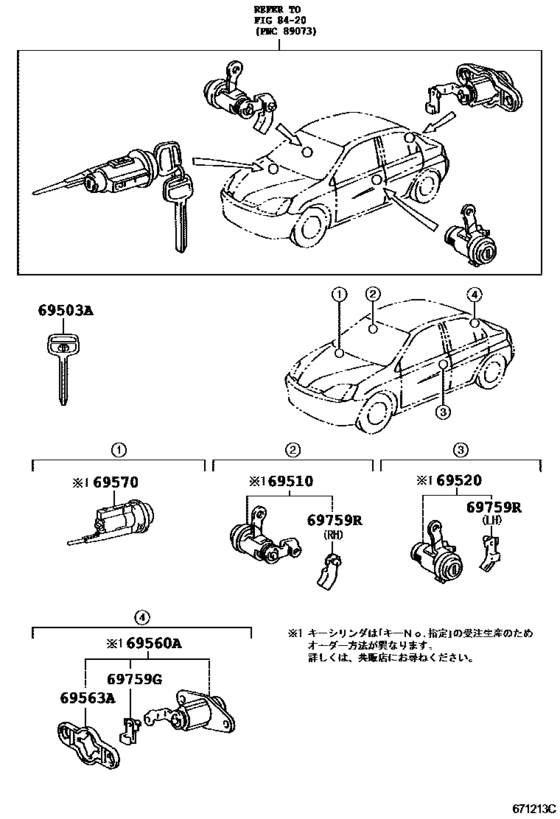

Lock Cylinder Set ([12.1997 - ] (9712- )) 10
| # | OEM | Part name |
|---|---|---|
| 69503 | 90999-00186 | Key, Blank |
| 69510 | 69510-47010 | Cylinder Assy, Front Door Lock, Rh |
| 69520 | 69520-47010 | Cylinder Assy, Front Door Lock, Lh |
| 69560 | 69560-47010 | Cylinder Assy, Luggage Compartment Door Lock |
| 69563 | 69563-12100 | Pad, Luggage Compartment Door Lock Cylinder |
| 69570 | 69570-20220 | Cylinder Assy, Ignition Switch Lock |
| 69570 | 69570-12220 | Cylinder Assy, Ignition Switch Lock |
| 69759 | 69759-20090 | Snap(For Rear Door Lock) |
| 69759 | 69759-12080 | Snap, Front Door Lock Cylinder |
| 69759 | 69759-12090 | Snap, Front Door Lock Cylinder |
| OEM | Part name | Category |
|---|---|---|
| 69510-47010 | Cylinder Assy, Front Door Lock, Rh | Lock Cylinder Set ([12.1997 - ] (9712- )) |
| 69520-47010 | Cylinder Assy, Front Door Lock, Lh | Lock Cylinder Set ([12.1997 - ] (9712- )) |
| 69560-47010 | Cylinder Assy, Luggage Compartment Door Lock | Lock Cylinder Set ([12.1997 - ] (9712- )) |
| 69563-12100 | Pad, Luggage Compartment Door Lock Cylinder | Lock Cylinder Set ([12.1997 - ] (9712- )) |
| 69570-12220 | Cylinder Assy, Ignition Switch Lock | Lock Cylinder Set ([12.1997 - ] (9712- )) |
| 69570-20220 | Cylinder Assy, Ignition Switch Lock | Lock Cylinder Set ([12.1997 - ] (9712- )) |
| 69759-12080 | Snap, Front Door Lock Cylinder | Lock Cylinder Set ([12.1997 - ] (9712- )) |
| 69759-12090 | Snap, Front Door Lock Cylinder | Lock Cylinder Set ([12.1997 - ] (9712- )) |
| 69759-20090 | Snap(For Rear Door Lock) | Lock Cylinder Set ([12.1997 - ] (9712- )) |
| 90999-00186 | Key, Blank | Lock Cylinder Set ([12.1997 - ] (9712- )) |
