| 87010-47011 |
Unit Assy, Air Conditioner |

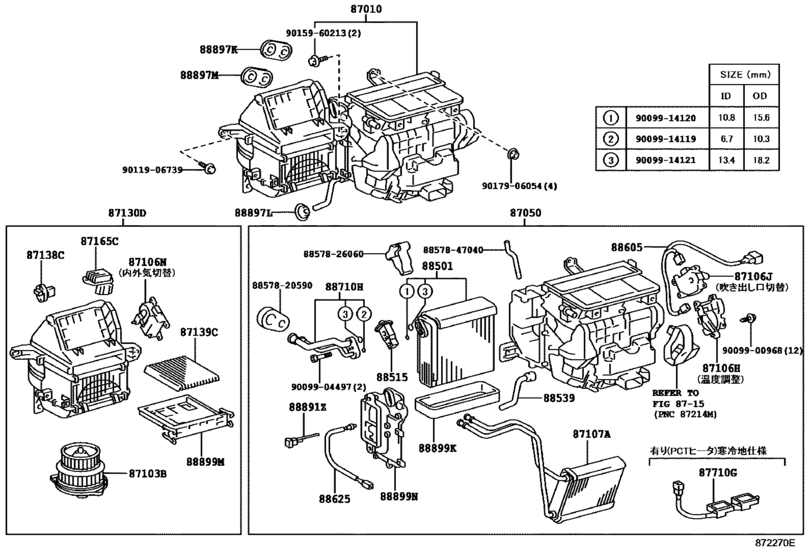

Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 87010-47021 |
Unit Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 87050-47011 |
Radiator Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 87050-47021 |
Radiator Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 87103-47010 |
Motor Sub-Assy, Blower W/fan |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 87106-47010 |
Servo Sub-Assy, Damper(For Airmix) |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 87106-47020 |
Servo Sub-Assy, Damper(For Mode) |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 87106-47030 |
Servo Sub-Assy, Damper(For Recirculation) |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 87107-47010 |
Unit Sub-Assy, Heater Radiator |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 87130-47020 |
Blower Assy |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 87138-47010 |
Resistor, Blower |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 87139-28010 |
Filter, Clean Air |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 87139-47020 |
Filter, Clean Air |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 87165-47010 |
Control, Blower Motor |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 87710-47010 |
Quick Heater Assy |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 88501-47010 |
Evaporator Sub-Assy, Cooler, No.1 |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 88515-30700 |
Valve, Cooler Expansion |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 88515-47020 |
Valve, Cooler Expansion |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 88515-48040 |
Valve, Cooler Expansion |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 88539-47010 |
Hose, Cooler Unit Drain, No.1 |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 88578-20590 |
Packing, Cooling Unit, No.1 |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 88578-26060 |
Packing, Cooling Unit, No.1 |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 88578-41030 |
Packing, Cooling Unit, No.1 |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 88578-47040 |
Paking, Cooler Air Duct |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 88605-47010 |
Harness Sub-Assy, Cooler Wiring, No.1 |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 88625-47011 |
Thermistor, Cooler, No.1 |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 88710-47010 |
Tube & Accessory Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 88891-20240 |
Cover, Cooler, No.1 |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 88897-12240 |
Grommet, (For Cooler Pipe) |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 88899-47010 |
Plate, Cover(For Air Filter) |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 88899-47020 |
Plate, Cover |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 88899-47030 |
Plate, Cover |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 90099-00968 |
Screw(For Air Conditioner Unit) |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 90099-04497 |
BOLT |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 90099-14119 |
Ring, O(For Cooler Refrigerant Liquid Pipe) |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 90099-14119-TH |
O RING |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 90099-14120 |
O-Ring, Cooler Evaporator No.1(Discharge) |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 90099-14121 |
O-Ring, Cooler Evaporator No.1(Suction) |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 90099-32129 |
Grommet (For Cooler Unit Drain Hose) |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 90119-06739 |
New Genuine Part |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 90159-60213 |
New Genuine Part |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 90179-06054 |
NUT |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 90179-06314 |
NUT |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
| 90480-01405 |
Grommet, Heater Hose |
Heating & Air Conditioning - Cooler Unit ([12.1997 - 05.2000] (9712-0005)) |
