Search › Model › NHW10

NHW10

Toyota PRIUS · 1997 · 2,815 parts · 134 categories

2,815 items

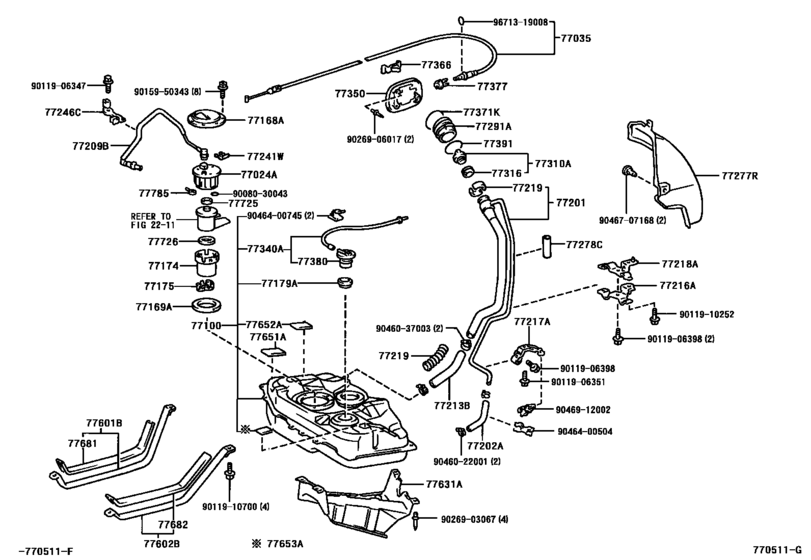

Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005)) 90

#	OEM	Part name
77024	77024-47010	Plate Sub-Assy, Fuel Suction
77035	77035-47010	Cable Sub-Assy, Fuel Lid Lock Control
77035	77035-47011	Cable Sub-Assy, Fuel Lid Lock Control
77100	77001-47020	Tank Assy, Fuel
77100	77001-47060	Tank Assy, Fuel
77168	77168-12240	Plate, Fuel Tank Vent Tube Set
77168	77168-33050	Plate, Fuel Tank Vent Tube Set
77169	77169-33020	Gasket, Fuel Pump Bracket
77174	77174-33010	Support, Fuel Suction, No.1
77175	77175-47010	Support, Fuel Suction, No.2
77179	77179-33010	Gasket, Fuel Tank Evap/vent Tube
77201	77201-47020	Pipe Sub-Assy, Fuel Tank Inlet
77202	95313-13020	Hose, Fuel, No.1 (For Breather Tube)
77209	77209-47010	Tube Sub-Assy, Fuel Pump
77213	77213-47010	Hose, Fuel Tank To Filler Pipe
77213	77213-47020	Hose, Fuel Tank To Filler Pipe
77216	77216-47010	Support, Fuel Tank Filler Pipe, No.1
77216	77216-47020	Support, Fuel Tank Filler Pipe, No.1
77217	77217-47010	Support, Fuel Tank Filler Pipe, No.2
77218	77218-47010	Support, Fuel Tank Filler Pipe, No.3
77218	77218-47020	Support, Fuel Tank Filler Pipe, No.3
77219	77219-32030	Cover, Fuel Tank Filler Pipe
77219	77219-44010	Cover, Fuel Tank Filler Pipe
77241	77241-33011	Clip, Tube Joint
77246	77246-47010	Support, Fuel Main Tube
77246	77246-47020	Support, Fuel Main Tube
77251	77251-47010	Tube, Fuel Main
77261	77261-47010	Tube, Fuel Tank To Canister
77277	77277-47010	Protector, Fuel Tank Filler Pipe
77278	77278-47010	Protector, Fuel Tank Filler Pipe, No.2
77285	77285-10020	Clamp, Fuel Tube W/grommet, No.1
77286	77286-47010	Clamp, Fuel Tube W/grommet, No.2
77289	77289-47010	Clamp, Fuel Tube W/grommet, No.1
77291	77291-47010	Shield, Fuel Tank Filler Pipe
77295	77295-22110	Clamp, Fuel Tube W/grommet, No.1
77295	77295-42010	Clamp, Fuel Tube W/grommet, No.1
77310	77310-48010	Cap Assy, Fuel Tank
77316	77316-16010	Gasket (For Fuel Tank Cap)
77340	77340-47010	Valve Assy, Fuel Cut Off W/tube
77350	77350-47010	Lid Assy, Fuel Filler Opening
77366	77360-22020	Spring, Fuel Filler Opening Lid Hinge
77371	77371-47010	Bracket, Fuel Filler Opening Lid Lock
77377	77377-12050	Bracket, Fuel Lid Lock Control
77380	77380-47010	Valve Assy, Fuel Cut Off
77391	77391-12020	Ring, Fuel Inlet Box
77414	77414-47010	Support, Fuel Tube Grommet, No.4
77601	77601-47010	Band Sub-Assy, Fuel Tank, No.1 Rh
77602	77602-47010	Band Sub-Assy, Fuel Tank, No.1 Lh
77631	77631-47010	Protector, Fuel Tank, Lower Center
77651	77651-47010	Cushion, Fuel Tank, No.1
77651	77652-30070	Cushion, Fuel Tank, No.1
77652	77652-12100	Cushion, Fuel Tank, No.1
77653	77653-47010	Cushion, Fuel Tank, No.3
77653	77653-47011	Cushion, Fuel Tank, No.3
77681	77681-32060	Seat, Fuel Tank Band, Rh
77725	77725-33010	Cushion, Fuel Filter, No.1
77726	77726-33010	Cushion, Fuel Filter, No.2
77740	77740-47010	Canister Assy, Charcoal
77740	23829-21010	Hose, Fuel, No.1(For Charcoal Canister)
77740	95333-06060	Hose, Fuel
77785	77785-33010	Harness, Fuel Pump
77795	77795-47010	Hose, Charcoal Canister Outlet, No.2
77796	77796-47010	Hose, Charcoal Canister Outlet, No.3
9008030043	90080-30043	New Genuine Part
9011906228	90119-06228	New Genuine Part
9011906228	91621-40616	Step Cover Bolt
9011906347	90119-06347	New Genuine Part
9011906351	90119-06351	New Genuine Part
9011906398	90119-06398	BOLT WWASHER
9011910252	90119-10252	BOLT
9011910700	90119-10700	New Genuine Part
9015950343	90159-50343	SCREW, W-WASHER
9017906178	90179-06178	Nut (For Rear Wiper Arm Setting)
9026903067	90269-03067	RIVET
9026906017	90269-06017	RIVET
9046022001	90460-22001	CLAMP
9046037003	90460-37003	Clamp, Fuel Hose
9046400504	90464-00504	New Genuine Part
9046400745	90464-00745	Clamp, Fuel Tube, No.4
9046707168	90467-07168	Clip(For Rear Floor Finish Plate)
9046707168	90467-07168-C1	Clip(For Rear Floor Finish Plate)
9046912002	90469-12002	Clamp Or Clip(For Radiator Reserve Tank Hose No.3)
9046912014	90469-12014	Clamp Or Clip(For Radiator Reserve Tank Hose)
9095901413	90959-01413	New Genuine Part
9163160818	91631-60818	New Genuine Part
9163160818	91631-B0818	BOLTWWASHER
9613241000	96132-41000	Clip, No.1(For Idle-Up Hose)
9613241100	96132-41100	Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100	96132-51100	Clip (For Hose)
9671319008	96713-19008	New Genuine Part

OEM	Part name	Category
23829-21010	Hose, Fuel, No.1(For Charcoal Canister)	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77001-47020	Tank Assy, Fuel	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77001-47060	Tank Assy, Fuel	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77024-47010	Plate Sub-Assy, Fuel Suction	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77035-47010	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77035-47011	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77168-12240	Plate, Fuel Tank Vent Tube Set	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77168-33050	Plate, Fuel Tank Vent Tube Set	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77169-33020	Gasket, Fuel Pump Bracket	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77174-33010	Support, Fuel Suction, No.1	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77175-47010	Support, Fuel Suction, No.2	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77179-33010	Gasket, Fuel Tank Evap/vent Tube	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77201-47020	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77209-47010	Tube Sub-Assy, Fuel Pump	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77213-47010	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77213-47020	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77216-47010	Support, Fuel Tank Filler Pipe, No.1	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77216-47020	Support, Fuel Tank Filler Pipe, No.1	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77217-47010	Support, Fuel Tank Filler Pipe, No.2	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77218-47010	Support, Fuel Tank Filler Pipe, No.3	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77218-47020	Support, Fuel Tank Filler Pipe, No.3	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77219-32030	Cover, Fuel Tank Filler Pipe	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77219-44010	Cover, Fuel Tank Filler Pipe	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77241-33011	Clip, Tube Joint	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77246-47010	Support, Fuel Main Tube	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77246-47020	Support, Fuel Main Tube	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77251-47010	Tube, Fuel Main	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77261-47010	Tube, Fuel Tank To Canister	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77277-47010	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77278-47010	Protector, Fuel Tank Filler Pipe, No.2	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77285-10020	Clamp, Fuel Tube W/grommet, No.1	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77286-47010	Clamp, Fuel Tube W/grommet, No.2	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77289-47010	Clamp, Fuel Tube W/grommet, No.1	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77291-47010	Shield, Fuel Tank Filler Pipe	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77295-22110	Clamp, Fuel Tube W/grommet, No.1	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77295-42010	Clamp, Fuel Tube W/grommet, No.1	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77310-48010	Cap Assy, Fuel Tank	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77316-16010	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77340-47010	Valve Assy, Fuel Cut Off W/tube	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77350-47010	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77360-22020	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77371-47010	Bracket, Fuel Filler Opening Lid Lock	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77377-12050	Bracket, Fuel Lid Lock Control	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77380-47010	Valve Assy, Fuel Cut Off	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77391-12020	Ring, Fuel Inlet Box	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77414-47010	Support, Fuel Tube Grommet, No.4	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77601-47010	Band Sub-Assy, Fuel Tank, No.1 Rh	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77602-47010	Band Sub-Assy, Fuel Tank, No.1 Lh	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77631-47010	Protector, Fuel Tank, Lower Center	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77651-47010	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77652-12100	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77652-30070	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77653-47010	Cushion, Fuel Tank, No.3	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77653-47011	Cushion, Fuel Tank, No.3	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77681-32060	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77725-33010	Cushion, Fuel Filter, No.1	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77726-33010	Cushion, Fuel Filter, No.2	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77740-47010	Canister Assy, Charcoal	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77785-33010	Harness, Fuel Pump	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77795-47010	Hose, Charcoal Canister Outlet, No.2	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
77796-47010	Hose, Charcoal Canister Outlet, No.3	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
90080-30043	New Genuine Part	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
90119-06228	New Genuine Part	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
90119-06347	New Genuine Part	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
90119-06351	New Genuine Part	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
90119-06398	BOLT WWASHER	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
90119-10252	BOLT	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
90119-10700	New Genuine Part	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
90159-50343	SCREW, W-WASHER	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
90179-06178	Nut (For Rear Wiper Arm Setting)	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
90269-03067	RIVET	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
90269-06017	RIVET	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
90460-22001	CLAMP	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
90460-37003	Clamp, Fuel Hose	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
90464-00504	New Genuine Part	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
90464-00745	Clamp, Fuel Tube, No.4	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
90467-07168	Clip(For Rear Floor Finish Plate)	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
90467-07168-C1	Clip(For Rear Floor Finish Plate)	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
90469-12002	Clamp Or Clip(For Radiator Reserve Tank Hose No.3)	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
90469-12014	Clamp Or Clip(For Radiator Reserve Tank Hose)	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
90959-01413	New Genuine Part	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
91621-40616	Step Cover Bolt	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
91631-60818	New Genuine Part	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
91631-B0818	BOLTWWASHER	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
95313-13020	Hose, Fuel, No.1 (For Breather Tube)	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
95333-06060	Hose, Fuel	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
96132-41000	Clip, No.1(For Idle-Up Hose)	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
96132-41100	Clamp Or Clip(For Radiator Reserve Tank Hose)	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))
96713-19008	New Genuine Part	Fuel Tank & Tube ([12.1997 - 05.2000] (9712-0005))

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 134
Collected: 2026-08-02
