Search › Model › NHW10

NHW10

Toyota PRIUS · 1997 · 2,815 parts · 134 categories

2,815 items

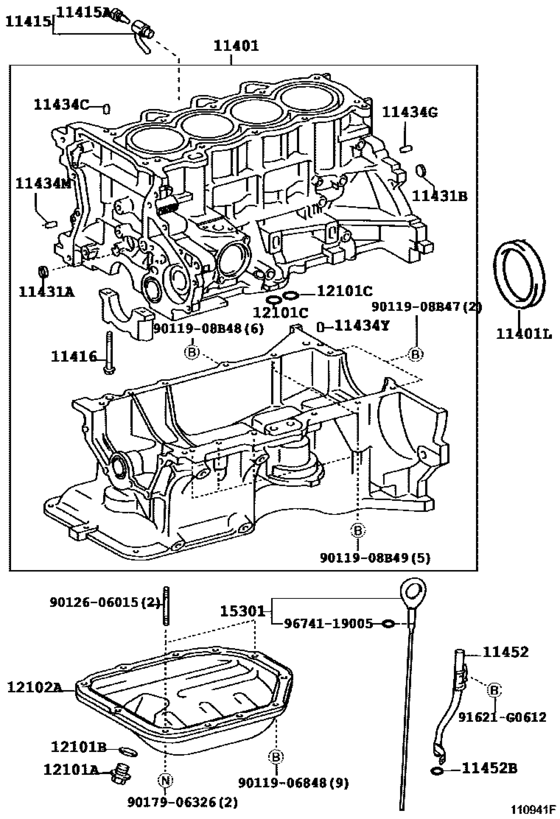

Cylinder Block ([12.1997 - 05.2000] (9712-0005)) 27

#	OEM	Part name
11401	11410-29026	Block Sub-Assy, Cylinder
11401	90311-75013	Seal, Engine Rear Oil
11415	90910-09107	Cock Sub-Assy, Water Drain(For Cylinder Block)
11415	90910-09087	Plug, Water Drain Cock(For Cylinder Block)
11416	90910-02125	Bolt(For Crankshaft Bearing Cap Set)
11431	96411-41800	Plug, Tight, No.1
11434	90250-08120	Pin, Straight, No.1
11434	90250-10113	Pin, Straight(For Timing Gear Cover Set)
11434	90250-10030	Pin, Straight(For Clutch Housing Set)
11452	11452-21020	Guide, Oil Level Gage
11452	11452-21021	Guide, Oil Level Gage
11452	96721-19010	Ring, O(For Oil Level Gage Guide)
12101	90341-12026	Plug, Drain
12101	90341-12012	Plug(For Oil Pan Drain)
12101	90430-12031	Gasket (For Oil Pan Drain Plug)
12101	96721-24020	O-Ring
12102	12102-21010	Pan Sub-Assy, Oil, No.2
15301	15301-21020	Gage Sub-Assy, Oil Level
91621	91621-G0612	New Genuine Part
9011908	90119-08B47	New Genuine Part
9011908	90119-08B48	New Genuine Part
9011908	90119-08B49	BOLT WWASHER
9011906848	90119-06848	BOLT WWASHER
9012606015	90126-06015	Bolt, Stud(For Oil Pan)
9017906326	90179-06326	NUT W-WASHER
9017906326	90182-A0010	New Genuine Part
9674119005	96741-19005	O-Ring (For Oil Level Gage)

OEM	Part name	Category
11410-29026	Block Sub-Assy, Cylinder	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
11452-21020	Guide, Oil Level Gage	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
11452-21021	Guide, Oil Level Gage	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
12102-21010	Pan Sub-Assy, Oil, No.2	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
15301-21020	Gage Sub-Assy, Oil Level	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
90119-06848	BOLT WWASHER	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
90119-08B47	New Genuine Part	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
90119-08B48	New Genuine Part	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
90119-08B49	BOLT WWASHER	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
90126-06015	Bolt, Stud(For Oil Pan)	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
90179-06326	NUT W-WASHER	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
90182-A0010	New Genuine Part	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
90250-08120	Pin, Straight, No.1	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
90250-10030	Pin, Straight(For Clutch Housing Set)	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
90250-10113	Pin, Straight(For Timing Gear Cover Set)	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
90311-75013	Seal, Engine Rear Oil	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
90341-12012	Plug(For Oil Pan Drain)	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
90341-12026	Plug, Drain	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
90430-12031	Gasket (For Oil Pan Drain Plug)	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
90910-02125	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
90910-09087	Plug, Water Drain Cock(For Cylinder Block)	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
90910-09107	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
91621-G0612	New Genuine Part	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
96411-41800	Plug, Tight, No.1	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
96721-19010	Ring, O(For Oil Level Gage Guide)	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
96721-24020	O-Ring	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
96741-19005	O-Ring (For Oil Level Gage)	Cylinder Block ([12.1997 - 05.2000] (9712-0005))
