Search › Model › NHW10
NHW10

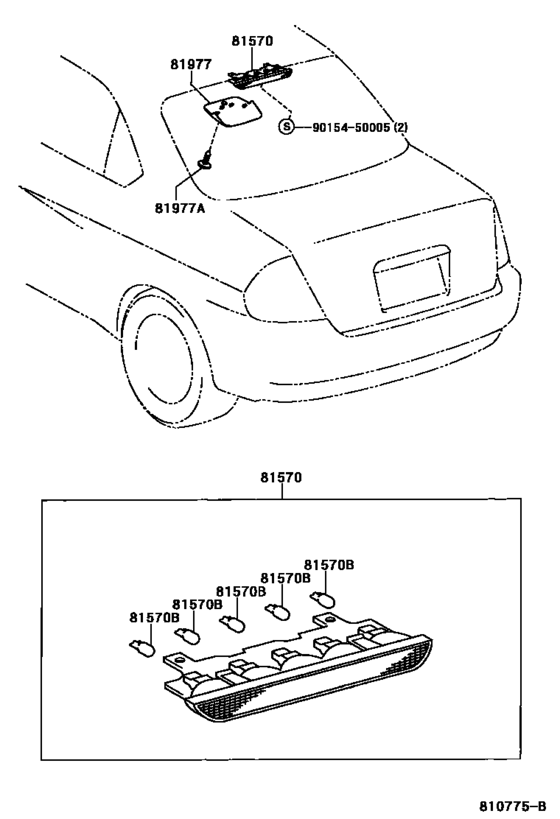

Center Stop Lamp ([12.1997 - ] (9712- )) 6
| # | OEM | Part name |
|---|---|---|
| 81570 | 81570-47010 | Lamp Assy, Center Stop |
| 81570 | 99132-12050 | Bulb (12V 5W) |
| 81570 | 90080-81053 | Bulb(For Clearance Lamp) |
| 81977 | 81977-47010-B0 | Cover, Center Stop Lamp |
| 81977 | 90467-05022-B3 | Clip (For Center Stop Lamp) |
| 9015450005 | 90154-50005 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 81570-47010 | Lamp Assy, Center Stop | Center Stop Lamp ([12.1997 - ] (9712- )) |
| 81977-47010-B0 | Cover, Center Stop Lamp | Center Stop Lamp ([12.1997 - ] (9712- )) |
| 90080-81053 | Bulb(For Clearance Lamp) | Center Stop Lamp ([12.1997 - ] (9712- )) |
| 90154-50005 | SCREW | Center Stop Lamp ([12.1997 - ] (9712- )) |
| 90467-05022-B3 | Clip (For Center Stop Lamp) | Center Stop Lamp ([12.1997 - ] (9712- )) |
| 99132-12050 | Bulb (12V 5W) | Center Stop Lamp ([12.1997 - ] (9712- )) |
